XCMG official 53m fire fighting truck YT53M1 China aerial ladder fire truck with Benz chassis price
Summary
- Model Number:YT53M1
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:12200*4000*2500mm
- Max Work Height:53m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:< 3000L
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:6x4
- Certification:CE/ISO9001
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Other
- Rated Load:270kg
- Working lift speed:1.2m/s
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
53m fire fighting truck YT53M1 China aerial ladder fire
truck with Benz chassis.

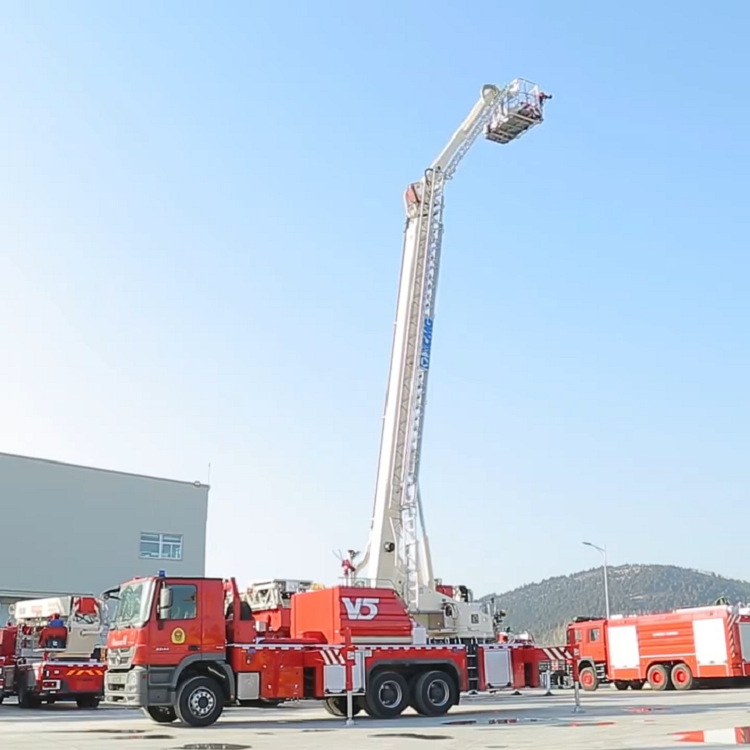

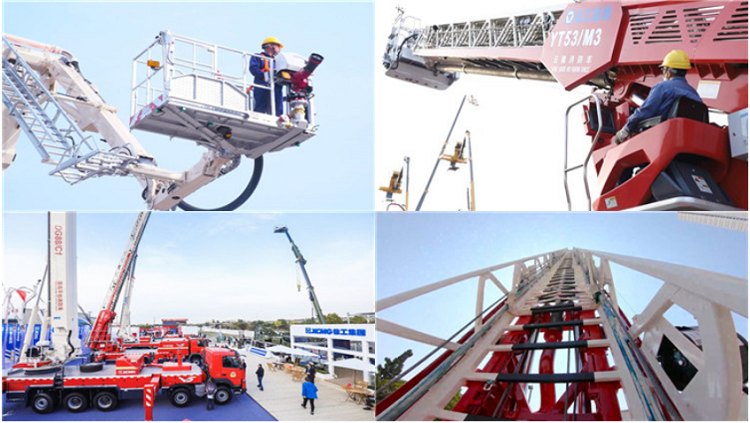

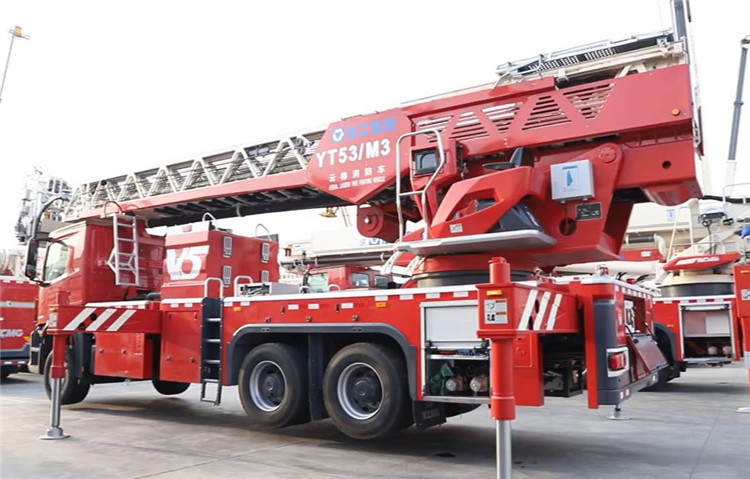

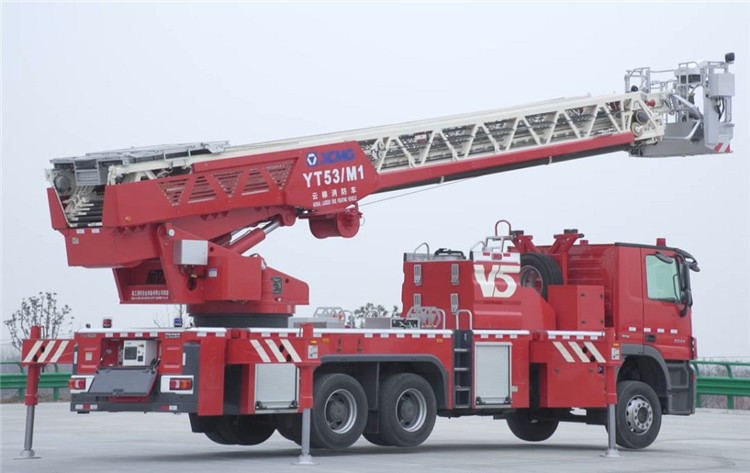

XCMG YT53M1 aerial ladder fire truck is a 53m fire truck
based on mature technology of water tower fire truck, it is urban fire control
main battle vehicle integrating the functions of rescue in the air and
fire-fighting.
Advantages and highlights:
1. Advanced performance and large loading capacity, with
sufficient margin of power.
2. Based on distributed control technology of PLC and CAN
bus, has leading technology.

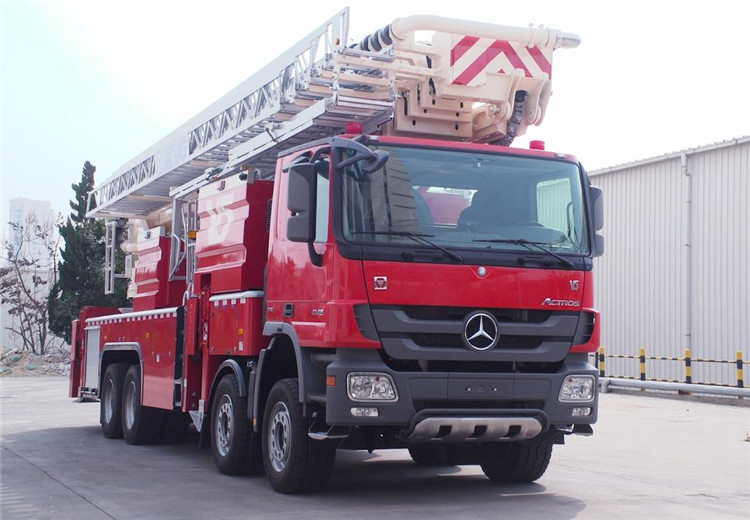

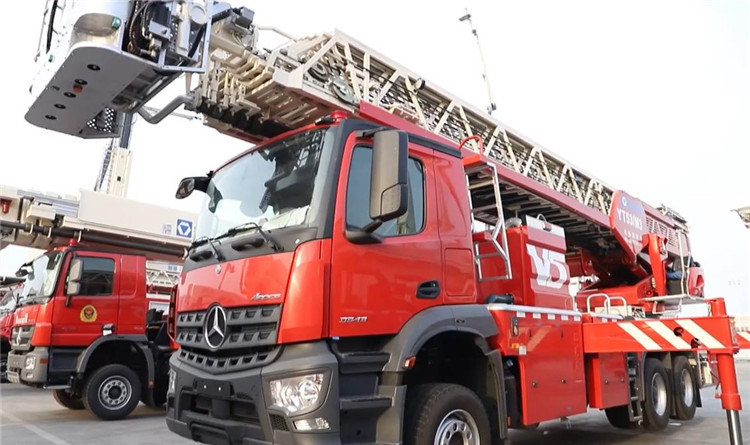

3.Adopts the German Mercedes-Benz Actros 3344E5/6×4
chassis.
4.With features of flexible, strong adaptive capacity of
site, quick rescue speed and high technical security, it is widely used for
fire-fighting and rescue operation of mid-rise buildings.
|
Outline dimension (L×W×H) |
12200×2500×4000mm |
|
|
Max. total mass |
31000kg（±5%） |
|
|
Max. travel speed |
≥100km/h |
|
|
Min. turning diameter |
≤20m |
|
|
Approach angle |
≥15° |
|
|
Departure angle |
≥9° |
|
|
Max. grade ability |
≥25% |
|
|
Outrigger span |
Longitudinal span |
5750mm |
|
Lateral span |
5200mm |
|
|
Load capacity of working platform |
270kg |
|
|
Rated load of lifting bucket |
180kg |
|
|
Max. working height |
53m |
|
|
Rated working radius |
18m |
|
|
Boom elevating range |
-12°～﹢75° |
|
|
Slewing range |
360°
full-rotation |
|
|
Outrigger unfolding time |
≤30s |
|
|
Time for boom raising to rated height and rotating 90° |
≤120s |
|
|
Max. slewing speed of turntable |
0.5~1.5r/min |
|
|
Tank volume |
1500kg |
|
|
Fire pump |
Rated flow |
Hill RSD100 |
|
Rated pressure |
100 L/s |
|
|
Model |
1.0 MPa |
|
|
Fire monitor |
Rated flow |
Elkhart
PSKD80-7200EXM |
|
Rated pressure |
80L/s |
|
|
Reach |
1.0Mpa |
|
|
Rated flow |
70m |
|
