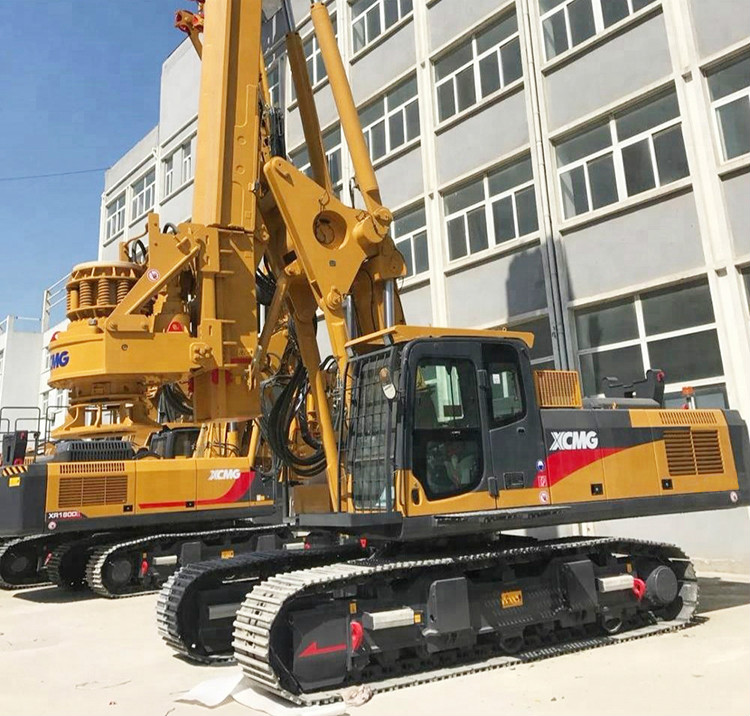

XCMG Official 132m Hydraulic Rotary Drilling Rig XR550D China Portable Drilling Rig for Sale
![](/app/topc/statics/images/close.png)
![XCMG Official 132m Hydraulic Rotary Drilling Rig XR550D China Portable Drilling Rig for Sale](/images/store/357636/item/XR320D-3.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Weight:180t
- Model Number:XR550D
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Rotary Drilling Rigs
Specifications
- weight:180000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 180ton Hydraulic Rotary Drilling Rig Machine XR550D.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machines, adopting advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
Performance Characteristics:
* It adopts the H-style dedicated hydraulic retractable crawler chassis and large-diameter slewing bearing to provide extraordinary stability and transport convenience.
* The main hydraulic system adopts the negative flow control, which can increase the system efficiency and make the most of the engine power. It adopts a three-in-one cooling system that is tightly packed and has a high-efficiency in cooling.
* It adopts the imported Cummins turbo-supercharged engine with three gears. It complies with the Euro III emission standard, in addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.
* It adopts the luffing mechanism of large triangle form to ensure the stability of the construction of big holes and deep piles in hard formation.
* It adopts the single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.
* Normal mode and entering-rock mode of the unit head is available for operation in soil and rock to improve the construction efficiency.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 3500 | |
Max. drilling depth | m | 132 | |
Allowable luffing scope (from center of drill rod to slewing center) | mm | 4950~5250 | |
Drilling rig dimension in working condition (L × W × H) | mm | 12790×6000×33324 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 12790×6000×33324 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 180 | |
Engine | Model | CUMMINS QSX15-C600 | |
Rated power/speed | kW | 447/(2100r/min) | |
Max. working pressure of hydraulic system | Mpa | 35 | |
Rotary drive | Max. torque | kN •m | 528 |
Rotational speed | r/min | 6~20 | |
Crowd cylinder | Max. Pushing force | kN | 300 |
Max. Pulling force | kN | 400 | |
Max.stroke | mm | 6000 | |
Crowd winch | Max. Pushing force | kN | 400 |
Max. Pulling force | kN | 520 | |
Max.stroke | mm | 16000 | |
Main winch | Max.pulling force | kN | 600 |
Max. single-rope speed | m/min | 60 | |
Diameter of the steel wire rope | mm | 44 | |
Rotary table slewing angle | ° | 360 | |
Crawler | Width of crawler plate | mm | 1000 |
External width of crawler (min.-max.) | mm | 4550~6000 | |
Center distance between two longitudinal wheels of crawler | mm | 6870 | |
Average ground pressure | kPa | 130 |
