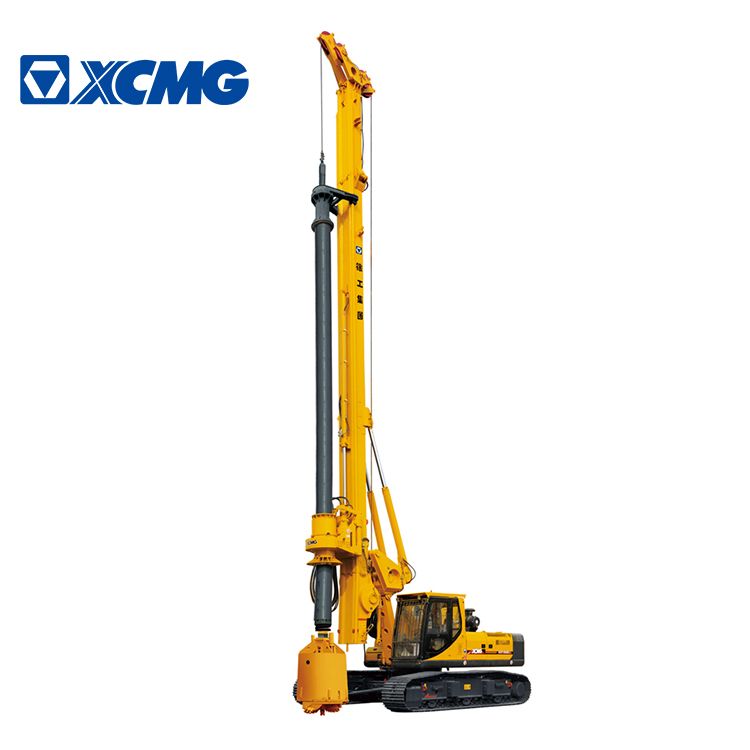

XCMG XR150D China New Hydraulic Crawler Rotary Drilling Rig Price
![](/app/topc/statics/images/close.png)
![XCMG XR150D China New Hydraulic Crawler Rotary Drilling Rig Price](http://www.machmall.com/images/store/357636/item/XR150D (1).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):13610*2960*3040mm
- Weight:48000kg
- Power(W):133kw
- Voltage:220V/380V
- Model Number:XR150D
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- weight:48000.000kg
- Condition:New
- Moving Type:Other
- Max. drilling diameter:800mm
- Max. drilling depth:20m
- Max. extraction force:400kN
- Max. output torque:150kN.m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XR150D China New Hydraulic Crawler Rotary Drilling Rig.
XR Series Crawler Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
Performance Characteristics:
1. It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2. It adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3. With the hydraulic pressure system adopted threshold power control and negative flow control, the system acquired high efficiency and higher energy conservation.
4. Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is settled in main winding, single rope to make deep inspection more accurate.
5. The whole machine design meets the requirements of the CE directive, safety guarantee, construction safer.
Model |
Unit |
XR150D |
|
Engine |
Rated power |
kW |
133 |
Power unit |
Max. output torque |
kN.m |
150 |
Rotate speed |
r/min |
6~28 |
|
Max. drilling diameter |
mm |
800 |
|
Max. drilling depth |
m |
20 |
|
Max. extraction force |
kN |
400 |
|
Main winch |
Max. winch speed |
m/min |
75 |
Diameter of steel rope |
mm |
28 |
|
Vice winch |
Max. elevation force |
kN |
50 |
Max. winch speed |
m/min |
60 |
|
Drilling mast Inclination |
Lateral |
° |
3 |
Chassis |
Max. walking speed |
km/h |
3.2 |
Max gradeability |
% |
40 |
|
Min. ground clearance |
mm |
352 |
|
Track shoe width |
mm |
800 |
|
Track shoe's largest overall width |
mm |
2960-4100 |
|
Hydraulic system |
Working pressure |
Mpa |
32 |
Machine working quality/Transporation quality |
t |
48/43 |
|
Boundary dimension |
Working condition |
mm |
8620*4100*22845 |
L*W*H |
Transporation condition |
mm |
13610*2960*3040 |
