XCMG 2 ton road roller compactor XMR153 China new hydraulic small mini light road roller price
Summary
- Weight:1680kg
- Power(W):17.6kW
- Model Number:XMR153
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:10.5km/h
- Type:Double Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:1680.000kg
- Condition:New
- Moving Type:Other
- Exciting Force:17KN
- Minimum ground clearance:235mm
- Wheel base:1550mm
- Vibrational frequency:65Hz
- Minimum turning radius:3050mm
- Drum width:900
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
2 ton road roller compactor XMR153 China new hydraulic
small mini light road roller.

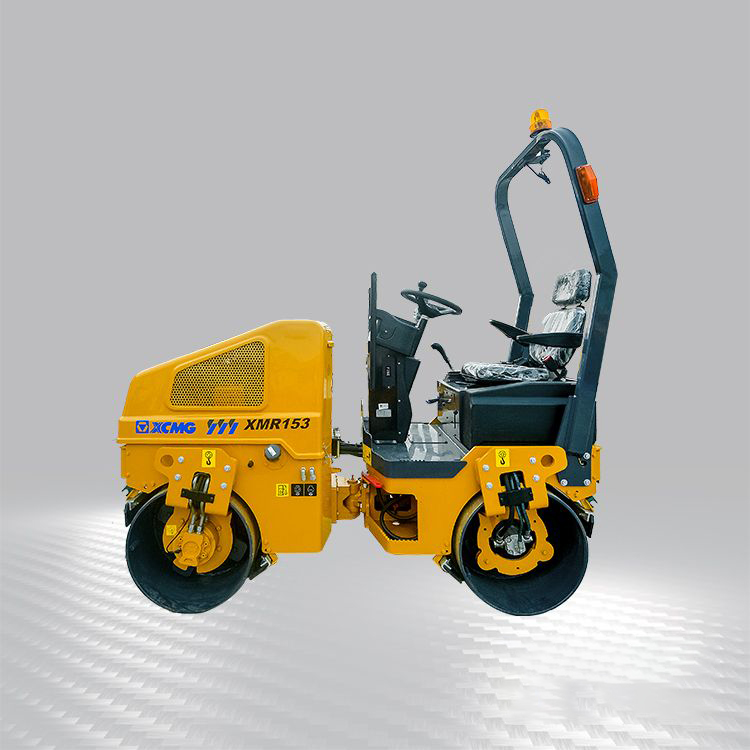

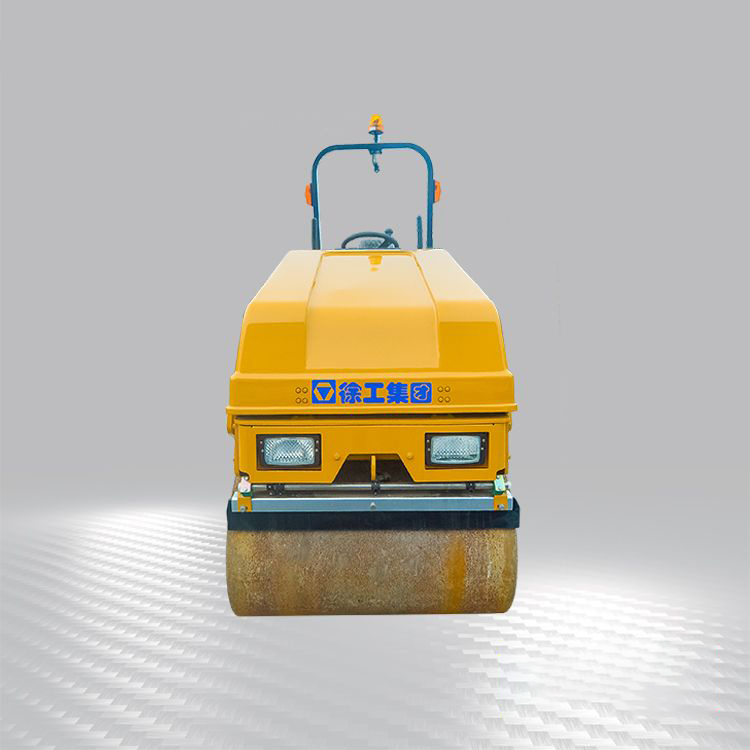

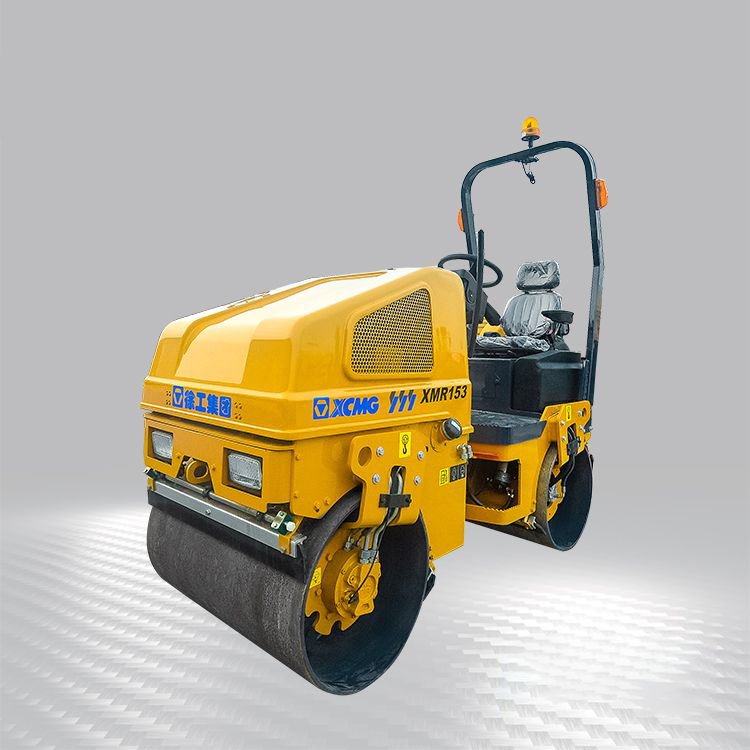

XCMG XMR153 is a light vibratory road roller with
operating weight of 1.68 tons. This machine is suitable for surface and edge
compaction construction for asphalt engineering, cement engineering and So on.
Performance Characteristics:
* Closed hydraulic drive system is adopted to realize
stepless speed change.
* Brake system uses the neutral position braking,
ensuring the safety of the product.
* The vibration system can realize the simultaneous
vibration and independent vibration of the rear and front drum, and meets the
different working conditions.
* High frequency vibration and excitation force design,
high working efficiency, good compaction effect.
|
Item |
Unit |
XMR153 |
|
Operating mass |
kg |
1680 |
|
Static linear load (front drum/rear drum) |
N/cm |
92/92 |
|
Range of speed |
km/h |
0～10.5 |
|
Theoretical gradeability |
% |
30 |
|
Minimum turning radius |
mm |
3050 |
|
Minimum ground clearance |
mm |
235 |
|
Wheel base |
mm |
1550 |
|
Steering angle |
° |
±34 |
|
Swing angle |
° |
±7 |
|
Vibrational frequency |
Hz |
65 |
|
Exciting force |
kN |
17 |
|
Drum diameter |
mm |
582 |
|
Drum width |
mm |
900 |
|
Engine rated power |
kW |
17.6 |
|
Engine rated speed |
r/min |
2500 |
