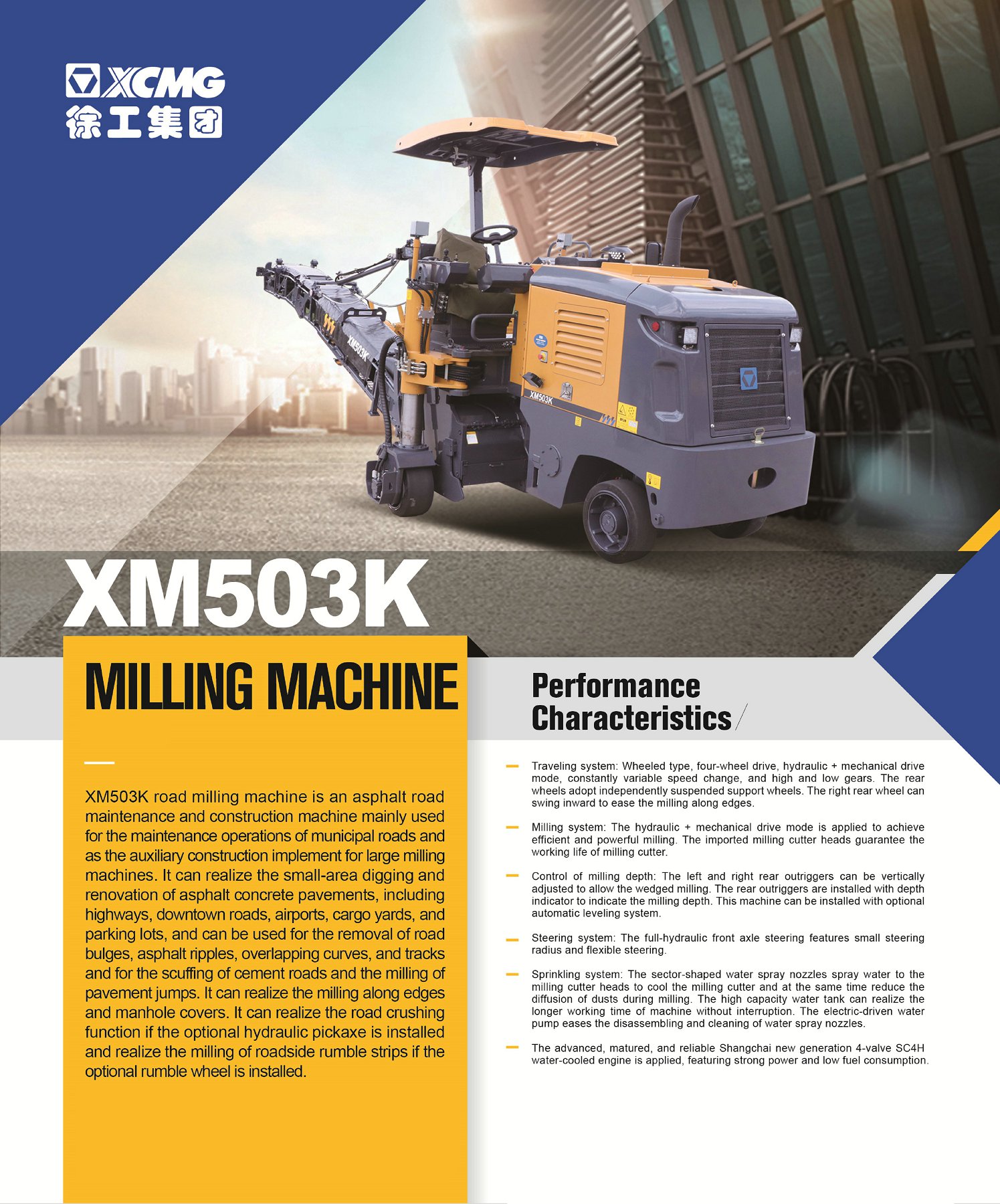

XCMG Official XM503K Pavement Milling Machine for sale
Summary
- Dimension(L*W*H):6276 x 1888 x 2530mm
- Weight:7550kg
- Power(W):103kW
- Model Number:XM503K
- Brand Name:XCMG
- Place of Origin:China
- Milling width (mm):500mm
- Milling depth (mm):210mm
Specifications
- Weight:7550.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
|
Item |
Unit |
XM503K |
|
Milling width |
mm |
500 |
|
Maximum milling depth |
mm |
210 |
|
Cutter tip pitch |
mm |
15 |
|
Amount of tools |
(piece) |
60 |
|
Diameter of rotor(Including cutter) |
mm |
750 |
|
Engine model |
SC4H-C140 |
|
|
Engine manufacturer |
Shangchai |
|
|
Rated speed |
rpm |
2200 |
|
Rated power |
Kw |
103 |
|
Displacement |
4.3L |
|
|
Fuel consumption under rated power |
l/h |
26.2 |
|
Composite fuel consumption |
l/h |
10.5 |
|
Emission standard |
国III |
|
|
Fuel tank |
L |
China-III |
|
Water tank |
L |
180 |
|
Working speed |
m/min |
330 |
|
Traveling speed |
Km/h |
0-30.7 |
|
Theoretical gradeability |
% |
0-7.5 |
|
Maximum ground clearance of milling drum |
mm |
60 |
|
Front tire specification |
mm |
210 |
|
Rear tire specification |
mm |
559 x 178 |
|
Unloading belt width |
mm |
559 x 254 |
|
Theoretic conveyance capacity of unloading
belt |
m3/h |
350 |
|
Maximum unloading height |
mm |
44.4 |
|
Theoretic unloading capacity |
m3/h |
3800 |
|
Overall dimensions of machine |
mm |
80 |
|
Transport dimensions of machine |
mm |
8185 x 1888 x 4080 |
|
Length x Width x Height(Including conveyyor
belt) |
mm |
6276 x 1888 x 2530 |
|
Length x Width x Height(without conveyor
belt) |
mm |
3676 x 1888 x 2530 |
|
Dimensions of belt conveyor(Length x Width
x Height) |
mm |
6000 x 860 x 860 |
|
Gross machine weight |
Kg |
7550 |
|
Operating weight |
Kg |
7950 |
|
Minimum milling radius |
mm |
350 |
|
Maximum ground clearance of milling drum |
mm |
210 |
