XCMG Road Cold Recycling Machine China Asphalt Recycler 2.3m Road Reclaimer XLZ230K Price
Summary
- Rated Power:420kw
- Model Number:XLZ230K
- Place of Origin:Jiangsu, China
- Rated Speed:0-2.4 km/h
- Certification:CE/ISO9001
Specifications
- Weight:34000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

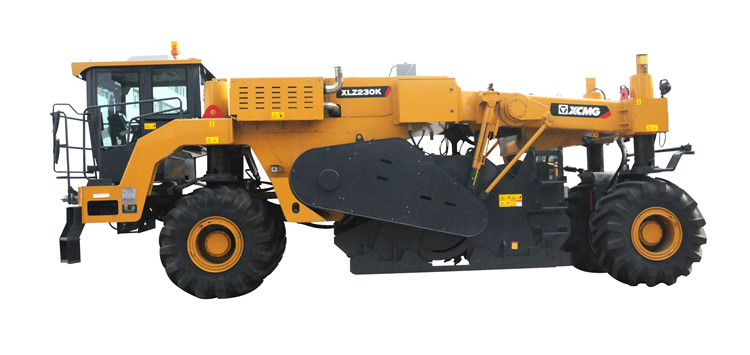

XCMG Road Cold Recycling Machine China Asphalt Recycler 2.3m Road Reclaimer
XLZ230K Price.
XLZ230K road cold recycler is efficient, reliable and
compact. Reasonable layout of tool bits facilitates high milling ability;
Intelligent control of sprinkler system provides easy operation and high
spraying precision; All wheel steering is flexible and easy to operate; The
three-power curve of the engine realizes working in multiple working
conditions, such as heavy load, light load and transitions, effectively
guarantees the efficient operation of the engine, energy saving and
environmental friendly.
* With XCMG's rotor
technology, the XCMG's milling cutters and cutter holders feature reasonable
design and high milling accuracy.
* The milling rotor is driven by high- speed variable
motor and reducer.
* The traveling system includes two speed modes, namely
high speed mode and low. speed mode. The front/rear axles are steering drive
axles (Optional rear steering axle is available ) to realize four wheel
steering and the installed low-pressure wide-base isolated-pattern tires
feature stable operation and high adhesion.
* The sprinkler system includes the sprinkling function.
* The steering system incorporates the crabwalk function.
* The engine includes advanced functions, including
online display, malfunction diagnosis, and malfunction warning. In addition,
the data can' be' more directly read by the installed display.
* Brake system: The pneumatic brake system is applied to
realize the service braking and parking brake functions of the machine.
* The cab is in wide-body structure and is installed with
heating and air conditioning system and the accessories including fan and radio
to realize comfortable operations.
Milling width |
2300 mm |
Maximum milling depth |
450 mm |
Tool spacing |
30×2 mm |
Number of tools |
200/141 |
Milling wheel diameter (with tool) |
1480 mm |
Manufacturer |
MTU |
Cooling method |
water cooling |
Model |
OM502LA.E3A/3 |
Number of cylinders |
8 |
Rated power |
420kw |
Engine speed |
1800 rpm |
Fuel consumption: full load |
90.3 kg/h |
Working speed |
0-2.4 km/h |
Walking speed |
0-10km/h |
Theoretical Gradeability (Work Block) |
50% |
Ground clearance |
350 |
Front axle load |
20000kg |
Rear axle load |
14000kg |
Shipping weight |
34000kg |
Fuel tank |
1200L |
Hydraulic tank |
400L |
Water tank |
400L |
Electrical system |
24V |
Machinery (length×width×height) |
9390×2995×3484mm |
