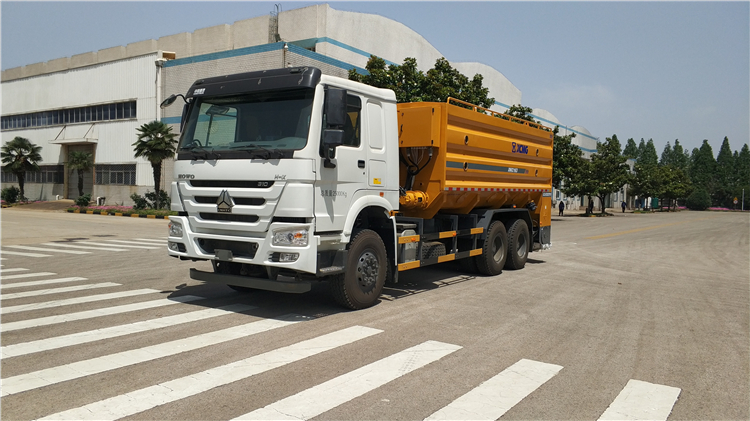

XCMG official cement powder binder spreader truck XKC163 with HOWO chassis
Specifications
- Weight:25000.000kg
- Powder Silo volume:16m3
- Min. Working speed:2.5km/h
- Engine power:228/1900kW/(r/min)
- Overall dimension(length× width× height):9550×2500×3360mm
- Fuel tank:400L
- Total mass:25000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
cement powder binder spreader truck XKC163 with HOWO
chassis.
XCMG XKC163 powder binder spreader is mainly suitable for
distributing powder materials such as cement, lime and fly ash, and used for
cement spraying for highway cold regeneration construction, stabilized soil and
a variety of adhesives spraying for roadbed, and can also be used for powder
material spraying for other working conditions.
Powder binder spreader is key equipment for highway
cold-in-place regeneration construction it is special equipment for stabilized
soil construction, widely used in highway and municipal construction.
With characteristics of high efficiency, environmental
protection, simple operation, good construction quality and high reliability.
Main performance and characteristics:
1.Use Sinotruk HOWO ZZ1257N4347E1 chassis engine,
powerful, high travel speed;
2.The performance is stable for low-speed construction;
3.The material silo is equipped with a pressure reducing
beam, and the resistance of screw feeding is low;
4.Variable pitch screw feeding, strong conveying capacity
and high reliability;
5.The rear hopper is equipped with a feeding roller to
ensure the filling efficiency of the metering roller.
|
Item |
Unit |
Parameter |
|
Product model |
- |
XZJ5252TFS （XKC163） |
|
Working
performance parameter |
||
|
Powder Silo volume |
m3 |
16 |
|
Spreading width |
mm |
400～ 2400 |
|
Spreading density |
kg/m2 |
5～ 40 |
|
Spreading
precision |
% |
±5 |
|
Min. Working speed |
km/h |
2.5 |
|
Chassis
performance parameter |
||
|
Type |
- |
HOWO ZZ1257N4347E1（China- Ⅴ） |
|
Engine type |
- |
D10.31 -50 |
|
Engine power |
kW/(r/min) |
228 / 1900 |
|
Driving type |
- |
6×4 |
|
Emission standard |
- |
China Stage V |
|
Maximum traveling
speed |
km/h |
80 |
|
Overall dimension parameter |
||
|
Minimum ground
clearance |
mm |
314 |
|
Approach Angle/Departure Angle |
° |
16 / 13 |
|
Overall dimension
(length× width× height) |
mm |
9550×2500×3360 |
|
Mass parameters of whole machine |
||
|
Fuel tank |
L |
400 |
|
Curb weight |
kg |
17500 |
|
Total mass |
kg |
25000 |
