XCMG official 58m height mobile self-propelled telescopic boom lift XGS58 China man lift for sale
Summary
- Weight:27200kg
- Overall Dimension:19450*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:58m
- Rated Loading Capacity:230kg(unrestricted)/450kg (restricted)
- Lift Mechanism:Telescoping boom lift
- Model Number:XGS58
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:ISO
Specifications
- Weight:27200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

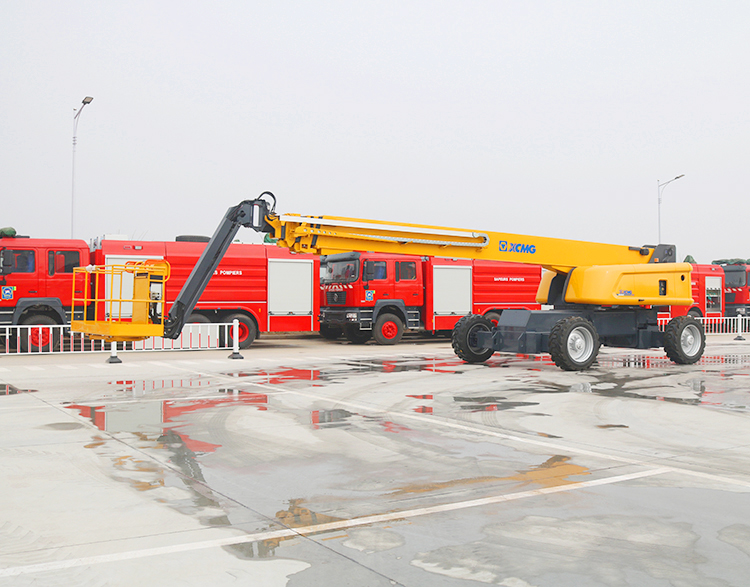

XCMG official 58m height mobile self-propelled telescopic
boom lift XGS58.

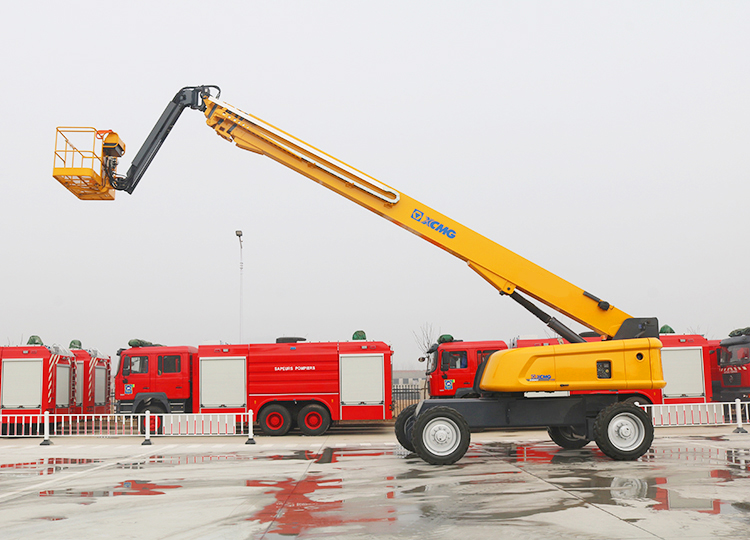

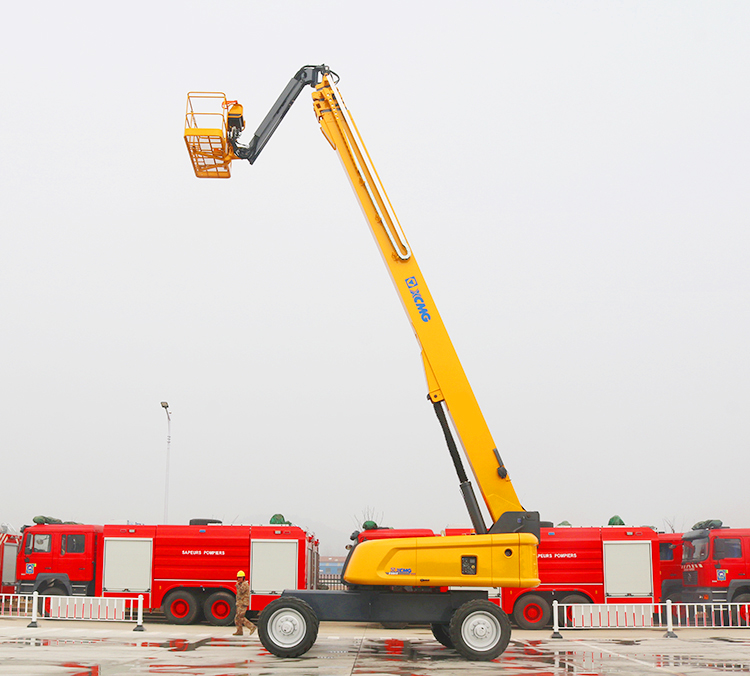

XGS58 self-propelled Telescopic Mobile Elevating Work Platform: platform
height 58.6m, maximum platform carrying capacity 450KG; luffing angle of the
boom is as large as 80° for high and extra-high aerial operation; precise

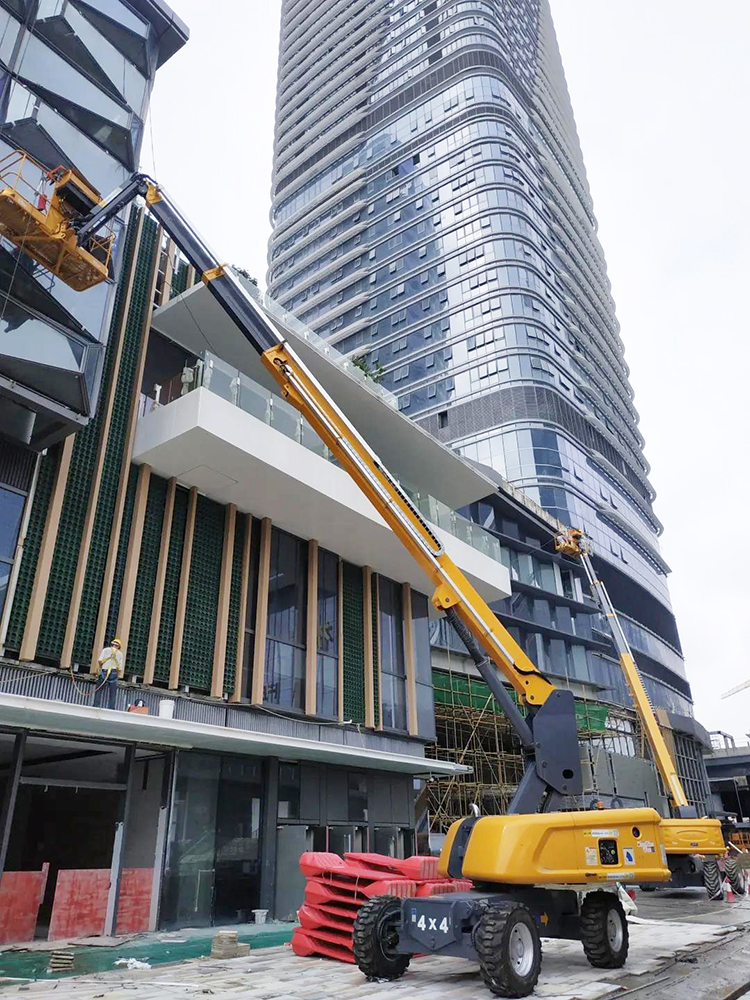

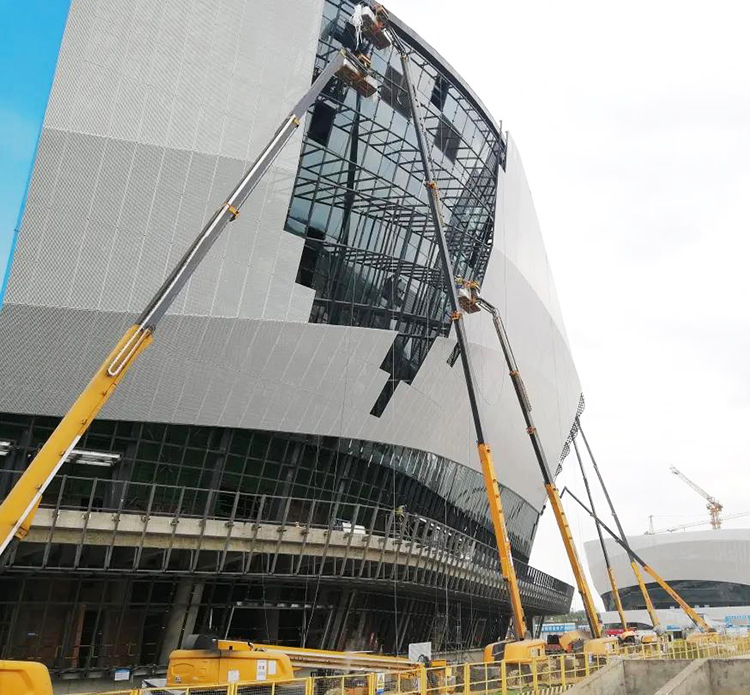

operation, flexible telescopic jibs that cross various complicated application

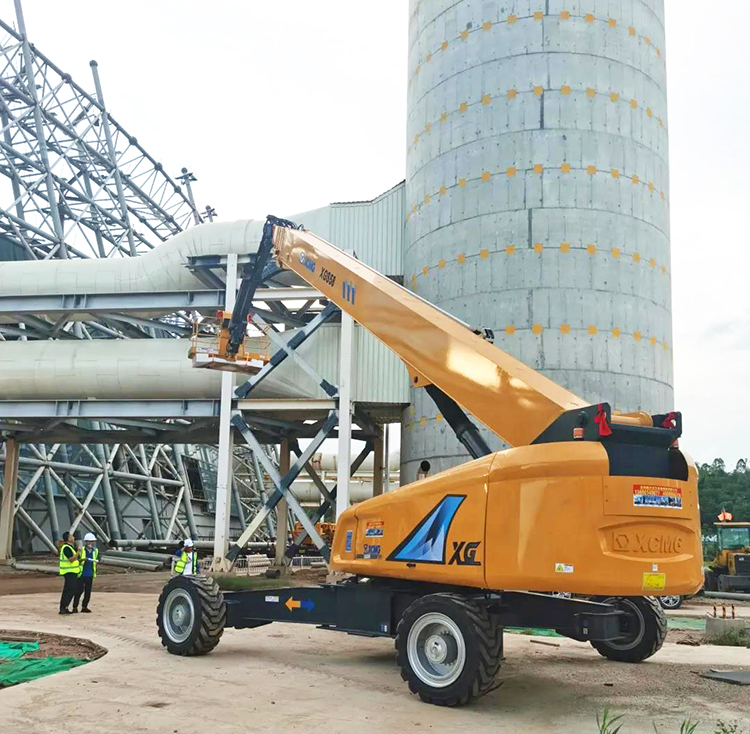

structures, including steel structure, buildings of petrochemical engineering,
power generation and wind power plant, stadium, conference center and theatre.
Advantages & Highlights:
1.360° turning angle and luffing and telescopic straight crank arm ensure
complete operation of surrounding buildings without moving, which improves
operation efficiency greatly.
2.X-shaped swinging axle system and 4WD independent swing; large wheelbase
could be realized for low-altitude or slope traveling; wide span could be
reached for superstructure boom, keeping the support steady.
3.The swinging of crank could shorten the transportation length; crank
locking and monitoring, making the work safer.
4..Customized sheet-type proportional valves have the flow curve design
according to action features, ensuring the excellent micro manipulation.
5.Dual leveling mode: telescopic boom and work platform, improving the
product precision up to within 2.5° and hence making the aerial work safer.
|
Item |
Unit |
Parameter |
|
Overall length (Transport status) |
m |
19.45(14.6) |
|
Overall width (With shaft retracted/extended) |
m |
2.49/5.03 |
|
Overall height |
m |
3.05 |
|
Wheelbase |
m |
5.22/4.59 |
|
Maximum working height |
m |
58.6 |
|
Maximum platform height |
m |
56.6 |
|
Maximum working range |
m |
25.1 |
|
Maximum carrying weight |
kg |
230
(unrestricted)/450 (restricted) |
|
Luffing range of boom |
° |
-1 ~ 80 |
|
Slewing angle of turntable |
° |
360° |
|
Maximum tail swing |
m |
2.32 |
|
Dimension of platform |
m |
2.4×0.9 |
|
Slewing angle of platform |
° |
180 |
|
Overall weight |
kg |
27200 |
|
Maximum traveling speed |
km/h |
4.5 |
|
Minimum turning radius (With axle retracted/extended) |
m |
9.5/6.6
(Four-wheel steering) |
|
Minimum ground clearance |
m |
0.25 |
|
Maximum gradeability |
% |
45 |
|
Specification of tire |
- |
445/50D710 24-ply |
|
Engine model |
- |
Deutz TCD3.6
L4 |
|
Engine rated power |
kW/(r/min) |
74.4/2300 |
