XCMG 8 Ton Small Excavators XE85D Chinese Cheap Crawler Excavator Digger Machine For Sale
![](/app/topc/statics/images/close.png)
![XCMG 8 Ton Small Excavators XE85D Chinese Cheap Crawler Excavator Digger Machine For Sale](http://www.machmall.com/images/store/357636/item/XE85D.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Speed:5.0/2.7km/h
- Max Digging Radius:6245mm
- Maximum Digging Depth:4040mm
- Maximum Digging Height:7150mm
- Bucket capacity:0.35m3
- Operating Weight:8240kg
- Model Number:XE85D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:7750.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

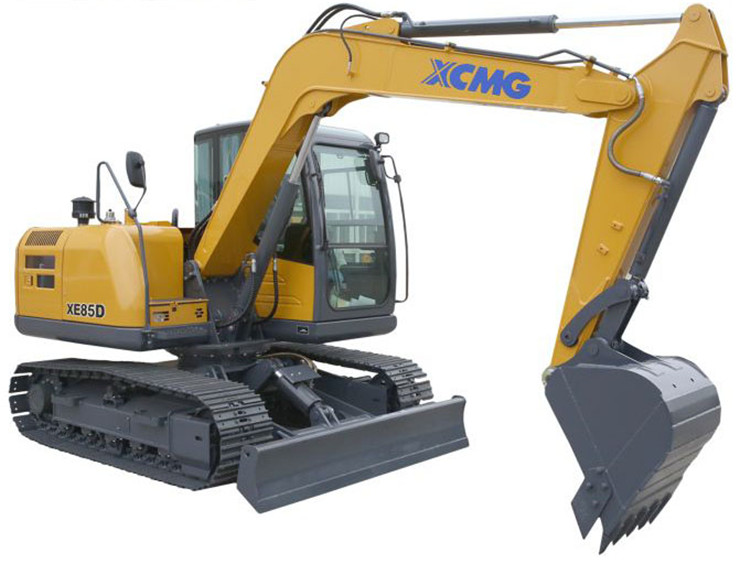

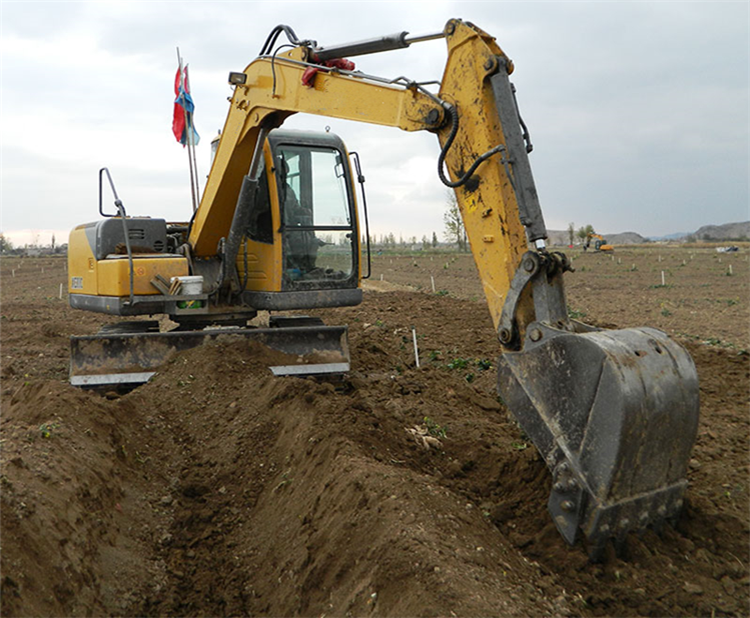

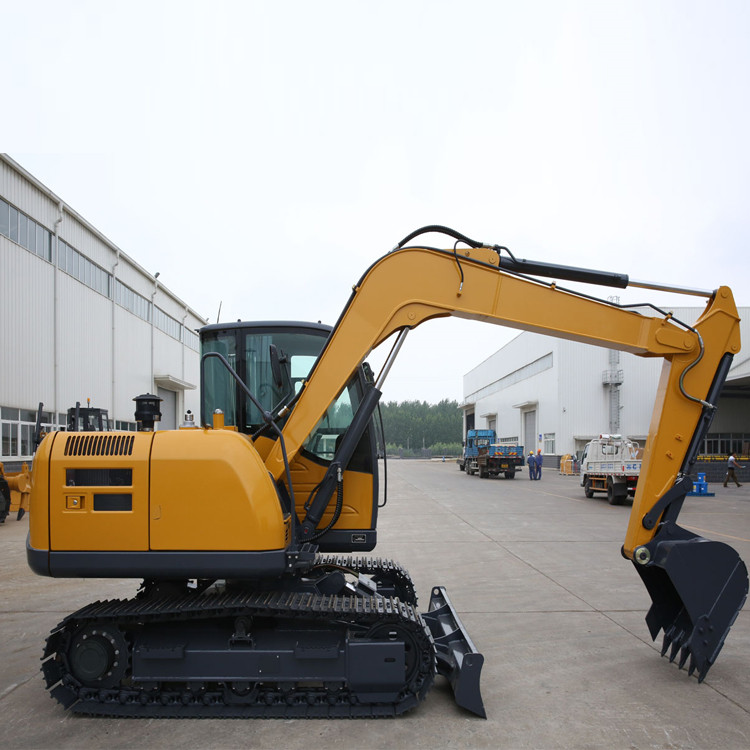

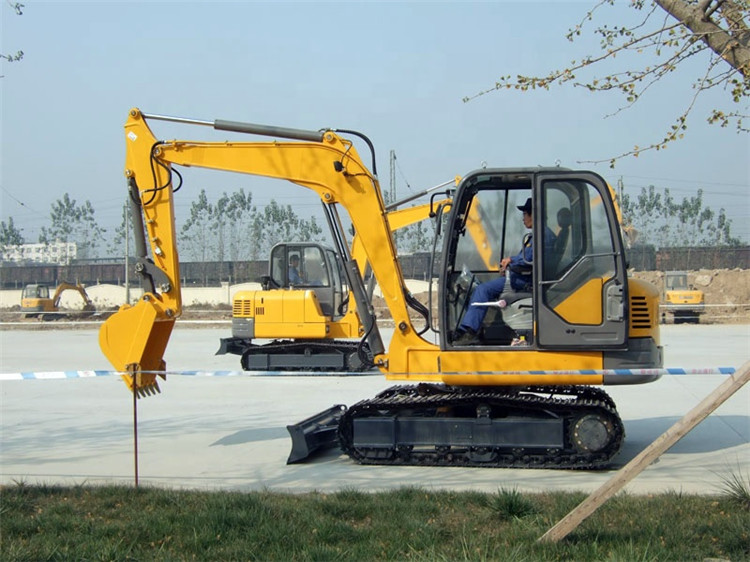

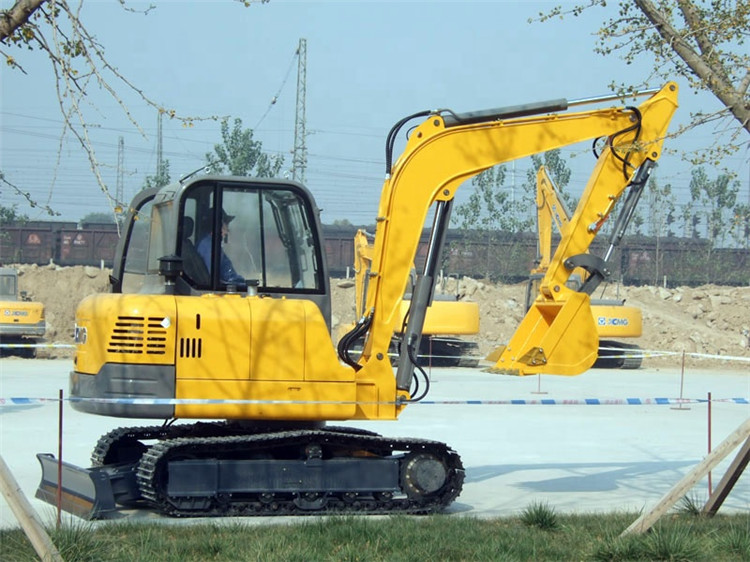

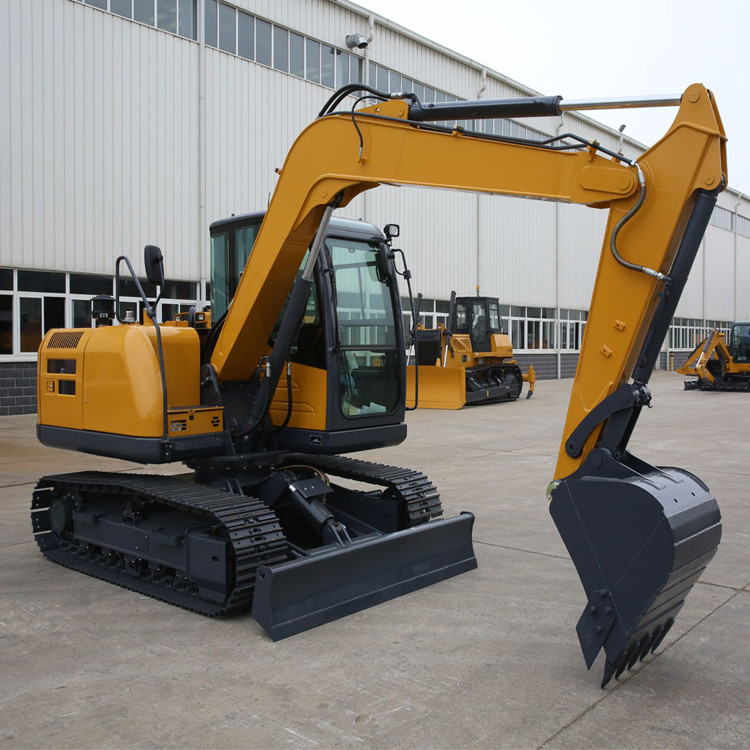

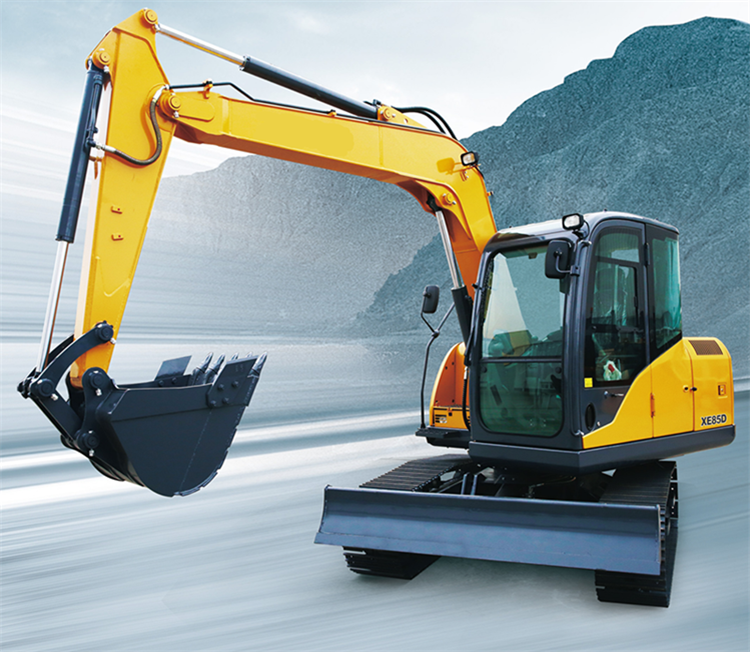

XCMG 8 Ton Small Excavators XE85D Chinese Cheap Crawler Excavator Digger Machine
For Sale.
The
complete machine is mainly used for landscaping, urban construction, pipeline
laying, river dredging and other working conditions. The complete machine
adopts an ISUZU turbocharged engine, featuring low noise and sufficient
low-speed torque reserve. Its load sensitive hydraulic system can have the
complete machine able to provide lower energy consumption, better handling and
easily available fine operation.
The new
type of electric control system adopts a color large-size screen able to offer
complete instrument display. In addition, this machine is also equipped with
the standard function of “automatic idling” able to effectively reduce the fuel
consumption and environmental noise. The newly-reinforced work device,
reinforced chassis and larger-capacity bucket can further satisfy the operation
requirements for working conditions subject to high intensity.
It also
has standard high-power air conditioning, new suspension seat, cup holder,
magazine bag, storage box and other comfortable and humanized configurations.
The full-open side door and rear hood can provide easy access to the points for
daily maintenance and service. The optional rubber tracks, quartering hammers,
hydraulic vibrating tamper, rotary excavating drill, deep ditch-oriented
bucket, quick changers and other auxiliary equipment have significantly
improved its capacity for dealing with all kinds of working conditions.
Sales model |
Unit |
XE85D |
|
Operating weight |
Kg |
8240 |
|
Bucket capacity |
m³ |
0.35 |
|
Engine |
Model |
/ |
4TNV98T-ZCSXG |
No. of cylinders |
/ |
4 |
|
Output power |
kw/rpm |
56.5/2200 |
|
Maximum
torque/speed |
N.m/rpm |
289.4/1650 |
|
Displacement |
L |
3.319 |
|
Main performance |
Travel speed |
km/h |
5.0/2.7 |
Swing speed |
r/min |
11 |
|
Gradeability |
° |
≤35 |
|
Ground pressure |
kPa |
33.5 |
|
Bucket digging
force |
kN |
57 |
|
Arm digging
force |
kN |
38 |
|
Maximum traction |
kN |
68.3 |
|
Hydraulic system |
Rated flow of
main pump |
L/min |
176 |
Main safety
valve pressure |
MPa |
26.5 |
|
Travel system
pressure |
MPa |
26.5 |
|
Rotary system
pressure |
MPa |
18.6 |
|
Pilot system
pressure |
MPa |
3.5 |
|
Oil Capacity |
Fuel tank
capacity |
L |
137 |
Hydraulic tank
capacity |
L |
82 |
|
Engine oil
capacity |
L |
10 |
|
Appearance size |
A Overall length |
mm |
6215 |
B Overall width |
mm |
2342 |
|
C Overall height |
mm |
2720 |
|
D Width of
platform |
mm |
2260 |
|
E Track length |
mm |
2834 |
|
F Overall width
of chassis |
mm |
2200 |
|
G Track width |
mm |
450 |
|
H Length to
center of rollers |
mm |
2180 |
|
I Track gauge |
mm |
1870 |
|
J Counterweight
clearance |
mm |
832 |
|
K Min. ground
clearance |
mm |
410 |
|
L Min. tail
swing radius |
mm |
1865 |
|
M Track height |
mm |
730 |
|
Working scope |
A Max. digging
height |
mm |
7150 |
B Max. dumping
height |
mm |
5190 |
|
C Max. digging
depth |
mm |
4040 |
|
D Max. vertical
wall digging depth |
mm |
3090 |
|
E Max. digging
radius |
mm |
6245 |
|
F Min. swing
radius |
mm |
1820 |
|
Standard
configuration |
Length of boom |
mm |
3720 |
Length of arm |
mm |
1622 |
|
Bucket capacity |
m³ |
0.35 |
|
Optional
configuration |
Length of boom |
m³ |
/ |
Bucket capacity |
m³ |
0.18 Narrow
bucket Breaking hammer,Mechanical
quick coupling,Rubber track block |
