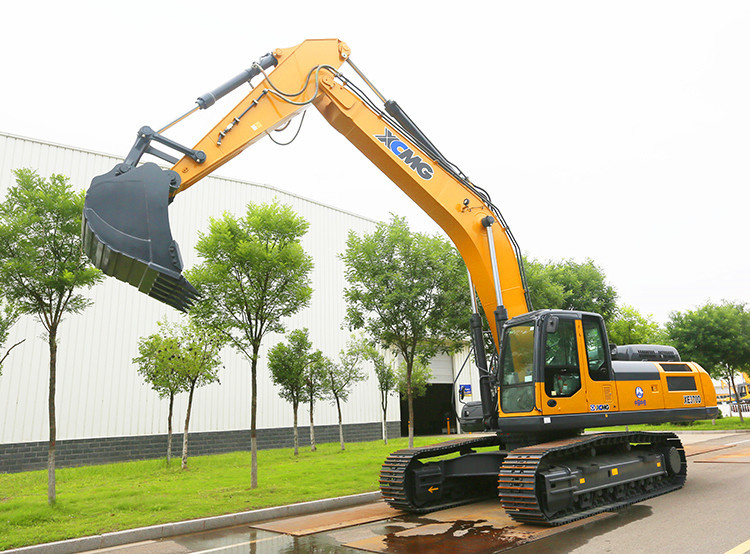

XCMG Excavating Machinery 37t Excavator China Crawler Excavator with Hydraulic Hammer XE370DK
Summary
- Rated Speed:2000rpm
- Max Digging Radius:10480mm
- Machine Weight:36800kg
- Maximum Digging Depth:7423mm
- Maximum Digging Height:10445mm
- Bucket capacity:1.8m3
- Operating Weight:36900Kg
- Model Number:XE370DK
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:36900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Excavating Machinery 37t Excavator China Crawler Excavator with Hydraulic Hammer XE370DK
I. More energy efficient
1. The low-speed and high-torque engine can provide excellent power output, and has good power curve and fuel consumption curve. It has the characteristics of strong power and fuel conservation and is more suitable for the actual working conditions of the excavator.
2. Apply the latest generation of controllers to optimize the power matching between the hydraulic pump and the engine, make full use of the engine power, reduce the waste of engine output power, and further reduce the fuel consumption of the whole machine.
II. More efficient return
1. Along with a new large-diameter multi-way control valve, hydraulic system is efficient and quick; it expands the control range of the valve core, improves the maneuverability to reduce the channel pressure loss by 30%, and thus greatly improve the compound operation efficiency of the whole machine.
2. A new generation of control system can achieve precise and fast matching between the power system and the hydraulic system, and make full use of engine power.
III. More reliable and durable
1. Standard lengthened and reinforced undercarriage system allow for better stability and higher reliability while working in mines.
2. Heavy-duty and reinforced boom, arm and bucket can maintain strong digging forces under tough conditions.
IV. Smarter control
1. A new generation of electronic control system, integrating intelligence, environmental protection and safety, which can achieve comprehensive control for engine speed and hydraulic pump input power, and remote fault monitoring and self-diagnosis functions.
2. Complete the cloud control remote management platform, and improve functions including remote fault diagnosis, remote setting of machine’s working parameters, remote monitoring of working status, GPS positioning, tamper alarm and remote lock, and automatic reminder of regular maintenance information.
V. More comfortable and safe
1. The new cab, along with luxurious interiors, panoramic sunroof design, has a wider view and centralized operation buttons, allowing for a full upgrade of the driving experience.
2. High-performance silicone oil shock absorber with internal damping spring will effectively isolate shock waves in specific frequency bands for improved comfort.
VI. Convenient maintenance and service
1. Daily maintenance points are within reach: Whether it is fuel filter, oil filter, pilot filter or radiator, you can directly service it on the ground.
2. Two-in-one fuel pre-filter and oil-water separator with remote hand oil pump makes maintenance much easier.
|
Item |
Unit |
Parameters |
|
|
Operating weight |
Kg |
36900 |
|
|
Bucket capacity |
m³ |
1.6-1.9 |
|
|
Engine |
Model |
/ |
ISUZU GH-6HK1XKSC-03 |
|
No. of cylinders |
/ |
6 |
|
|
Rated power/speed |
kw/rpm |
212/2000 |
|
|
Maximum torque/speed |
N.m |
1080/1500 |
|
|
Displacement |
L |
7.79 |
|
|
Main performance |
Travel speed（H/L) |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
9.7 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
66.9 |
|
|
Bucket digging force |
kN |
256 |
|
|
Arm digging force |
kN |
219 |
|
|
Maximum tractive force |
kN |
285 |
|
|
Hydraulic system |
Main pump |
/ |
Two piston pumps |
|
Rated flow of main pump |
L/min |
2×296 |
|
|
Main safety valve pressure |
MPa |
36 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
26.5 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
660 |
|
Hydraulic tank capacity |
L |
350 |
|
|
Engine oil capacity |
L |
30 |
|
|
Appearance size |
A Overall length |
mm |
11380 |
|
B Overall width |
mm |
3225 |
|
|
C Overall height |
mm |
3520 |
|
|
D Width of platform |
mm |
3220 |
|
|
E Track length |
mm |
5035 |
|
|
F Overall width of chassis |
mm |
3190 |
|
|
G Track shoe width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
4040 |
|
|
I Track gauge |
mm |
2590 |
|
|
J Counterweight clearance |
mm |
1197 |
|
|
K Min. ground clearance |
mm |
500 |
|
|
L Min. tail swing radius |
mm |
3700 |
|
|
M Track height |
mm |
1105 |
|
|
Working scope
|
A Max. digging height |
mm |
10135 |
|
B Max. dumping height |
mm |
6942 |
|
|
C Max. digging depth |
mm |
6934 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6712 |
|
|
E Max. vertical wall digging depth |
mm |
5326 |
|
|
F Max. digging radius |
mm |
10480 |
|
|
G Min. swing radius |
mm |
4424 |
|
|
Standard |
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.7 |
|
|
Length of arm |
mm |
3200 |
|
|
Bucket capacity |
m³ |
1.6/1.8/1.9 |
|
