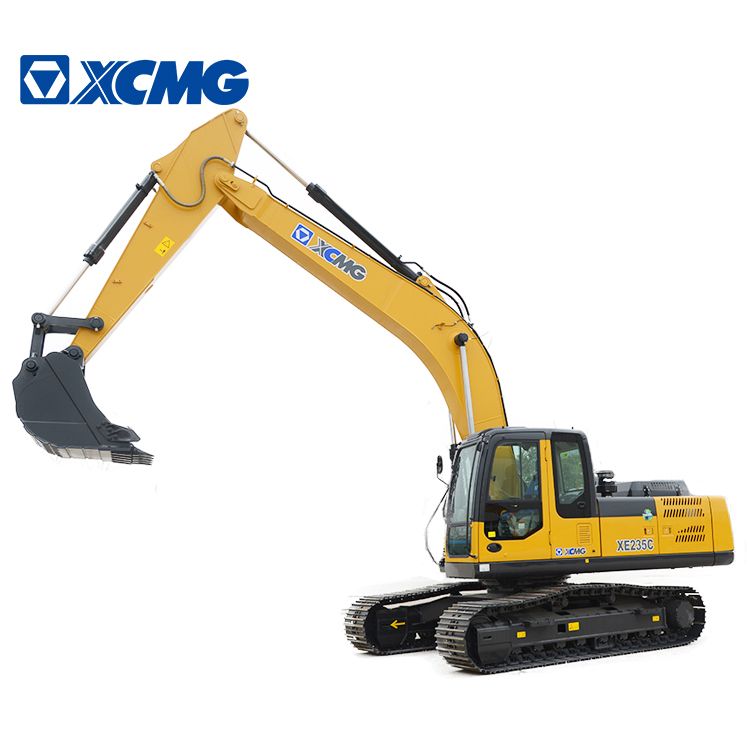

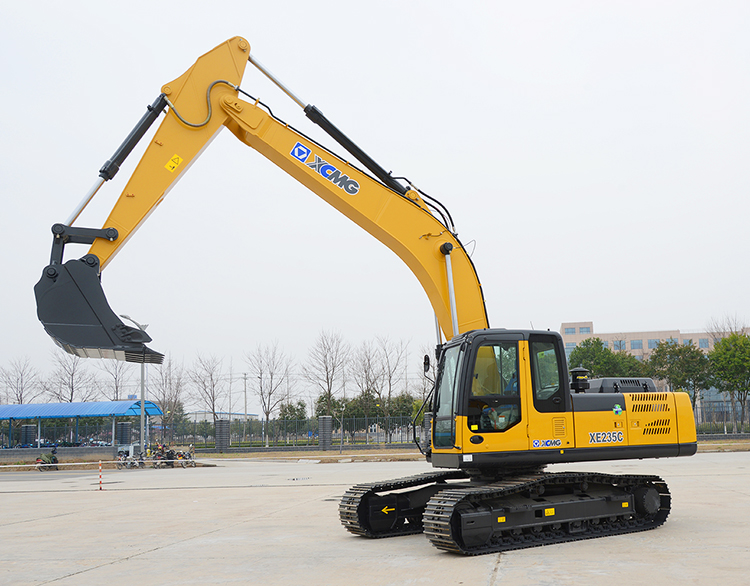

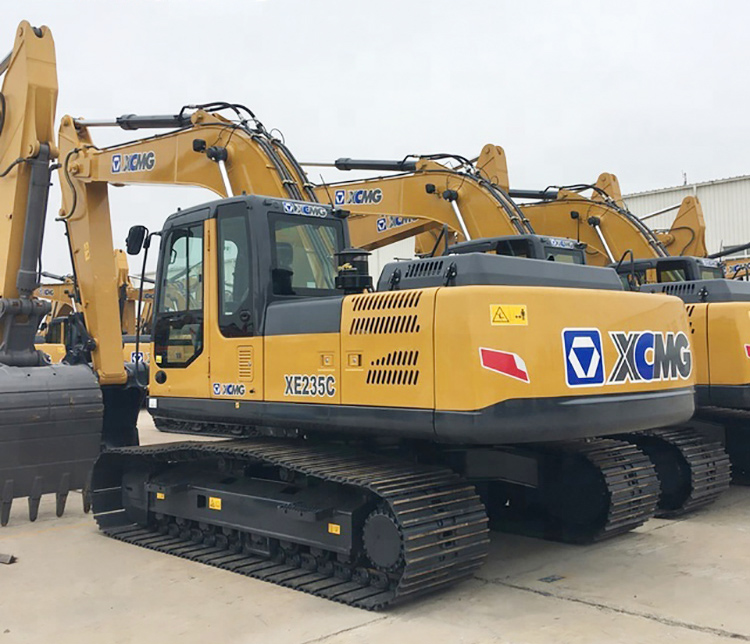

XCMG 23.5ton Crawler Excavator XE235C China high quality hydraulic Excavator machine for sale
![](/app/topc/statics/images/close.png)
![XCMG 23.5ton Crawler Excavator XE235C China high quality hydraulic Excavator machine for sale](http://www.machmall.com/images/store/357636/item/XE235C-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Speed:2100rpm
- Maximum Digging Depth:6960mm
- Maximum Digging Height:9595mm
- Bucket capacity:1.0~1.1m3
- Operating Weight:23500kg
- Model Number:XE235C
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:23500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
23.5ton Crawler Excavator XE235C China high quality
hydraulic Excavator machine.
XE235C hydraulic excavator is a new product developed by
XCMG Group which is widely developed by adopting the latest technology and
adopting the advanced technology of similar foreign products. It is an
efficient excavator with the latest technology, full attention to safety and
environmental performance, and extremely high production efficiency. Based on
the full absorption of international advanced technology, the project is based
on independent innovation and comprehensively overcomes many core key
technologies of 20-ton hydraulic excavators.
The newly upgraded XE235C hydraulic excavator has more
power, lower fuel consumption and stronger working performance. It can be
widely used in farmland water conservancy, river dredging, municipal
construction and small mine construction, and can realize different operation
requirements such as excavation, crushing and dismantling. The adaptability of
working conditions has been further strengthened.

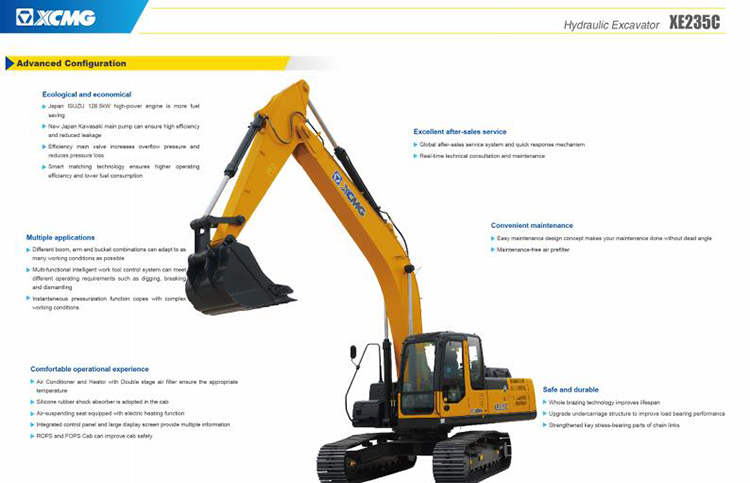

Performance Characteristics:
1. Ecological and economical
* Japan ISUZU 128.5kW high-power engine is more fuel
saving.
* New Japan Kawasaki main pump can ensure high efficiency
and reduced leakage.
* Efficiency main valve increases overflow pressure and
reduces pressure loss.
* Smart matching technology ensures higher operating
efficiency and lower fuel consumption.
2. Multiple applications
* Different boom, arm and bucket combinations can adapt
to as many working conditions as possible.
* Multi-functional intelligent work tool control system
can meet different operating requirements such as digging, breaking and
dismantling.
* Instantaneous pressurization function copes with
complex working conditions.
3. Comfortable operational experience
* Air Conditioner and Heator with Double stage air filter
ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspending seat equipped with electric heating
function.
* Integrated control panel and large display screen
provide multiple information.
* ROPS and FOPS Cab can improve cab safety.
Description |
Unit |
Parameter
value |
||
Operating
weight |
kg |
23500 |
||
Bucket
capacity |
m³ |
1.0~1.1 |
||
Engine |
Model |
Engine |
CC-6BG1TRP |
|
Style |
Direct
injection |
--- |
√ |
|
Four strokes |
--- |
√ |
||
Water cooling |
--- |
√ |
||
Turbo-charging |
--- |
√ |
||
Air to air
intercooler |
--- |
√ |
||
No. of
cylinders |
--- |
6 |
||
Output power |
kW/ r/min |
128.5/2100 |
||
torque/speed |
N.m |
637/1800 |
||
Displacement |
L |
6.494 |
||
Main
performance |
Travel
speed(H/L) |
km/h |
6.0/4.0 |
|
Rotating speed |
r/min |
≤35 |
||
Gradeability |
° |
12.1 |
||
Ground
pressure |
kPa |
48.9 |
||
Bucket digging
force |
kN |
176 |
||
Arm digging
force |
kN |
125 |
||
Maximum
traction |
kN |
194.8 |
||
Hydraulic
system |
Main pump |
-- |
2 |
|
Rated flow of
main pump |
L/min |
2×246 |
||
Pressure of
prime valve |
MPa |
34.3/37 |
||
Pressure of
travel system |
MPa |
34.3 |
||
Pressure of
swing system |
MPa |
25 |
||
Pressure of
pilot system |
MPa |
3.9 |
||
Oil Capacity |
Fuel tank
capacity |
L |
400 |
|
Hydraulic tank
capacity |
L |
240 |
||
Engine oil
capacity |
L |
25 |
||
Appearance
size |
Overall length |
mm |
10160 |
|
Overall width |
mm |
2990 |
||
Overall height |
mm |
3100 |
||
Width of
platform |
mm |
2830 |
||
Length of
crawler |
mm |
4255 |
||
Overall width
of chassis |
mm |
2990 |
||
Width of
crawler |
mm |
600 |
||
Wheel base of
crawler |
mm |
3462 |
||
Crawler gauge |
mm |
2390 |
||
Clearance
under counterweight |
mm |
1050 |
||
Min. ground
clearance |
mm |
485 |
||
Min. tail
swing radius |
mm |
2985 |
||
Working scope |
Max. digging
height |
mm |
9595 |
|
Max. dumping
height |
mm |
6725 |
||
Max. digging
depth |
mm |
6960 |
||
Max. digging
depth at the range of level 8 feet |
mm |
6750 |
||
Max. vertical
wall digging depth |
mm |
6090 |
||
Max. digging
reach |
mm |
10240 |
||
Min. swing
radius |
mm |
3850 |
