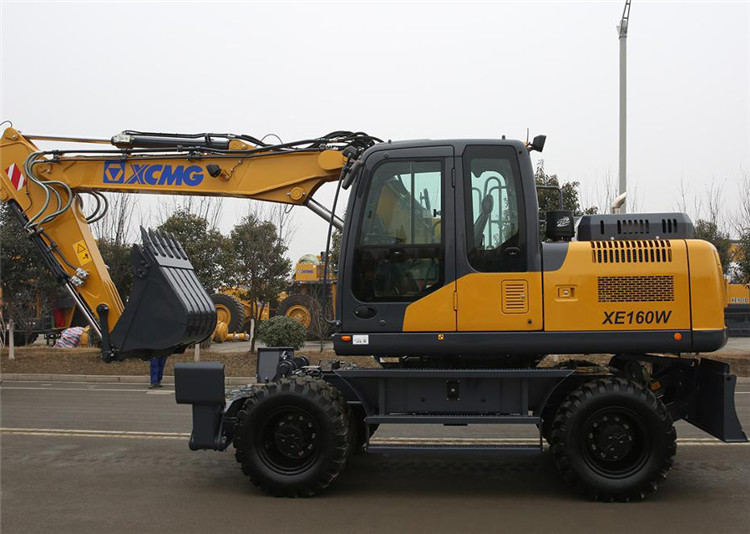

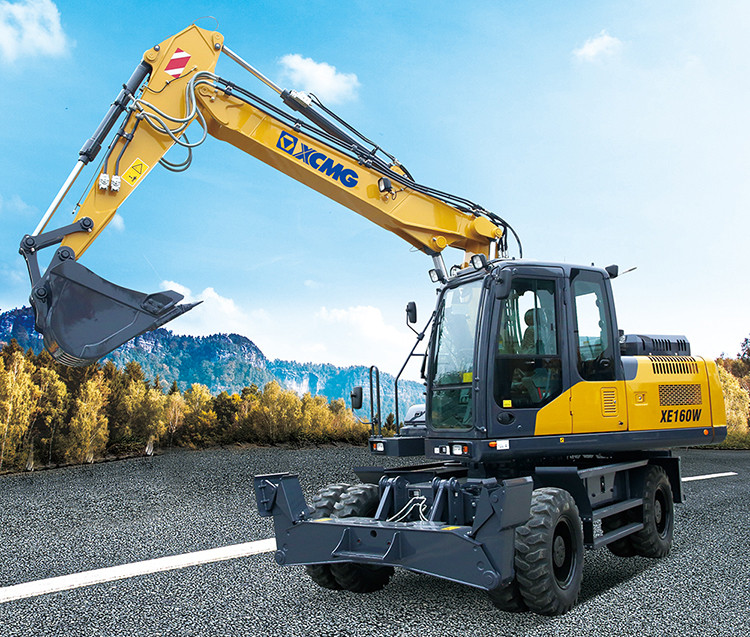

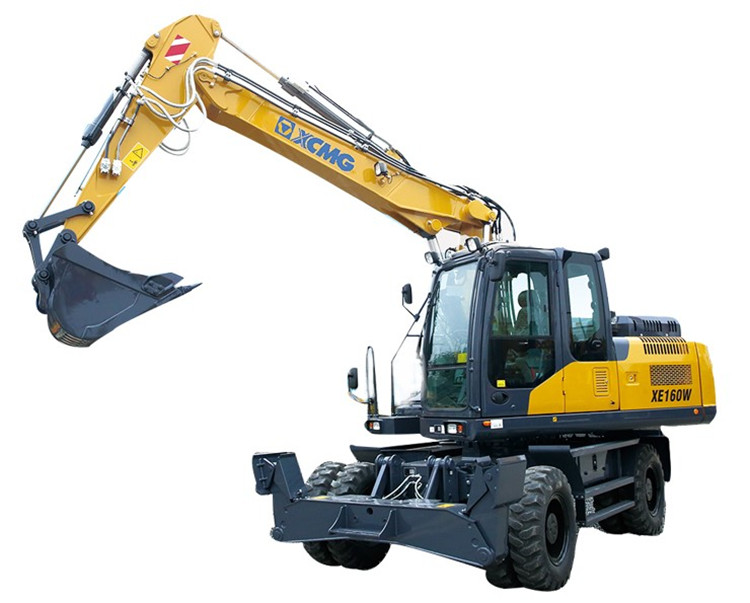

XCMG Factory Price New 15 Ton Hydraulic Wheel Excavator Machine XE160W With Euro Stage IV For Sale
Summary
- Rated Speed: 10r/min
- Max Digging Radius:8296mm
- Maximum Digging Depth:5040mm
- Maximum Digging Height:9150mm
- Bucket Capacity:0.58m3
- Operating Weight:16 tons
- Model Number:XE160W
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:15500.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Factory Price New 15 Ton Hydraulic Wheel Excavator Machine XE160W With Euro Stage IV For Sale.
Performance Characteristics:
1. Engine that meets Euro IV emission standards has strong power, fast response, low noise, low fuel consumption and better adaptability.
2. Two-piece boom technology expands working range and improves the adaptability of the whole machine.
3. The new ergonomically designed cab provides a comfortable working environment with excellent all-round visibility.
4. Adopt the world-class drive motor and axle and transmission system, and with integrated axle and transmission, the travel driving ability is excellent.
5. Constant-speed cruise control will reduce driving fatigue, and automatic oscillating lock mode can meet different working conditions.
|
Model |
Unit |
XE160W |
|
|
Operating weight |
Kg |
15500 |
|
|
Bucket capacity |
m³ |
0.58 |
|
|
Engine |
Model |
/ |
QSB4.5 |
|
Output power |
kW/r/min |
104/2000 |
|
|
Maximum torque/speed |
N.m |
620/1500 |
|
|
Displacement |
L |
4.5 |
|
|
Fuel tank |
L |
250 |
|
|
Main performance |
Rated flow |
L/min |
270 |
|
Working Pressure |
MPa |
31.4/34.3 |
|
|
Hydraulic tank |
L |
130 |
|
|
Swing speed |
r/min |
10 |
|
|
Bucket digging force |
kN |
103.5 |
|
|
Arm digging force |
kN |
76 |
|
|
Min. turning radius |
mm |
6500 |
|
|
Travel speed |
km/h |
8/35 |
|
|
Gradeability |
% |
70% |
|
|
Hydraulic system |
Main pump/Pilot pump |
/ |
Piston pump |
|
Appearance size |
A Overall length |
mm |
8750 |
|
B Overall width |
mm |
2495 |
|
|
C Overall height |
mm |
3180 |
|
|
D Counterweight clearance |
mm |
1247.5 |
|
|
E Min. ground clearance |
mm |
479 |
|
|
F tail turning radius |
mm |
2310 |
|
|
G Wheel base |
mm |
2800 |
|
|
H Tread width |
mm |
1920 |
|
|
I Width of chassis |
mm |
2490 |
|
|
J Distance from front bridge to rotary center |
mm |
1700 |
|
|
K Hood height |
mm |
2493.5 |
|
|
Working scope |
A Max. digging radius |
mm |
8296 |
|
B Max. digging distance |
mm |
8050 |
|
|
C Max. digging height |
mm |
9150 |
|
|
D Max. dumping height |
mm |
6684 |
|
|
E Max. digging depth |
mm |
5040 |
|
|
F Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
4825 |
|
|
G Max. vertical wall digging depth |
mm |
4448 |
|
|
Standard |
|
|
Double boom |
