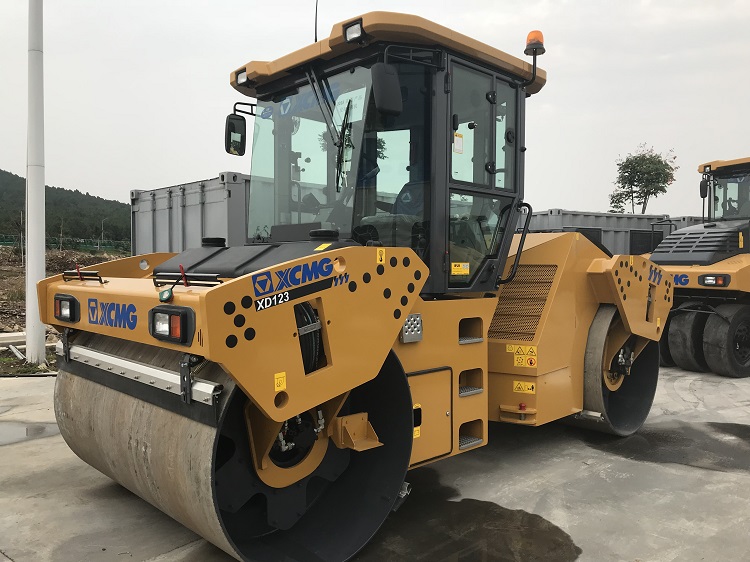

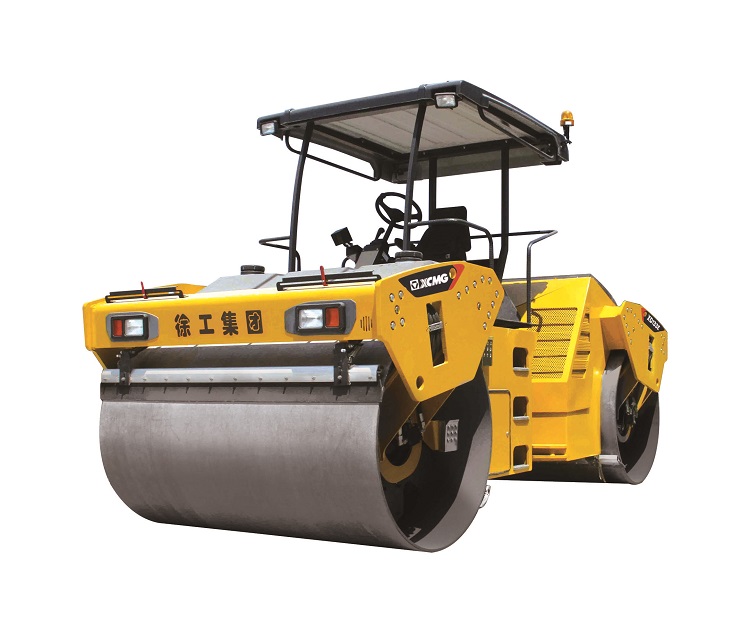

XCMG Official XD123 double drum vibratory road roller 12 ton compactor machine for sale
Summary
- Weight:12300kg
- Dimension(L*W*H):5700*2420*3020(3220)mm
- Power(W):98kW
- Model Number:XD123
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Grade Ability:35%
- Travel Speed:0-12km/h
- Static Linear Pressure:283N/cm
- Type:Double Drum Roller
- Certification:ISO/CE
Specifications
- Weight:12300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official XD123 double drum vibratory road roller 12 ton compactor
machine.
Main parameters:
Operating weight :12 tons ,
Vibration frequency : 45/55 Hz,
Drum width:2130 mm,
Detailed configuration
* Deutz BF4M2012C engine,98Kw,
* Saul hydraulic system,
* Electronic control system ,
* Driving cabin with air conditioner equipped,
Advantages
Adopt top brand engine , pump ,vibratory bearing .Great working performance .
High vibrational frequency ensure good effect of compaction .
XD123 vibratory
roller is suitable for road compaction operations of roads, parking lots,
airports and other large projects. It can also be used to compact roadbed and
sub-base materials, and has a wide range of applications.
|
Description |
Unit |
Parameter value |
||
|
Working weight |
kg |
12300 |
||
|
Front wheel distribution weight |
kg |
6150 |
||
|
Rear wheel distribution weight |
kg |
6150 |
||
|
Speed range |
I |
0-6 |
||
|
II |
0-12 |
|||
|
Theoretical gradeability |
% |
35 |
||
|
Minimum turning radius |
mm |
4800/6930 |
||
|
Largest amount of crab |
mm |
±160 |
||
|
Swing angle |
±8° |
|||
|
Steering angle |
±35° |
|||
|
Static linear load |
N/cm |
283/283 |
||
|
Nominal amplitude |
mm |
0.30/0.75 |
||
|
Vibration frequency |
Hz |
55/45 |
||
|
Exciting force (high frequency/low frequency) |
kN |
85/140 |
||
|
Engine |
Model |
DEUTZ |
||
|
Type |
In-line four-cylinder pressurized water cooling type |
|||
|
Rated speed |
r/min |
2300 |
||
|
Rated power |
kW |
98 |
||
