XCMG Official XCA300 All Terrain Crane for sale
Summary
- Model Number:XCA300
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
Specifications
- Weight:72000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Red
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

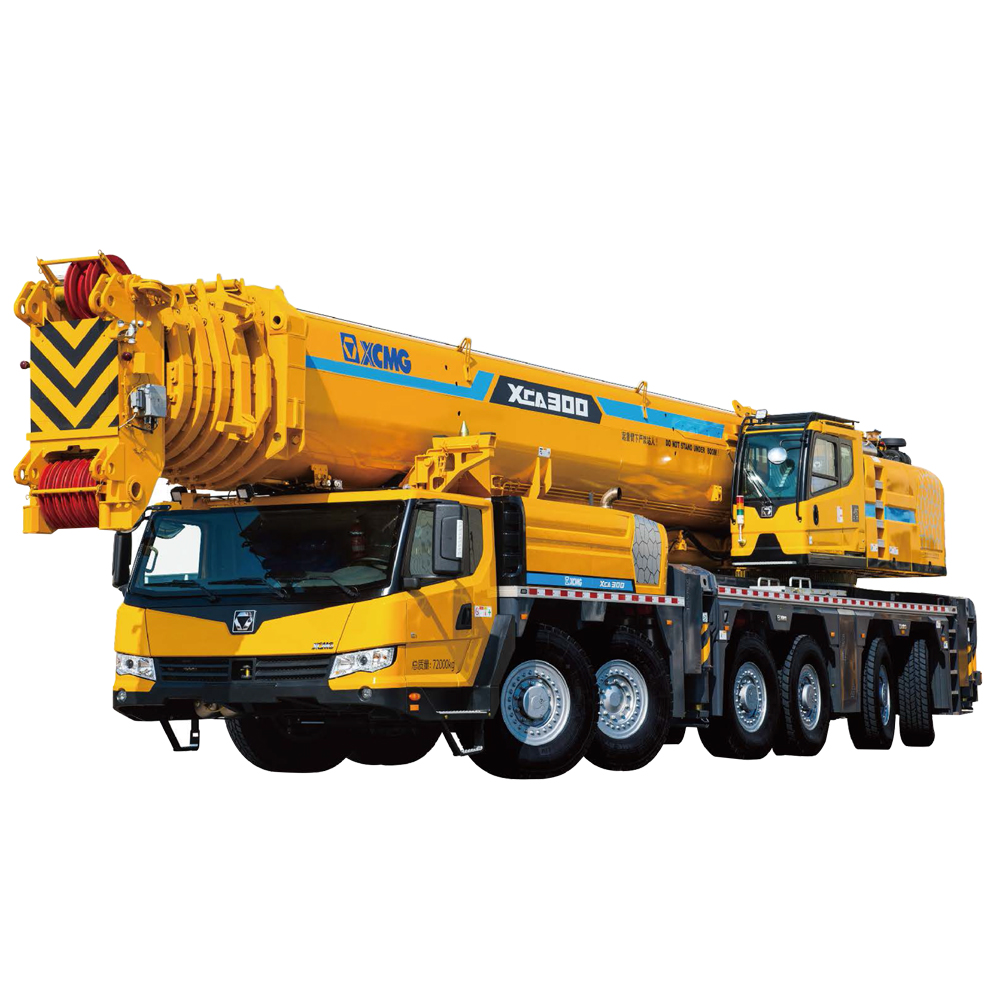

XCA300 All Terrain Crane
1、The lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.
2、Dynamically choosing different braking modes, which contributes to precise control on power performance and avoids invalid braking control or insufficient braking force, and can shorten emergency braking distance, effectively avoid traffic accident, reduce the abrasion of braking system and increase the service life3、With optimized steering system arrangement of center position matching special heavy-load, the mechanism damage can be avoided caused by axles suspending in the air under severe road conditions.4、With first launched multi-mode drive technology in the industry, real-time intelligent control for various working conditions is realized so that the crane has optimized travel state and crane safety and reliability are improved.
5、Axle load monitoring technology: Proper gear (the highest gear engaged) and axle driving mode are matched automatically by axle load monitoring technology, which provides protection for crane safety in traveling.
|
Technical Specifications
|
|||
|
Main Technical Data Table in Travel Configuration |
|||
|
Category Item Unit Parameter |
|||
|
|
Wheelbase |
mm |
1650+3100+1650+2440+1650 |
|
tread |
mm |
2590 |
|
|
Weight |
Dead weight in travel configuration |
kg |
72000 |
|
Power |
Chassis engine model |
—— |
OM502LA.E3B/2 |
|
Engine rated power |
kw/(r/min) |
442.6/1800 |
|
|
Superstructure engine model |
一一 |
OM906LA.E3A/1 |
|
|
Engine rated power |
kw/(r/min) |
205/2200 |
|
|
Travel |
Max. travel speed |
km/h |
≥80 |
|
Min. turning diameter |
m |
≥23 |
|
|
Min. ground clearance |
mm |
280 |
|
|
Max. grade ability |
% |
≥57 |
|
|
Technical Specifications
|
|||||
|
Main Technical Data Table for Lifting Operation |
|||||
|
Category Item Unit Parameter |
|||||
|
Main performance |
Max. total rated lifting capacity |
t |
300 |
||
|
Turning radius at turntable tail |
mm |
5800 |
|||
|
Max. load moment |
Base boom |
kN.m |
9270 |
||
|
Boom length |
Base boom |
m |
15 |
||
|
Fully-extended boom |
m |
80 |
|||
|
Fully-extended boom＋Jib |
m |
112.8 |
|||
|
Jib offset angle |
o |
0/20/40 |
|||
|
Working speed |
Boom raising time |
s |
≤85 |
||
|
Boom fully extending time |
s |
≤900 |
|||
|
Max. slewing speed |
r/min |
≥1.2 |
|||
|
Hoisting speed |
Main winch system (single line, 5th layer) |
No load |
m/min |
≥127 |
|
|
Auxiliary winch system (single line, 2nd layer) |
No load |
m/min |
≥127 |
||
|
XCA300 |
|||||
