Summary
- Machine Weight:15500kg
- Maximum Digging Depth:5040mm
- Maximum Digging Height:9150mm
- Bucket Capacity:0.58m3
- Model Number:XE160W
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- weight:15500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

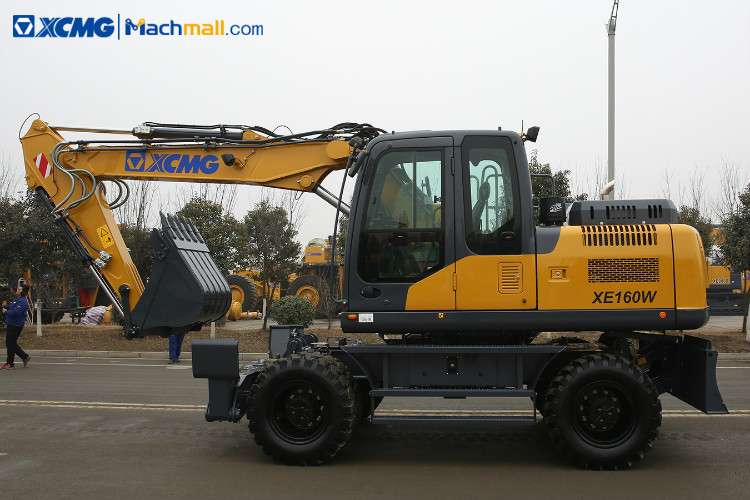

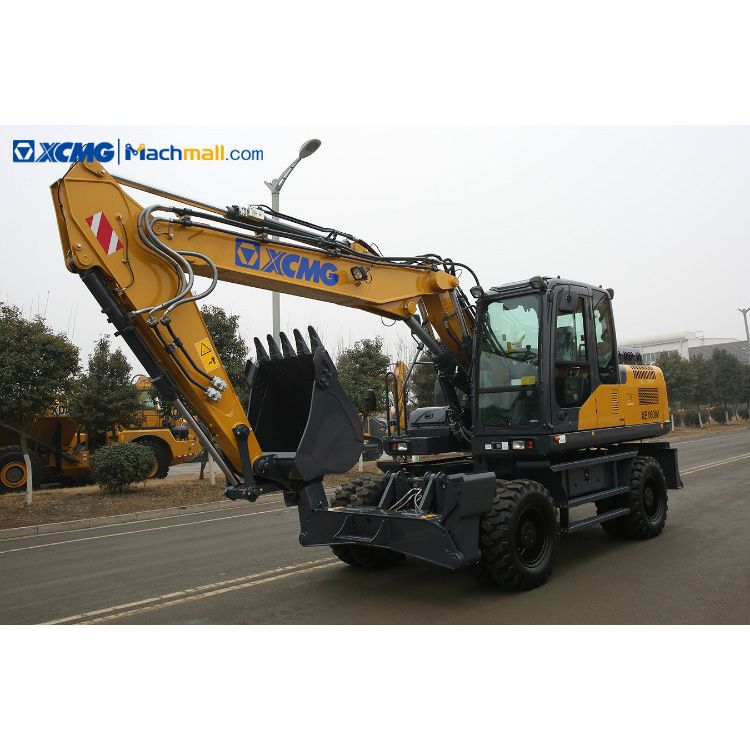

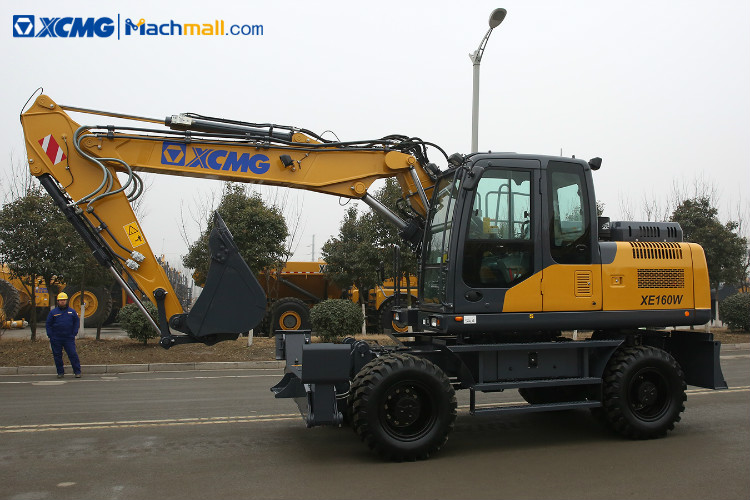

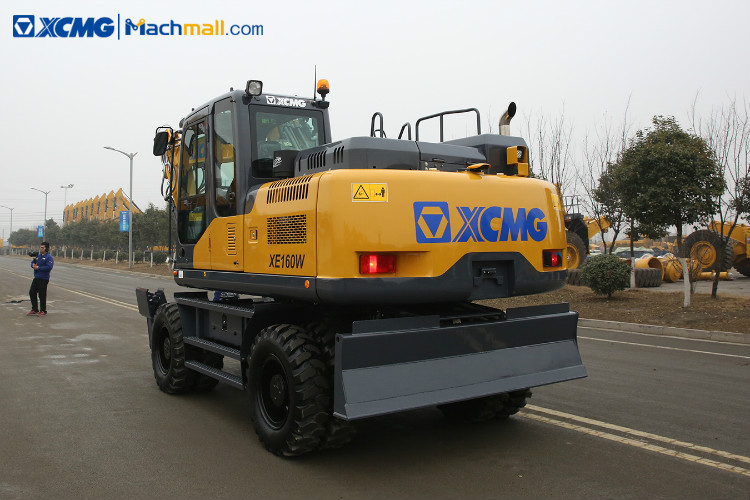

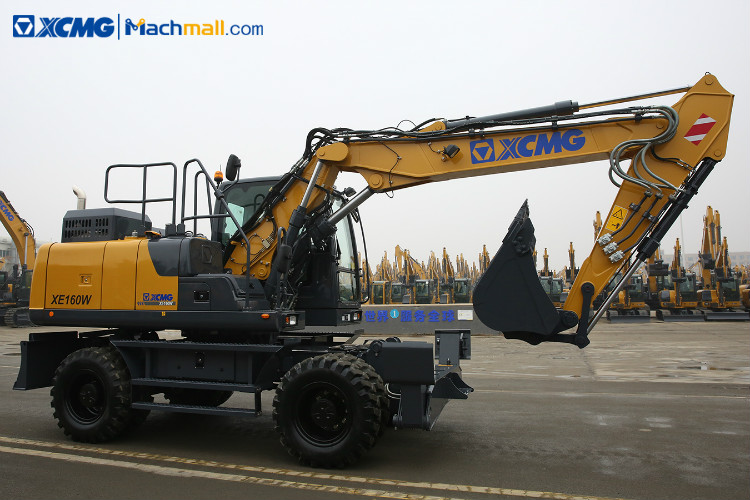

XCMG manufacturer 15 ton wheel excavator XE160W With Euro Stage IV.
1. Engine that meets Euro IV emission standards has strong power, fast response, low noise, environmentally friendly, low fuel consumption and better adaptability.
2. Two-piece boom technology expands working range and improves the adaptability of the whole machine.

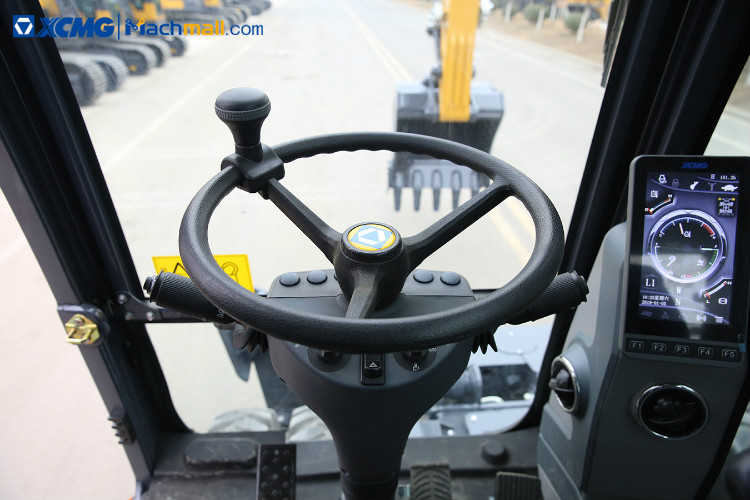

3. The new ergonomically designed cab provides a comfortable working environment with excellent all-round visibility.
4. Adopt the world-class drive motor and axle and transmission system, and with integrated axle and transmission, the travel driving ability is excellent.
5. Constant-speed cruise control will reduce driving fatigue, and automatic oscillating lock mode can meet different working conditions.

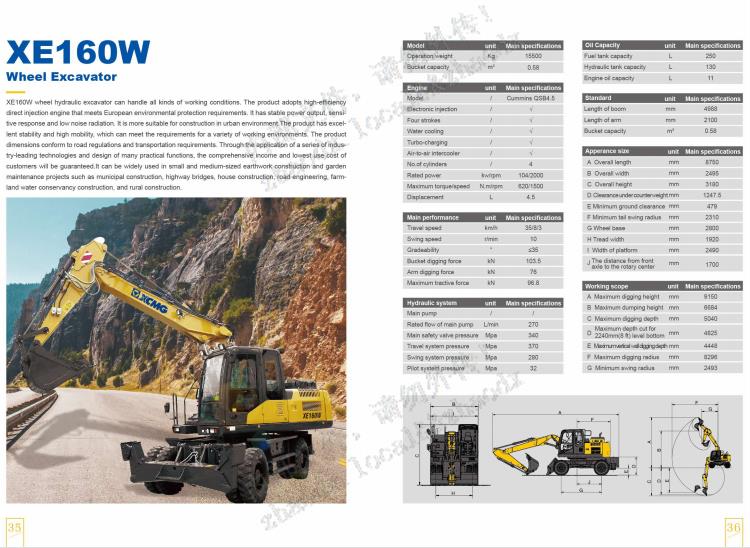

Model |
Unit |
XE160W |
|
Operating weight |
Kg |
15500 |
|
Bucket capacity |
m³ |
0.58 |
|
Engine |
Model |
/ |
QSB4.5 |
|
Output power |
kW/r/min |
104/2000 |
|
Maximum torque/speed |
N.m |
620/1500 |
|
Displacement |
L |
4.5 |
|
Fuel tank |
L |
250 |
Main |
Rated flow |
L/min |
270 |
|
Working Pressure |
MPa |
31.4/34.3 |
|
Hydraulic tank |
L |
130 |
|
Swing speed |
r/min |
10 |
|
Bucket digging force |
kN |
103.5 |
|
Arm digging force |
kN |
76 |
|
Min. turning radius |
mm |
6500 |
|
Travel speed |
km/h |
8/35 |
|
Gradeability |
% |
70% |
|
Main pump/Pilot pump |
/ |
2×Piston pump |
|
Overall length |
mm |
8750 |
|
Overall width |
mm |
2495 |
|
Overall height |
mm |
3180 |
|
Counterweight clearance |
mm |
1247.5 |
|
Min. ground clearance |
mm |
479 |
|
tail turning radius |
mm |
2310 |
|
Wheel base |
mm |
2800 |
|
Tread width |
mm |
1920 |
|
Width of chassis |
mm |
2490 |
|
Distance from front bridge to rotary center |
mm |
1700 |
|
Hood height |
mm |
2493.5 |
|
Max. digging depth of dozer |
mm |
|
|
Dozer(width/height) |
mm |
|
|
Max. digging radius |
mm |
8296 |
|
Max. digging distance |
mm |
8050 |
|
Max. digging height |
mm |
9150 |
|
Max. dumping height |
mm |
6684 |
|
Max. digging depth |
mm |
5040 |
|
Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
4825 |
|
Max. vertical wall digging depth |
mm |
4448 |
|
Max. lifting height of dozer |
mm |
|
Standard |
|
|
Double boom |
