XCMG 0.8 ton mini walk behind roller XMR800 price
Summary
- Weight:800kg
- Dimension(L*W*H):2695*760*1200mm
- Power(W):5kW
- Model Number:XMR800
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0~3.6km/h
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:800.000kg
- Condition:New
- Moving Type:Wheel
- Vibrating wheel diameter:400mm
- Vibrating wheel width:708mm
- Min.turning radius:3135mm
- Min.ground clearance:250mm
- Wheelbase:720mm
- Vibration frequency:55Hz
- Exciting force:15.8kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

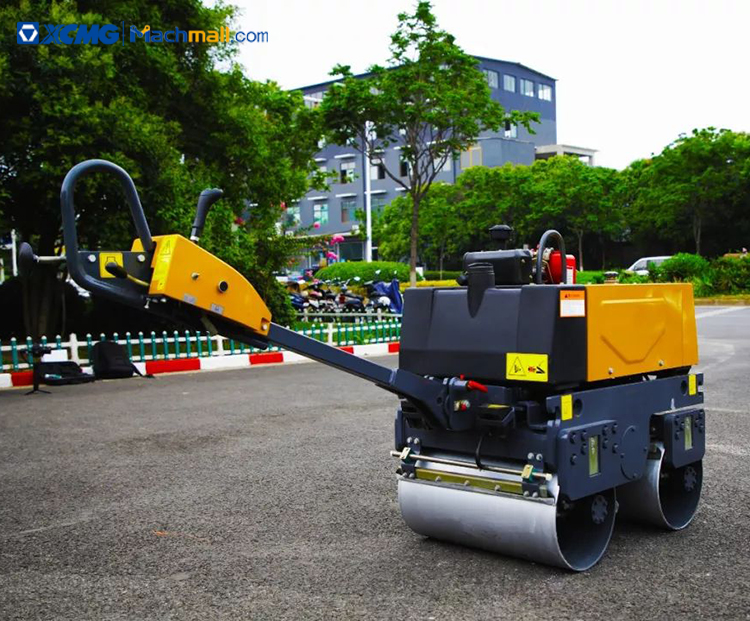

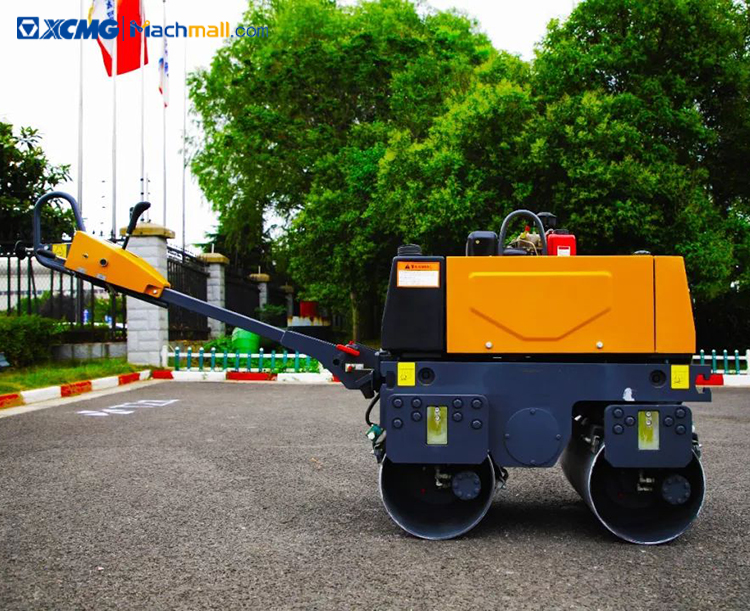

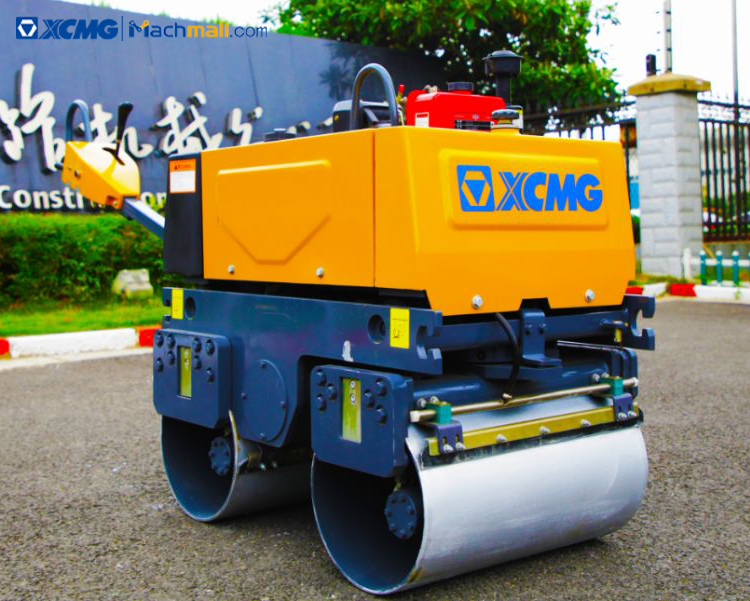

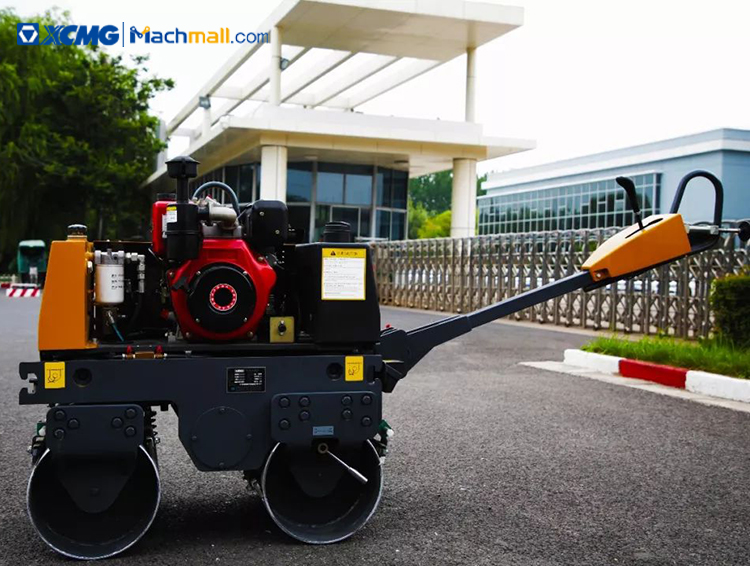

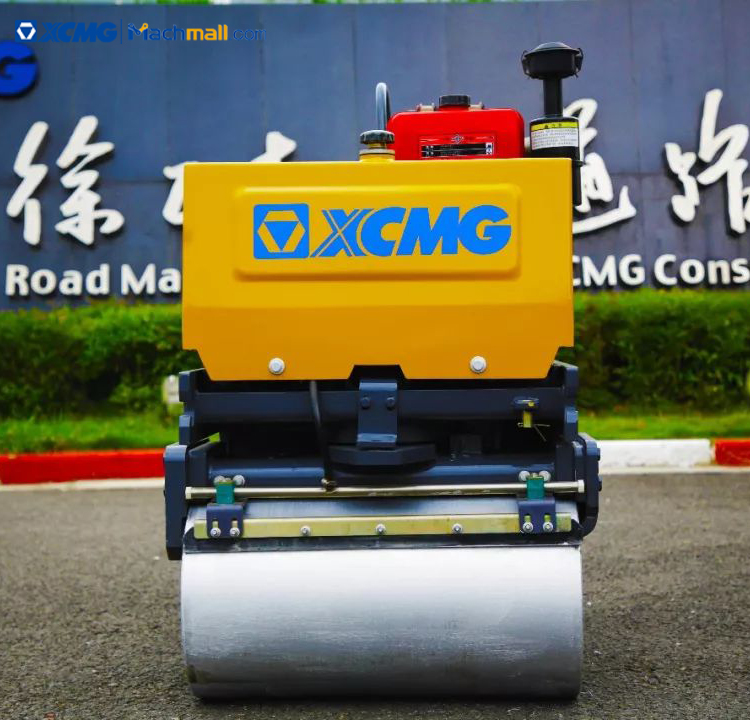

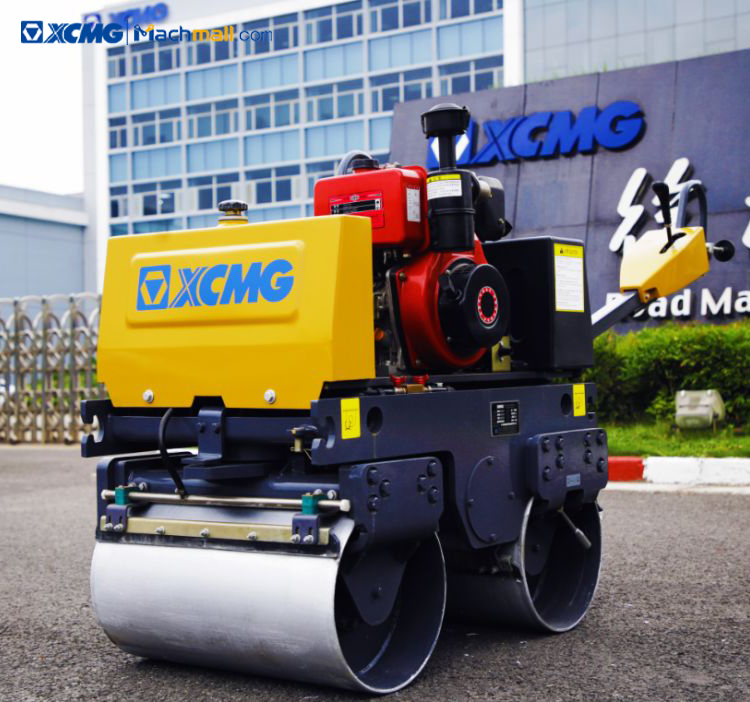

XCMG 0.8 ton mini walk behind roller XMR800.
XCMG walk behind roller XMR800 is a walk behind double steel wheel vibratory roller with a working mass of 0.8 tons. XCMG walk behind roller XMR800 has the characteristics of electromagnetic vibration, valve-controlled hydraulic steering, and comfortable operation.
XCMG walk behind roller XMR800 is mainly suitable for the compaction of asphalt concrete and other surface layers. XCMG walk behind roller XMR800 is especially suitable for the compaction of small projects such as urban roads and gymnasiums.
XCMG walk behind roller XMR800 can also be used for the compaction of small and medium foundations, sub-foundations and filling materials; XCMG walk behind roller XMR800 has good edge holding performance It also shows its unique advantages in the compaction of narrow work sites and trench foundations.
|
Item |
Unit |
XMR800 |
|
Operation weight |
kg |
800 |
|
Vibrating wheel diameter |
mm |
400 |
|
Vibrating wheel width |
mm |
708 |
|
Speed range |
km/h |
0~3.6 |
|
Theoretical climbing ability |
% |
30 |
|
Min.turning radius |
mm |
3135 |
|
Min.ground clearance |
mm |
250 |
|
Wheelbase |
mm |
720 |
|
Steering angle |
。 |
士15 |
|
Vibration frequency |
Hz |
55 |
|
Nominal amplitude |
mm |
0.32 |
|
Exciting force |
kN |
15.8 |
|
Engine model |
|
186F |
|
Engine rated speed |
r/min |
2600 |
|
Engine rated power |
kW |
5 |
|
Engine fuel consumption |
g/kW.h |
280 |
|
Dimensions (length/width/height) |
mm |
2695*760*1200 |
|
Hydraulic oil tank volume |
L |
16 |
|
Fuel tank volume |
L |
5.5 |
|
Water tank volume |
L |
40 |
