Summary
- Weight:2000kg
- Dimension(L*W*H):2370*1090*1575(2210)mm
- Power(W):17.6kW
- Model Number:XMR203
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-10.5km/h
- Static Linear Pressure:98N/cm
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:1900.000kg
- Condition:New
- Moving Type:Wheel
- Vibrational frequency:65Hz
- Exciting Force:17kN
- Roller width:1090mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

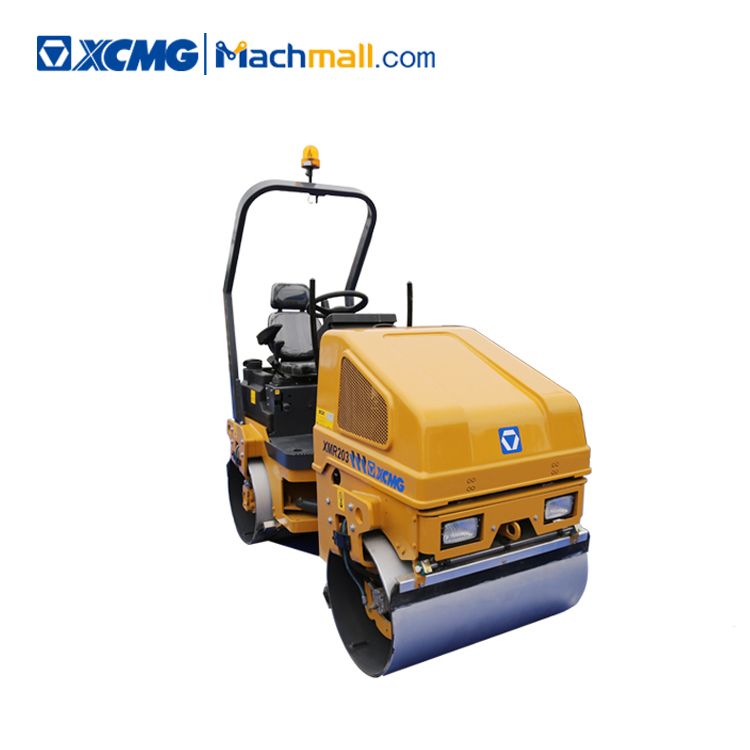

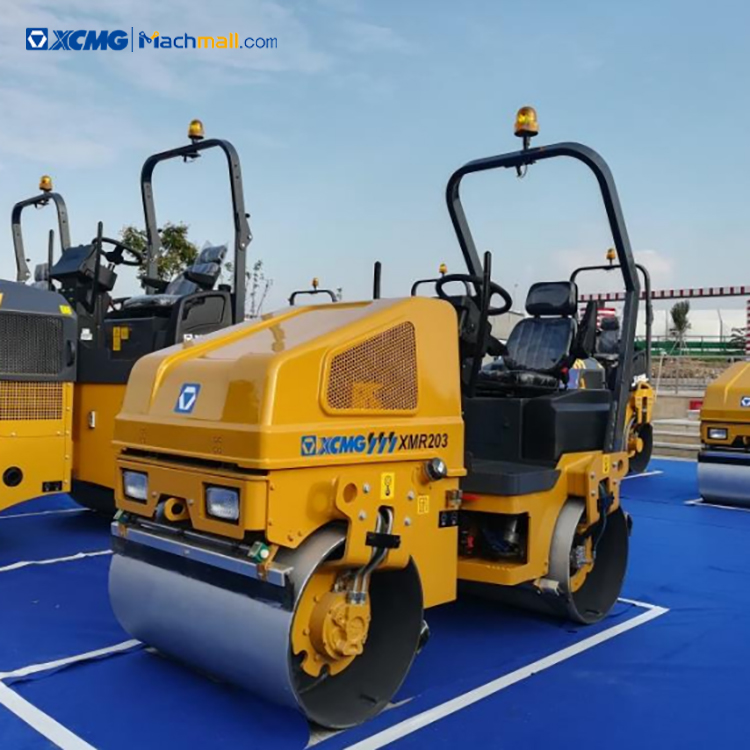

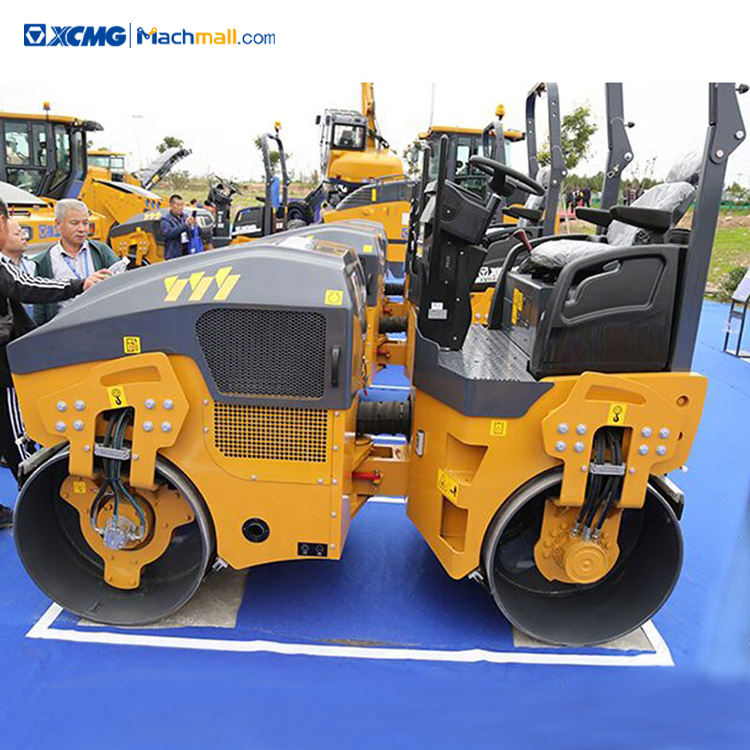

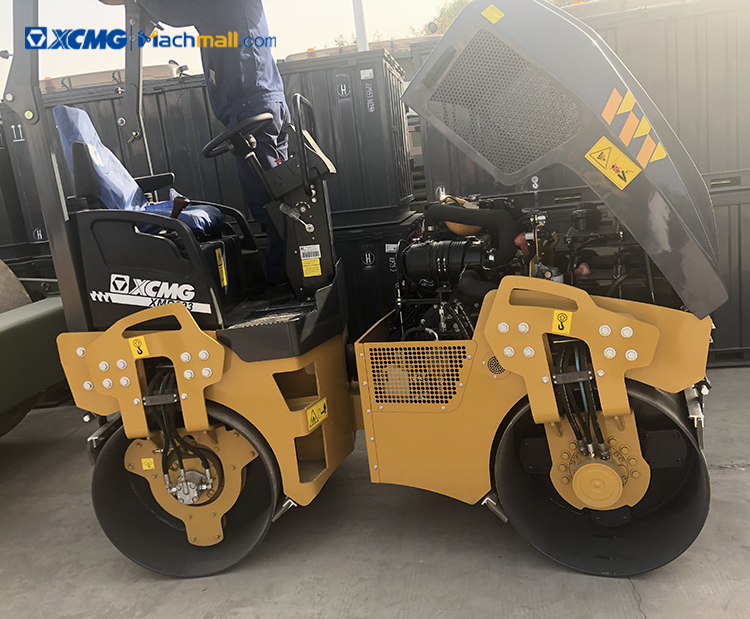

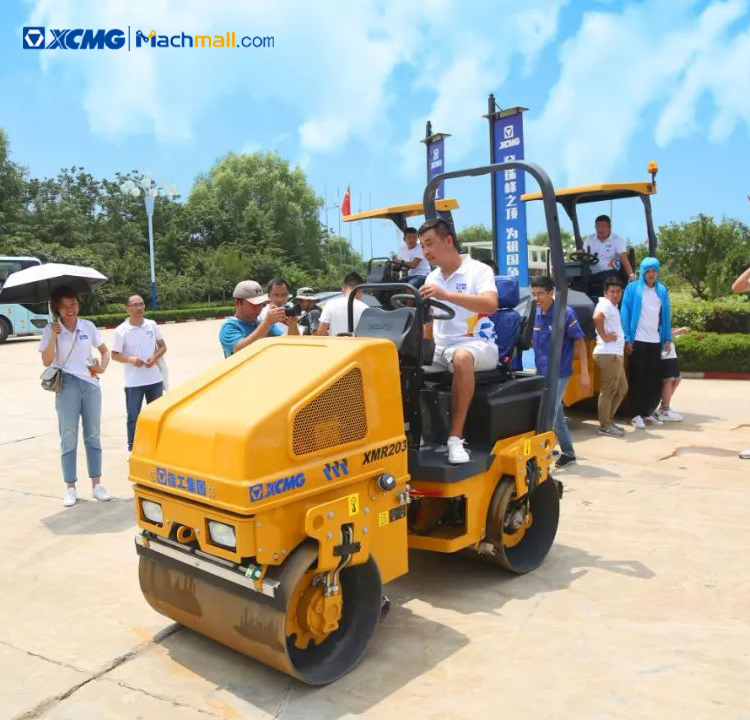

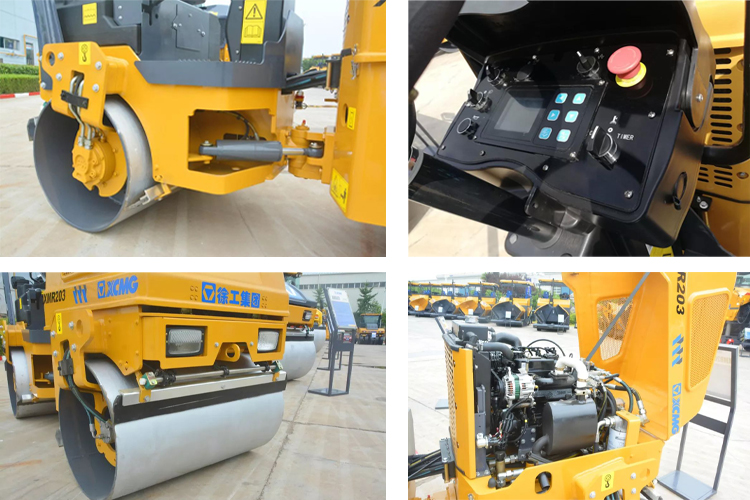

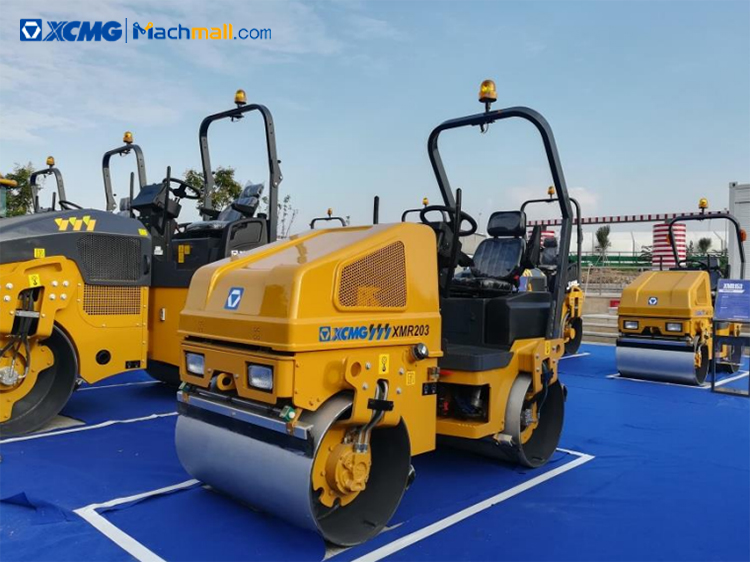

XCMG official 2 ton vibratory roller compactor XMR203.
XCMG vibratory roller compactor XMR203 is a light vibratory roller with a working mass of 2 tons. XCMG vibratory roller compactor XMR203 is specially designed for compaction operations on small sites.
XCMG vibratory roller compactor XMR203 has the characteristics of small size, strong maneuverability, good compaction flatness, and high work efficiency. XCMG vibratory roller compactor XMR203 can be used for compaction of foundation and surface layers. XCMG vibratory roller compactor XMR203 is widely used in the construction and maintenance of various infrastructures.
XCMG vibratory roller compactor XMR203 is an indispensable construction equipment for road maintenance, small area repair operations, and trench compaction, especially in the construction of stadiums, parks, sidewalks, parking lots and other municipal projects. The medium is able to exert its excellent compaction performance.
|

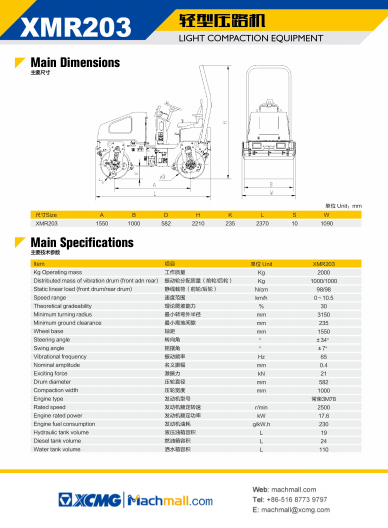

Description |
Unit |
XMR203 |
|
Operating weight |
kg |
2000 |
|
Static linear load |
N/cm |
98/98 |
|
Roller width |
mm |
1090 |
|
Rolling system |
|
Tandem type both drum drive |
|
Power line |
|
Hydraulic transmission |
|
Final drive |
|
Gear |
|
Brake system |
|
Hydraulic, mechanical pin lock |
|
Speed |
km/h |
0-10.5 |
|
Gradeability |
% |
30 |
|
Centrifugal force |
kN |
17 |
|
Frequency |
Hz |
65 |
|
Engine model |
|
Changchai engine 3M78 |
|
Rated power |
kw |
17.6 |
|
Fuel tank capacity |
L |
24 |
|
Hydraulic tank capacity |
L |
19 |
|
Sprinkler capacity |
L |
110 |
|
Overall Dimensions(L/W/H) |
mm |
2370*1090*1575(2210)mm |
