XCMG 4 ton light vibratory road roller XMR403VT price
Summary
- Weight:4000kg
- Dimension(L*W*H):2720*1462*2776mm
- Power(W):36kW
- Model Number:XMR403VT
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-10.6km/h
- Static Linear Pressure:150N/cm
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:4000.000kg
- Condition:New
- Moving Type:Wheel
- Vibrational frequency:60Hz
- Exciting Force:42KN
- Diameter of vibrating wheel:800mm
- Minimum turning radius:3062/4362mm
- Vibration wheel width:1300mm
- Rated amplitude:0.41mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

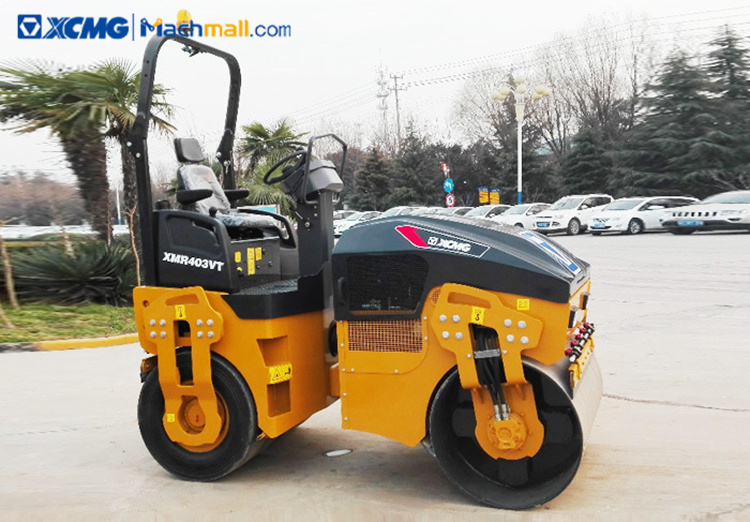

XCMG 4 ton light vibratory road roller XMR403VT.
XCMG vibratory road roller XMR403VT is a highly efficient machine designed for a wide range of compaction and maintenance work including roads, airfields, seaports, dams and housing foundations. Articulated frame features flexible steering for great stability.
Performance Characteristics:
1. Highly integrated, complementary advantages
The surface particles of the road surface have a uniform appearance and a longer service life.
2. High frequency vibration, energy saving and high efficiency
Improves the service life of the vibrating bearing and avoids the polarization of the vibrating wheel.
3. All-wheel drive, strong adaptability
The driver can freely choose the required driving speed according to different working conditions.
4. Three-level shock absorption technology
The vibration transmitted to the operator is greatly reduced.
5. Not only effectively protects the safety of man and machine, but also reduces the transportation height and transportation cost.
|
Item |
Unit |
XMR403VT |
|
Operation weight |
kg |
4000 |
|
Rated power |
kW |
36 |
|
Rated speed |
rpm |
2600 |
|
Minimum turning radius |
mm |
3062/4362 |
|
Diameter of vibrating wheel |
mm |
800 |
|
Dimension(L*W*H) |
mm |
2720*1462*2776mm |
|
Grade Ability |
% |
30 |
|
Travel Speed |
km/h |
0~10.6 |
|
Vibration frequency |
Hz |
60 |
|
Excitation force |
kN |
42 |
|
Vibration wheel width |
mm |
1300 |
|
Steering angle |
° |
±30 |
|
Rated amplitude |
mm |
0.41 |
|
Static Linear Pressure |
N/cm |
150 |
|
Drive type |
- |
Hydraulic dual drive |
|
Engine manufacturer |
- |
Changchai |
