XCMG official TY230 217HP brand new crawler bulldozer machine Hydraulic bulldozer for sale
Summary
- Dimension(Long * Breadth * High):5477*3725*3517mm
- Machine Weight:25500kg
- Model Number:TY230
- Brand Name:XCMG
- Place of Origin:JIANGSU, CHINA
- Certification:ISO
Specifications
- Weight:25500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

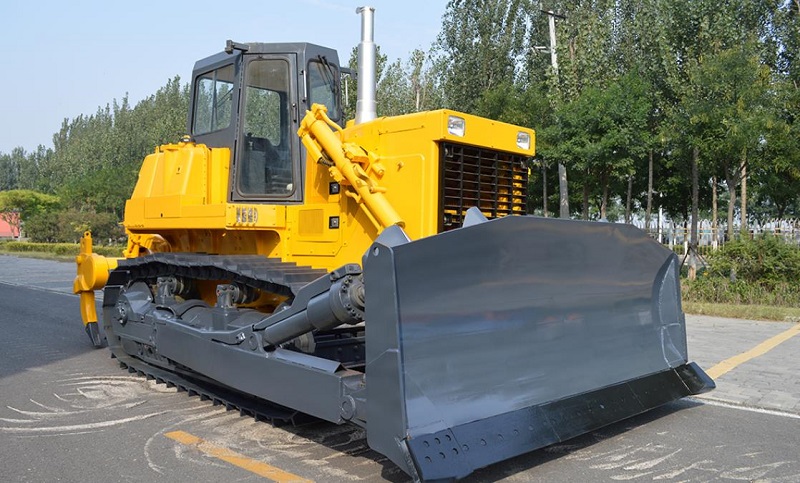

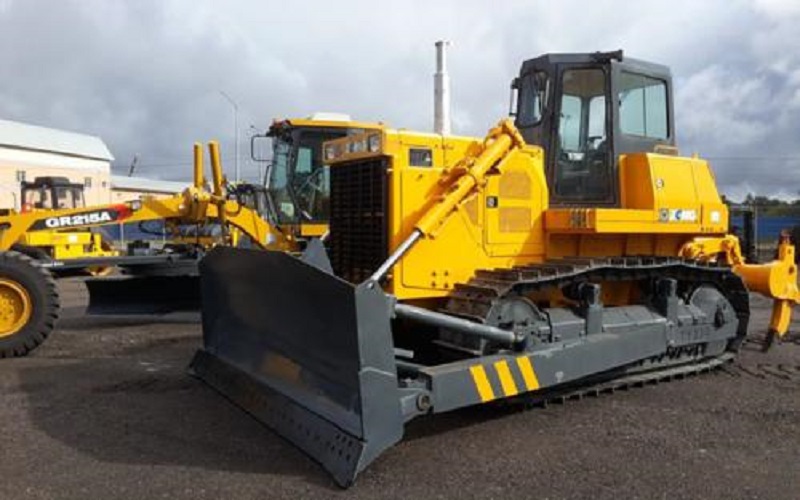

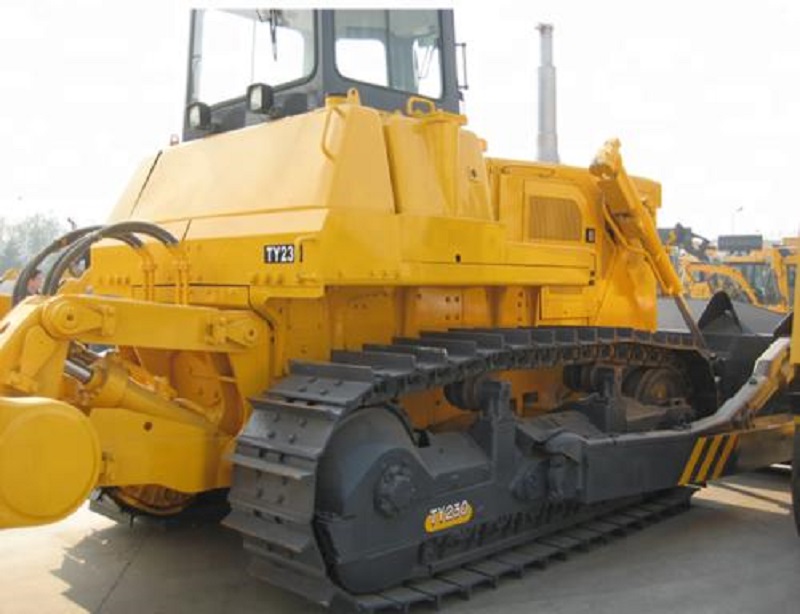

XCMG official TY230 217HP brand new crawler bulldozer machine
Hydraulic bulldozer.
l The machine
features reasonable layout, excellent performance and advanced technology.
l Higher engine
power reserves efficiency, bigger torque output, lower fuel consumption, while
better reliability.
l Hydraulicly
controlled drive, automatically speed regulating and non-stop gear shifting.
l The final drive
uses triangle Spline and tip relief, crowned gear drive to enhance the balance
and the stability of the load of transmission Part.
l The novel
hexahedral cab offers excellent visibility, the powerful ventilation and
unparalleled dust-free.
Professional power
l Pulse exhaust
manifold for improving performance and emission.
l With a high
torque reserve and a low speed under the maximum torque condition for a good
adaptation.
l High quality
cast iron and special designed valve guide for the seal performance and
durability.
l Robust and
precise balance design for crankshaft.
l Advanced
turbocharger and water cooler technology.
l 4 valves per
cylinder for high power and low fuel consumption.
|
Specification/Blade type |
Straight-tilt |
Angle |
U-Blade |
|
Operating Weight(kg) |
17400 |
17700 |
17900 |
|
Min.Ground Clearance(mm) |
400 |
400 |
400 |
|
Min.Tuming Radius(m) |
3.2 |
3.2 |
3.2 |
|
Ground Pressure(MPa) |
0.069 |
0.070 |
0.071 |
|
Track Gauge(mm) |
1880 |
1880 |
1880 |
|
Max.Pulling Force(KN) |
142 |
142 |
142 |
|
Grade Ability(°) |
30 |
30 |
30 |
|
Blade Capacity(m³) |
4.5 |
4.3 |
8.6 |
|
Blade WidthxHeight(mm) |
3416x1145 |
3970x1037 |
4061x1386 |
|
Max.Lift(mm) |
1110 |
1095 |
1095 |
|
Max.Depth(mm) |
530 |
545 |
545 |
|
Max.tilt Adjustment(mm) |
≥860 |
≥400 |
≥400 |
|
Pitch Adjustment(°) |
55 |
55 |
55 |
|
Capability(m³/H)(Theoreticalvalue 40m) |
247 |
247 |
260 |
|
Weight Of Blade(kg) |
2350 |
2450 |
2560 |
