XCMG Official TY160 China 160HP Mini Dozer Bulldozer for Sale
Summary
- Dimension(Long * Breadth * High):5128*3416*3120mm
- Machine Weight:18200kg
- Model Number:Ty160
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:18200.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

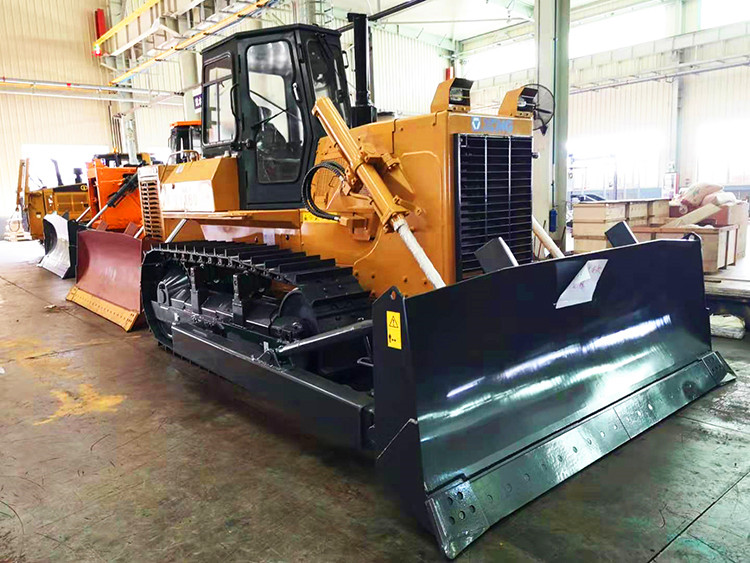

XCMG Official TY160 China
160HP Mini Dozer Bulldozer.
The
TY160 bulldozer which has excellent power, reliability and a long service life.
Through the introduction of Japanese D65A-8 bulldozer technology, at the same
time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been
developed by the domestic design.
Technical Characteristics:
*
The appearance of the vehicle is based on optimization design.
*
High engine power reserve, strong torque output, low fuel consumption, reliable
controls.
*
Hydraulically powered, automatic speed change, shift the gears without stop the
vehicle.
*
3 elements, single stage and single phase torque convertor features high
efficiency and capacity.
*
The updated hexahedral cab features outstanding visibility and good tightness.
* Using the triangle spline and the gear of crowned teeth and tip relief in the
final drive to average the loads on the trans-mission components for more
stability, prolong the lifetime.
*
New blade is more durable and capacious.
*
Alarming & monitoring system is reliable.
*
Reliable manual- operated spool valve and external mounted valve for easy
maintenance.
|
Name |
Remarks |
Ty160 |
|
Overall size of the machine（mm） |
Straight shovel, traction rod |
5128×3416×3120 |
|
Straight shovel, three toothed soil loosen |
6215×3416×3120 |
|
|
The use quality of the whole machine（kg） |
Straight shovel, traction rod |
17100 |
|
Straight shovel, three toothed soil loosen |
18700 |
|
|
Maximum traction power (kN) |
148 |
|
|
Minimum turning radius (mm) |
3100 |
|
|
Maximum climbing performance (°) |
30 |
|
|
Minimum ground clearance (mm) |
No crawler |
400 |
|
Average ground specific pressure (MPa) |
0.065 |
|
|
Forward speed (km/h) |
F1 |
3.1 |
|
F2 |
5.47 |
|
|
F3 |
9.07 |
|
|
Back speed (km/h) |
R1 |
4.03 |
|
R2 |
7.12 |
|
|
R3 |
11.81 |
|
|
Tracked ground length (mm) |
2430 |
|
|
Caterpillar center distance (mm) |
1880 |
|
|
Production efficiency (m3/h) |
30m distance |
350 |
|
Engine |
||
|
Model |
Weichai WD10G178E25 |
|
|
type |
Water cooling,straight line,four stroke,direct
injection |
|
|
The number of cylinder - bore * stroke (mm) |
6－126×130 |
|
|
Rated power (kW) |
131 |
|
|
Rated speed (r/min) |
1850 |
|
|
Maximum torque (N.m/r/min) |
830/1000～1200 |
|
|
Fuel consumption rate (g/kW.h) |
≤210 |
|
|
Walking system |
||
|
type |
Swing type and balance beam suspension structure |
|
|
Pitch (mm) |
203.2 |
|
|
Number of wheels of single side belt |
2 |
|
|
Number of single side pulley |
unilateral and 2 bilateral |
6 |
|
Crawler height (mm) |
60 |
|
|
Working device |
||
|
Straight shovel single shovel capacity (M3) |
3.9 |
|
|
The maximum lifting height of the blade (mm) |
1095 |
|
|
The maximum depth of soil cutting blade (mm) |
545 |
|
|
The maximum tilt blade height (mm) |
860 |
|
|
Type of soil looser |
Three teeth |
|
|
Three tooth looser tooth distance (mm) |
950 |
|
|
Three tooth looser |
Soil depth (mm) |
572 |
|
Elevation (mm) |
702 |
|
|
The three tooth scarifier weight (kg) |
1621 |
|
