Summary
- Dimension(L*W*H):14570×2530×3990mm
- Weight:44000kg
- Power(W):294000W
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

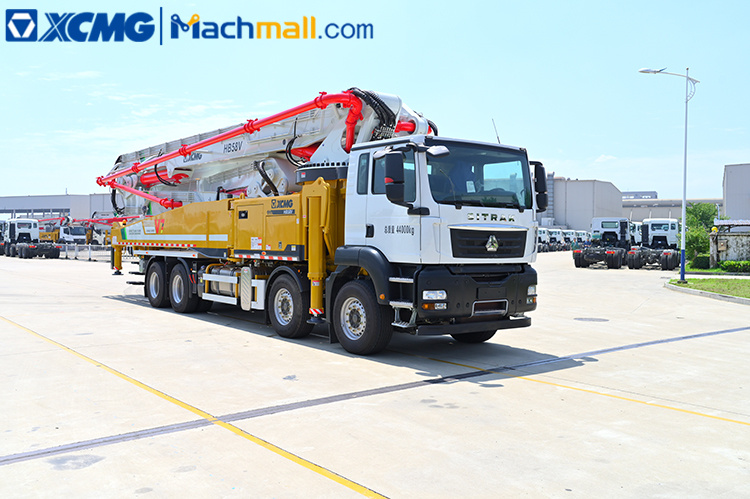

XCMG schwing germany concrete pumps HB58K with Sitrak chassis sale in Singapore.
XCMG schwing germany concrete pumps HB58K with Sitrak chassis sale in Singapore is equipped with Sitrak chassis, has specialty and acme originates from the top-level technology of SCHWING Germany.

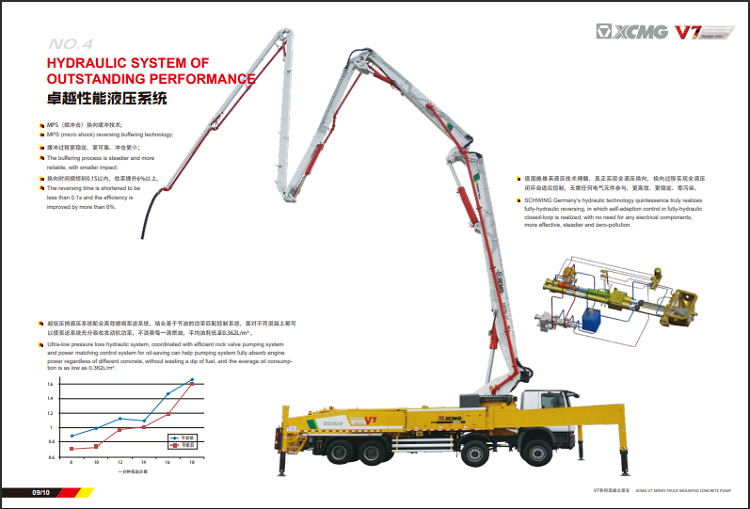

XCMG schwing germany concrete pumps HB58K with Sitrak chassis sale in Singapore is equipped with Ultra-low pressure loss hydraulic system, coordinated with efficient rock valve pumping system and power matching control system for oil-saving can help pumping system fully absorb engine power regardless of different concrete, without wasting a dip of fuel, and the average oil consumption is as low as 0.362L/m³
Advantages and highlights:
1.Easier repair and maintenance.
2.More comfortable use experience.
3.Chain-type snap ring easy for assembly and disassembly.
|
Category |
Item |
Unit |
HB58V |
|
Overall |
Outline dimension |
mm |
14570×2550×4000 |
|
|
overall weight |
kg |
44000 |
|
|
Brand |
/ |
Sinotruck sitrak |
|
Chassis |
Model |
/ |
ZZ5446V516MF1 |
|
|
Wheelbase |
mm |
1950+4500+1400 |
|
|
Max.power |
kW |
327 |
|
Engine |
Emission standard |
/ |
China VI |
|
|
Theoretical |
m³/h |
180 |
|
Pumping system |
Concrete pumping pressure |
MPa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22～24 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2200 |
|
Placing boom |
Reach height |
m |
57.5 |
|
|
Reach depth |
m |
40.5 |
|
|
Slewing radius |
m |
52.5 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer |
/ |
Rock valve/S valve |
