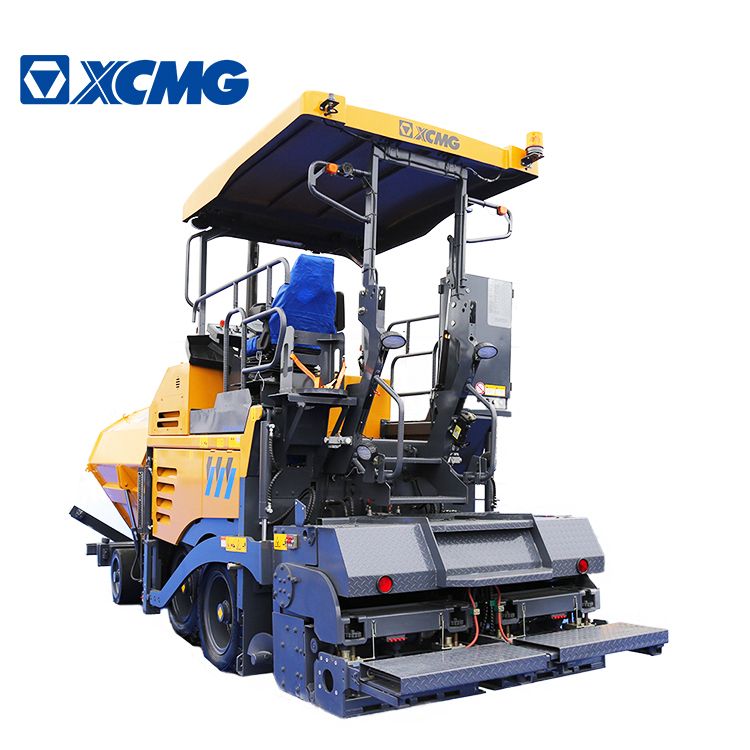

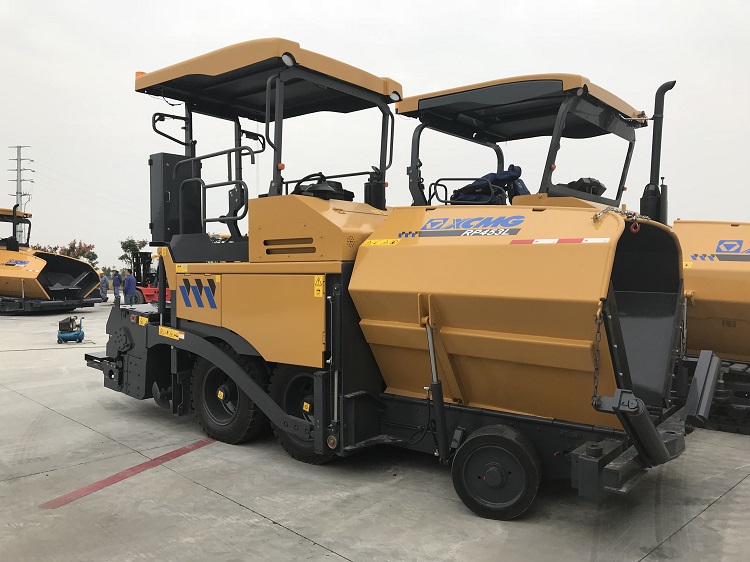

XCMG Road Machinery 4.5 m mini road paver machine RP453L pavers for sale

.jpg)

Summary
- Weight:11000kg
- Dimension(L*W*H):6260*1900*3750mm
- Model Number:RP453L
- Brand Name:XCMG
- Place of Origin:JIANGSU, CHINA
- Paving Width:1.8-4.5m
- Max. Paving Thickness:260mm
- Power(W):73.5kW
- Production Capacity:12000kg
- Certification: ISO/CE
Specifications
- Weight:11000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Road Machinery 4.5 mmini road paver machine RP453L pavers.
Full hydraulic four-wheel drive, continuously variable, equipped with SC4H100G3 water-cooled turbocharged diesel engine, power up to 73.5KW.
Gas heated hydraulic telescoping screed, stepless adjustable vibration frequency, paving width from 2 meters to 4.5 meters Width, the functional console is modularized, the control system of the main switchgear is used.
The
automatic leveling device is used, the vertical flatness is 3mm/3M, the
transverse gradient is within 0.02%, wet multi-disc brakes are used for driving
and Parking brake, the whole machine is safe and reliable, and the
material-discharging blades are made of highly wear-resistant Cr-Ni-based
materials to extend the service life.
Description |
Unit |
Parameter value |
Dimension |
mm |
5690*2070*3590 |
Weight |
kg |
11000 |
Driving speed |
m/min |
0-20 |
Basic pave width |
m |
1.8-3.4 |
Maximum pave width |
m |
4.5 |
Maximum layer thickness |
mm |
260 |
Maximum paving speed |
m/min |
18 |
Hopper capacity |
kg |
12000 |
Maximum laydown rate |
t/h |
240 |
Rate power |
kw/rpm |
73.5/2000 |
