Summary
- Weight:3500kg
- Dimension(L*W*H):2675*1318*2680mm
- Power(W):30kW
- Model Number:XMR353E
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:35%
- Travel Speed:0-9.5km/h
- Static Linear Pressure:362N/cm
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:3500.000kg
- Condition:New
- Moving Type:Wheel
- Vibrational frequency:52Hz
- Exciting Force:27KN
- Roller diameter:1800mm
- Roller width:2800mm
- Fuel tank capacity:66L
- Hydraulic tank capacity:52L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

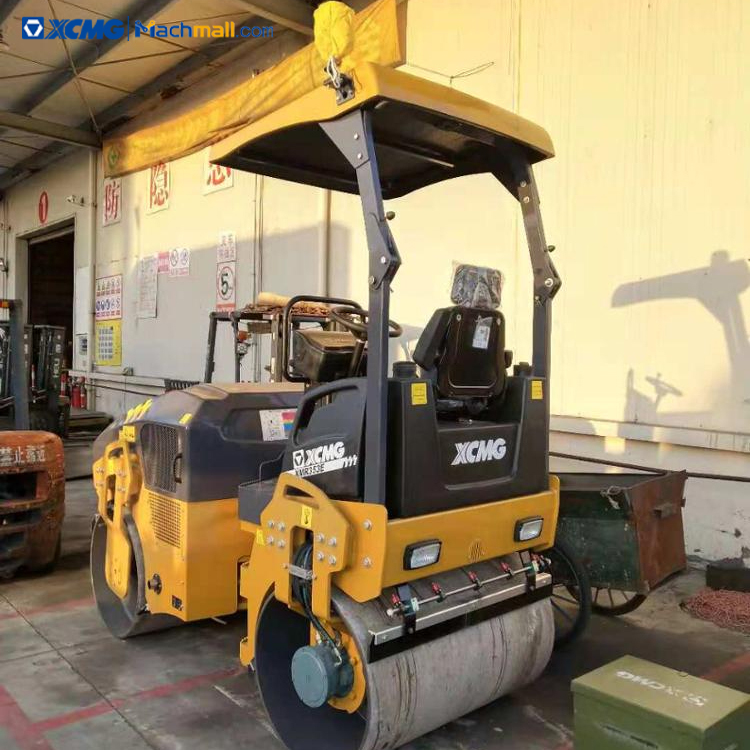

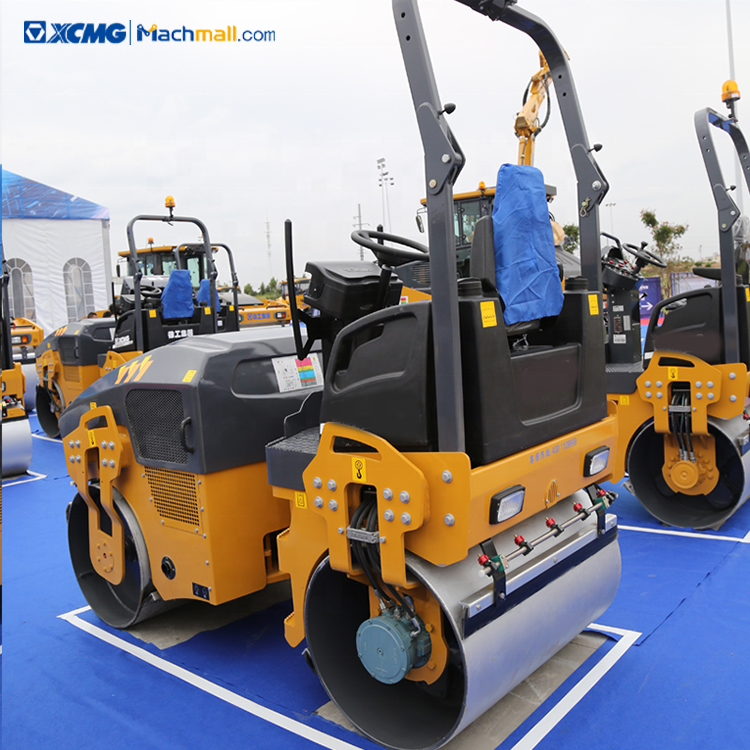

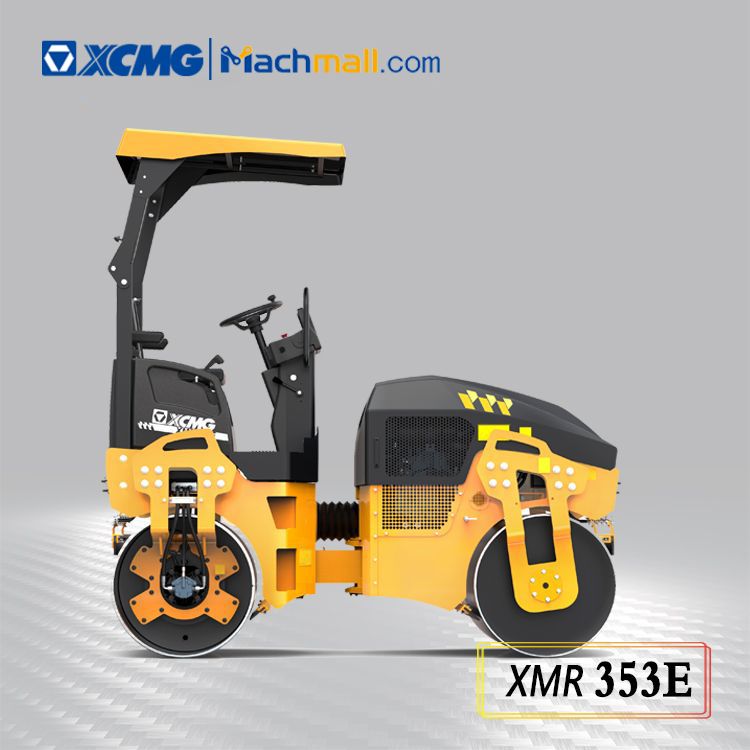

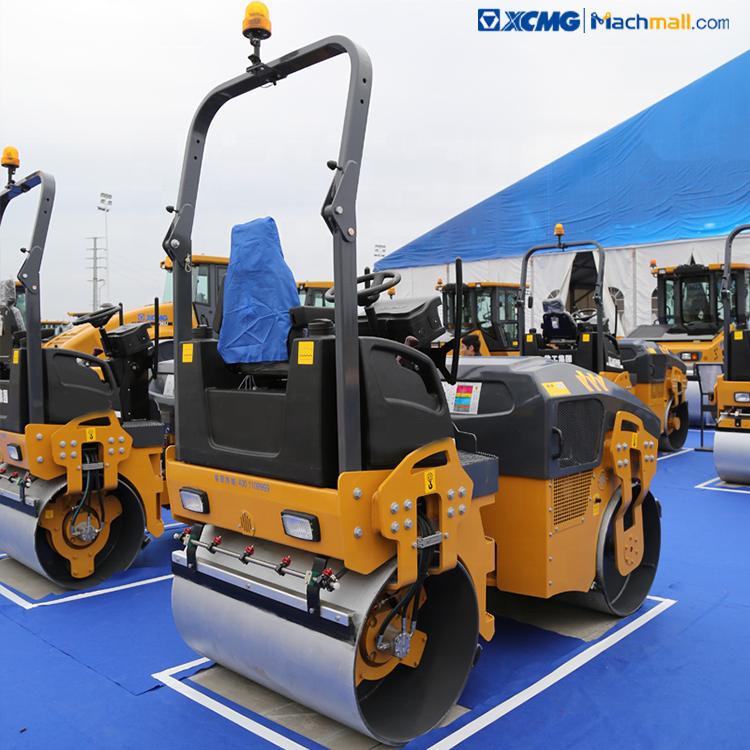

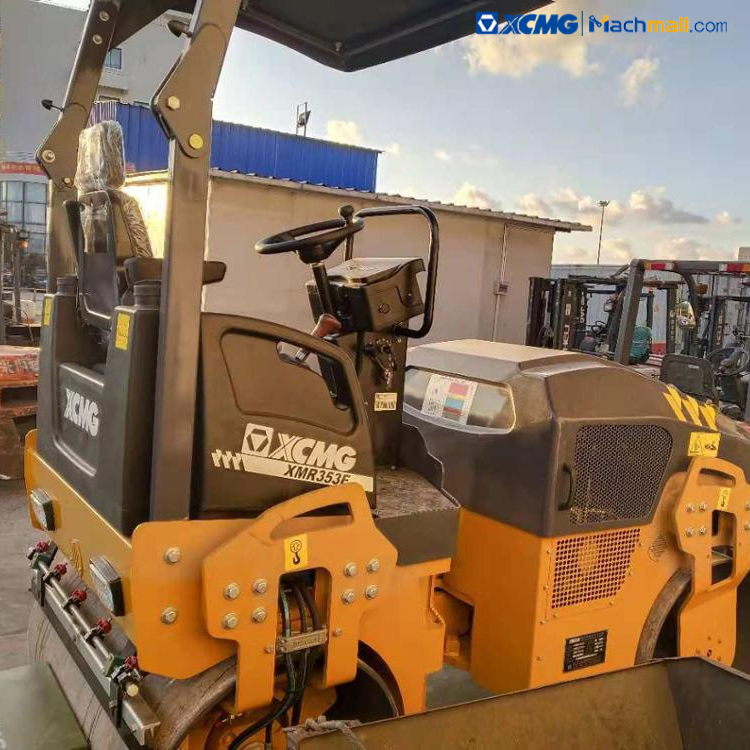

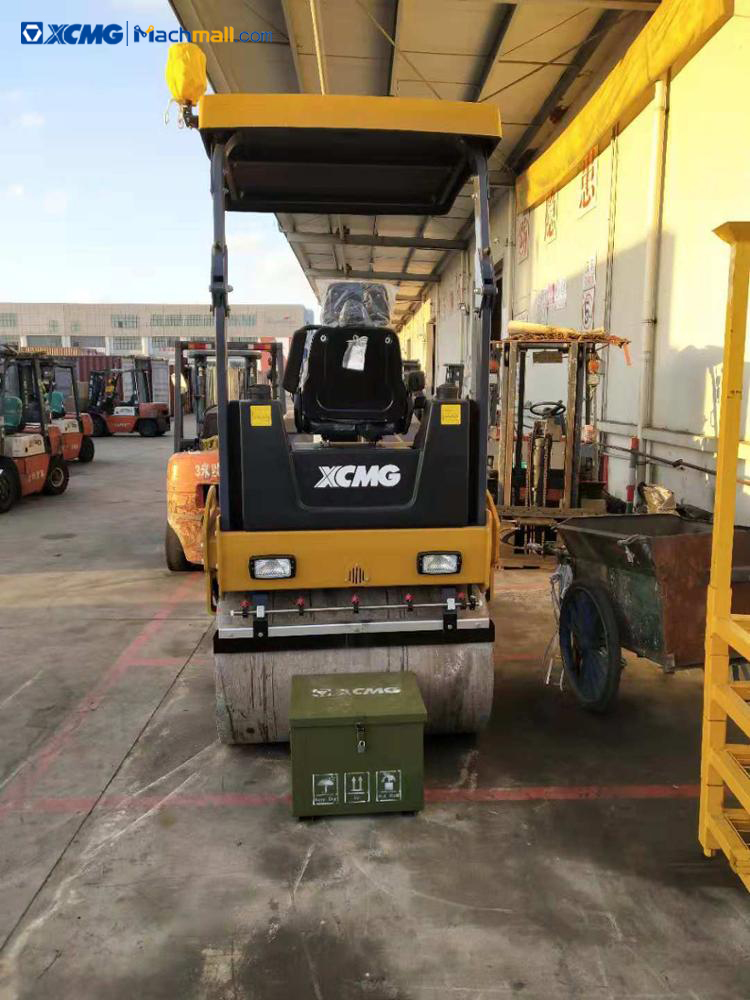

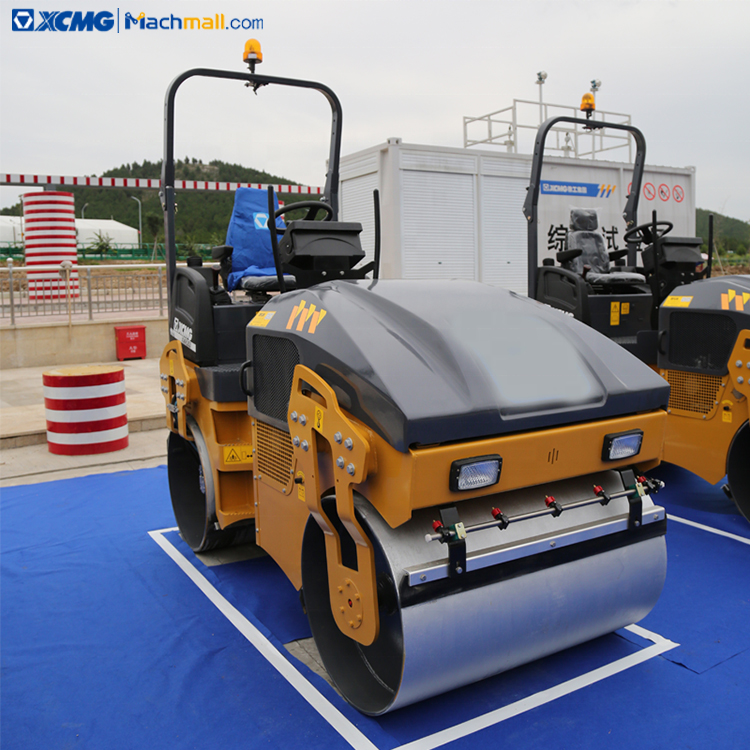

XCMG XMR353E 3 ton light road roller.
XCMG road roller XMR353E is a single-drive single-vibration light roller. XCMG road roller XMR353E is characterized by small amplitude and high frequency, and it carries mud scraping and sprinkler devices.

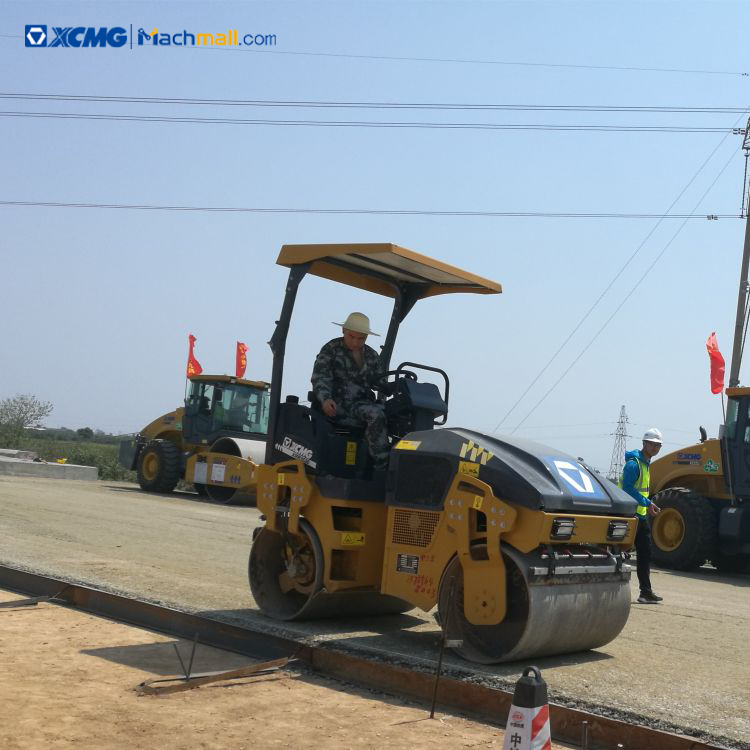

XCMG road roller XMR353E can also disconnect the vibration and replace the static roller compactor for road leveling and compaction and fill layer pre-compaction.
Performance Characteristics:
1. Adopt pressure equalization technology to ensure the uniformity of compaction of the material being pressed.
2. The structure design of the long-life vibrating wheel ensures the reliability and service life of the product.
3. The design of large excitation force ensures the high efficiency of compaction and the depth of influence.
4. Large ground clearance and curb clearance to ensure compaction operations in various working conditions.
5. With start-up preheating function, it can realize low-temperature cold start and adapt to low-temperature working environment.
6. Good vision design of the whole machine to ensure the safety and visibility of operation.
7. The water tank has a large volume, which can reduce the time of stopping and adding water and improve work efficiency.
|

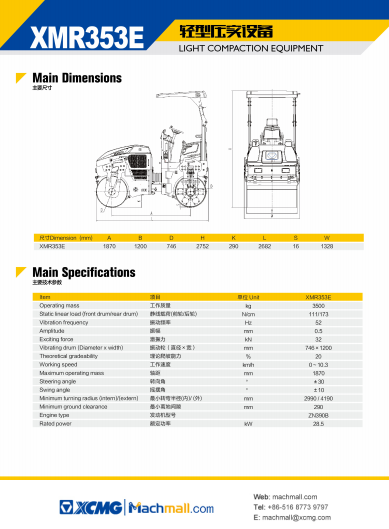

Description |
Unit |
XMR353E |
|
Operating weight |
kg |
3500 |
|
Roller diameter |
mm |
1800 |
|
Roller width |
mm |
2800 |
|
Final drive |
|
Gear |
|
Speed |
km/h |
0-9.5 |
|
Grade ability |
% |
35 |
|
Centrifugal force |
kN |
27 |
|
Frequency |
Hz |
52 |
|
Engine model |
|
F2L2011 |
|
Rated speed |
r/min |
2600 |
|
Rated power |
kw |
30 |
|
Fuel tank capacity |
L |
66 |
|
Hydraulic tank capacity |
L |
52 |
|
Sprinkler capacity |
L |
220 |
|
Overall Dimensions(L/W/H) |
mm |
2675*1318*2680 |
