16ton XCMG single drum road roller XS163H price
![](/app/topc/statics/images/close.png)
![16ton XCMG single drum road roller XS163H price](http://www.machmall.com/images/store/357636/item/c654ab4e60fc8018ef414c94e5d67791.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:16000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):110kW
- Model Number:XS163H
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-7.3km/h
- Static Linear Pressure:362N/CM
- Type:Vibratory Single Drum Road Roller
- Certification:CE/ISO9001
Specifications
- weight:16000.000kg
- Condition:New
- Moving Type:Wheel
- Exciting force:290/200kN
- Norminal amplitude:1.8/0.9mm
- Vibrational frequency:28/33Hz
- Rated speed:2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

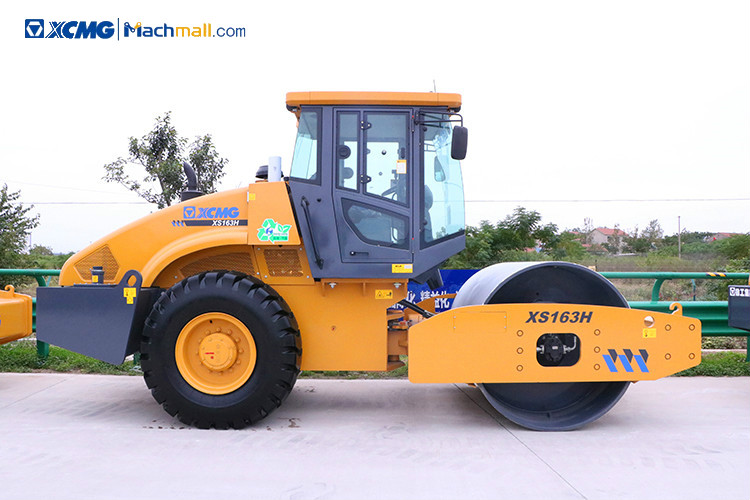

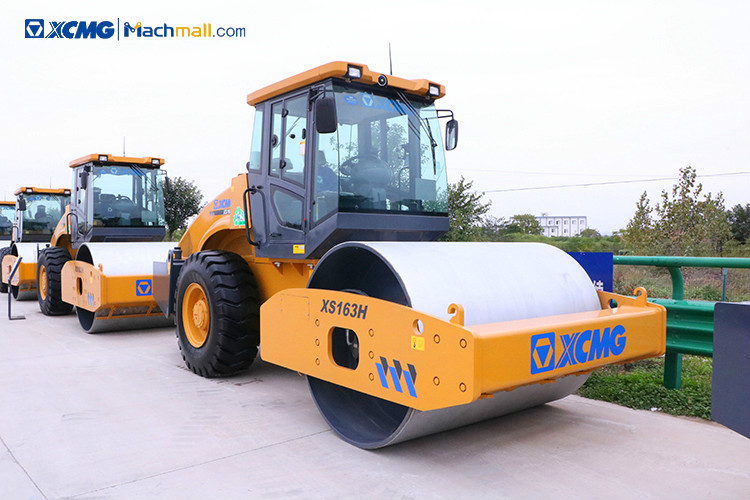

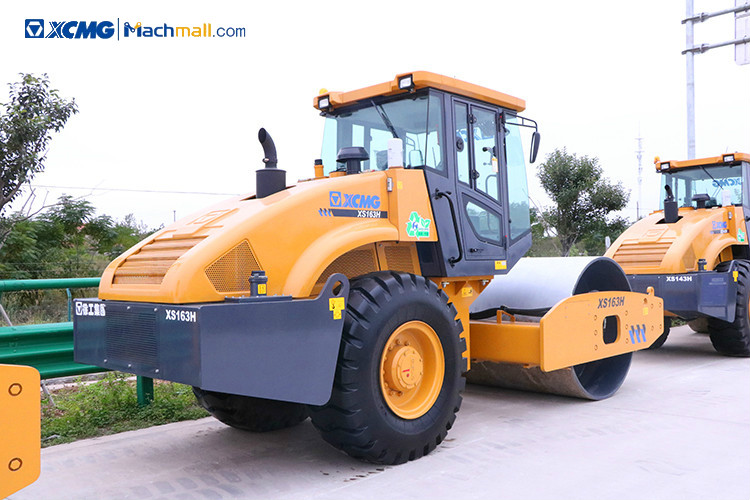

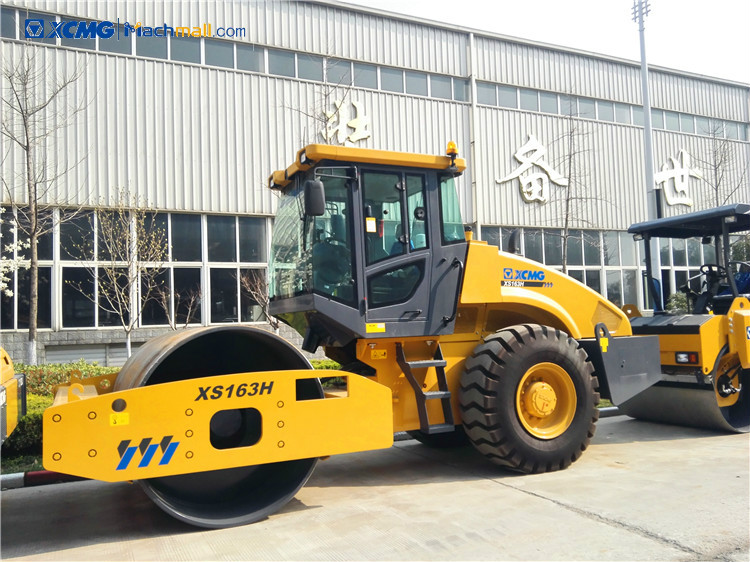

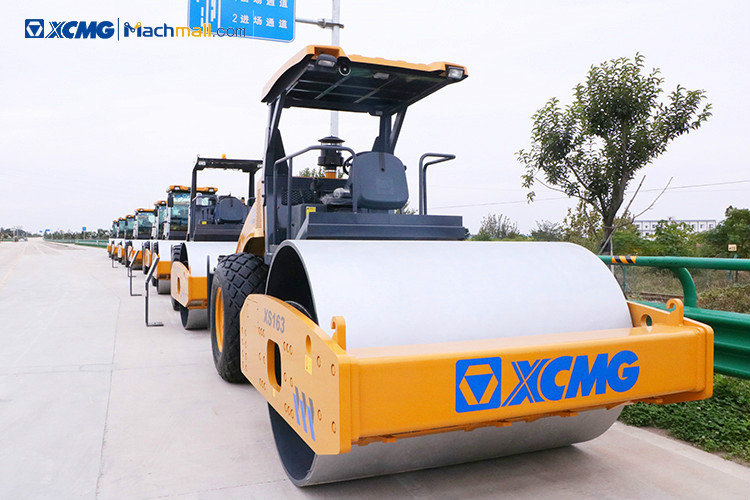

16ton XCMG single drum road roller XS163H.
XCMG road roller XS163H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
And XCMG road roller XS163H is also suitable to the compaction of concrete and stabillized soil base materials in various large projects, with the maximum working depth up to 1.0m and above.
Thus, XCMG road roller XS163H is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Performance Characteristics:
1.XCMG road roller XS163H use the air-air intercooling low-speed diesel engine manufactured by Shanghai. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.
2.XCMG road roller XS163H ensure better drive performance and gradeability.
3.One gear infinitely variable speeds to ensure optimized working speed under different working conditions.
4.Dual frequency and dual amplitude, meeting the requirements of different working conditions.
5.Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.
6.Providing service, parking and emergency function and ensures driving safety.
Item |
Unit |
Parameter |
|
Work weight |
kg |
16000 |
|
Drive wheel distribution weight |
kg |
8000 |
|
Vibratory drum distribution weight |
kg |
8000 |
|
Static line load |
N/cm |
362 |
|
Vibration frequency |
Hz |
28/33 |
|
Theoretical amplitude |
mm |
1.8/0.9 |
|
Exciting force |
kN |
290/200 |
|
Speed range |
km/h |
0~7.3 |
|
Wheelbase |
mm |
3040 |
|
Compaction width |
mm |
2130 |
|
Theoretical climbing ability |
% |
30 |
|
Minimum turning radius |
mm |
6800 |
|
Vibratory drum diameter |
mm |
1523 |
|
Minimum ground clearance |
mm |
431 |
|
Engine |
model |
|
SC7H150G2 |
Rated speed |
r/min |
2200 |
|
Rated power |
kW |
110 |
|
Dimensions |
mm |
6150×2300×3200 |
|
Vibration system pressure |
MPa |
18 |
|
Steering system pressure |
MPa |
16 |
