Summary
- Weight:12000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):100kW
- Model Number:XS123H
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-7.3km/h
- Static Linear Pressure:258N/cm
- Type:Vibratory Single Drum Road Roller
- Certification:CE/ISO9001
Specifications
- weight:12000.000kg
- Condition:New
- Moving Type:Wheel
- Exciting force:240/160kN
- Norminal amplitude:1.8/0.9mm
- Vibrational frequency:30/35Hz
- Rated speed:2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

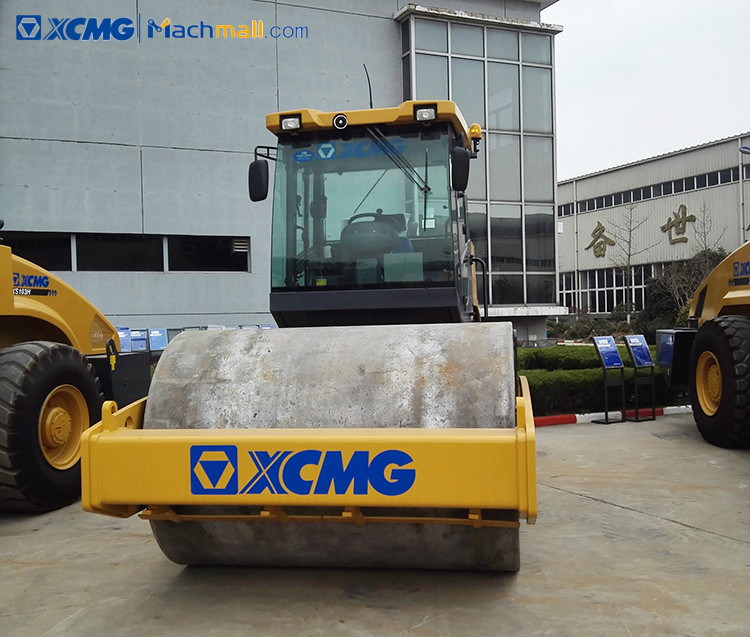

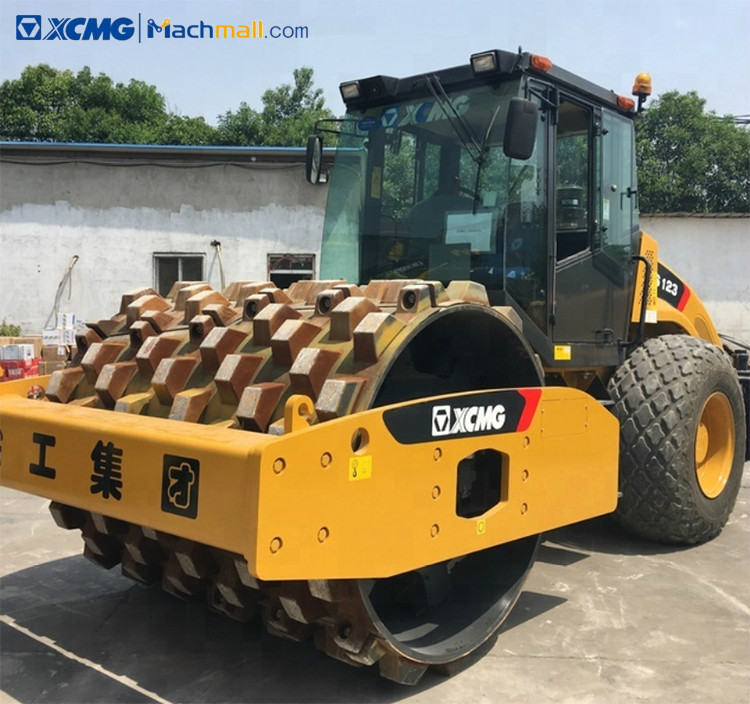

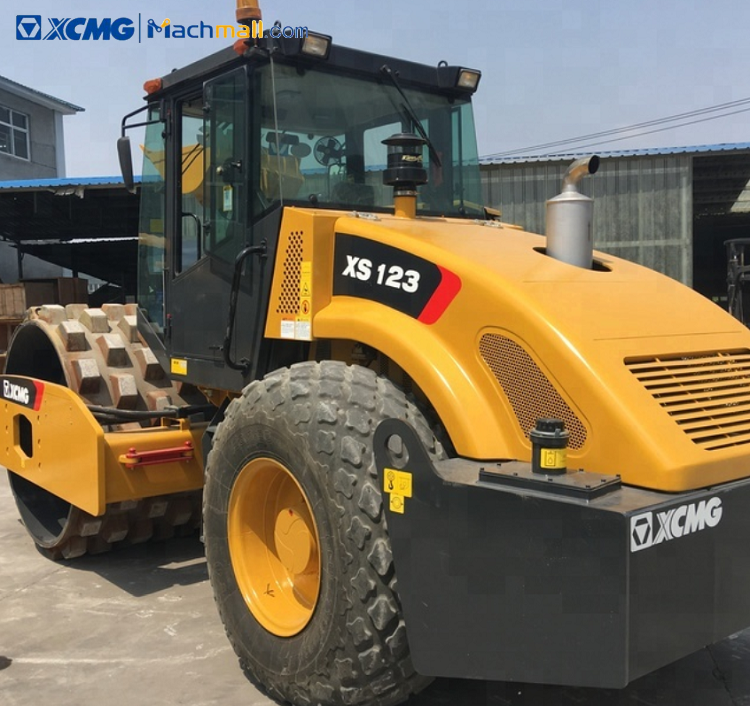

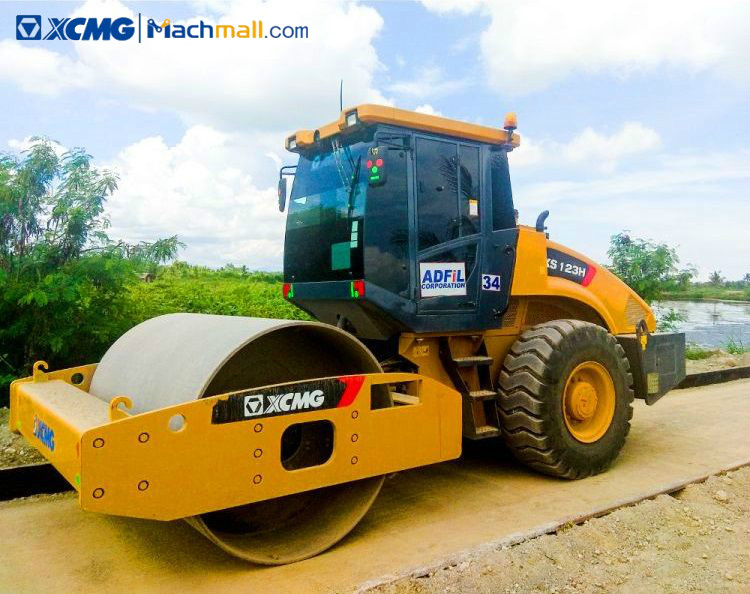

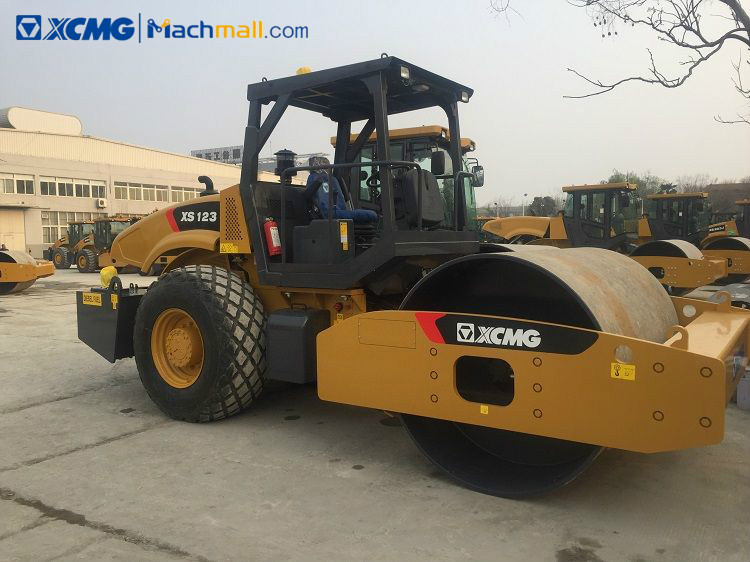

12 ton XCMG road roller XS123H.
XCMG roller roller XS123H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
XCMG roller roller XS123H is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Performance Characteristics:
1.Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
2.One gear infinitely variable speeds to ensure optimized working speed under different working conditions.
3.Dual frequency and dual amplitude, meeting the requirements of different working conditions.
4.Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction effnciency.
5.Adopting the streamlined model, moderm and good appearance of driving cabin and broad visibility.
6.With large opening angle, the hood is light and flexible, and can be safely parked in any position, which is very convenient for maintenance.
7.Engine hood is the one piece metal structure with arc slope and uses the single- pole supported and electronically controlled liting device to guarantee convenient operation and stable lifting.
8.Side plate of pressure wheel frame is connected by using the countersink method, which can effectively reduce the vehicle loading width and facilitate the container transportation.
Item |
Unit |
XS123H |
Operating mass |
kg |
12000 |
Distributed mass of Drive drum |
kg |
6400 |
Distributed mass of vibration drum |
kg |
5600 |
Static linear load |
N/cm |
258 |
Vibrational frequency |
Hz |
30/35 |
Theoretical amplitude |
mm |
1.8/0.9 |
Exciting force |
kN |
240/160 |
Range of speed |
km/h |
0~7.3 |
Wheel base |
mm |
3040 |
Compaction width |
mm |
2130 |
Theoretical gradeability |
% |
30 |
Minimum turning radius |
mm |
6800 |
Drum diameter |
mm |
1513 |
Minimum ground clearance |
mm |
431 |
Engine rated speed |
r/min |
2200 |
Engine rated power |
kW |
100 |
Overall dimension (length*width*height) |
mm |
6150*2300*3200 |
