Summary
- Weight:19ton
- Dimension(L*W*H):6590*2600*3942mm
- Model Number:RP603L
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Paving Width:2.7-4.75m
- Max. Paving Thickness:260mm
- Power(W):103/2200kw/rpm
- Production Capacity:400T/H
- Certification:CE/ISO9001
Specifications
- Weight:19000.000kg
- Condition:New
- Moving Type:Wheel
- Maximum Travel Speed:15m/min
- Maximum Paving Speed:15m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

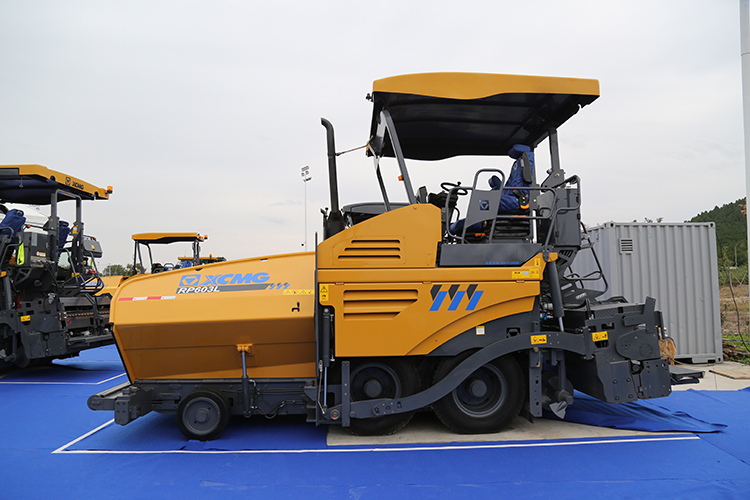

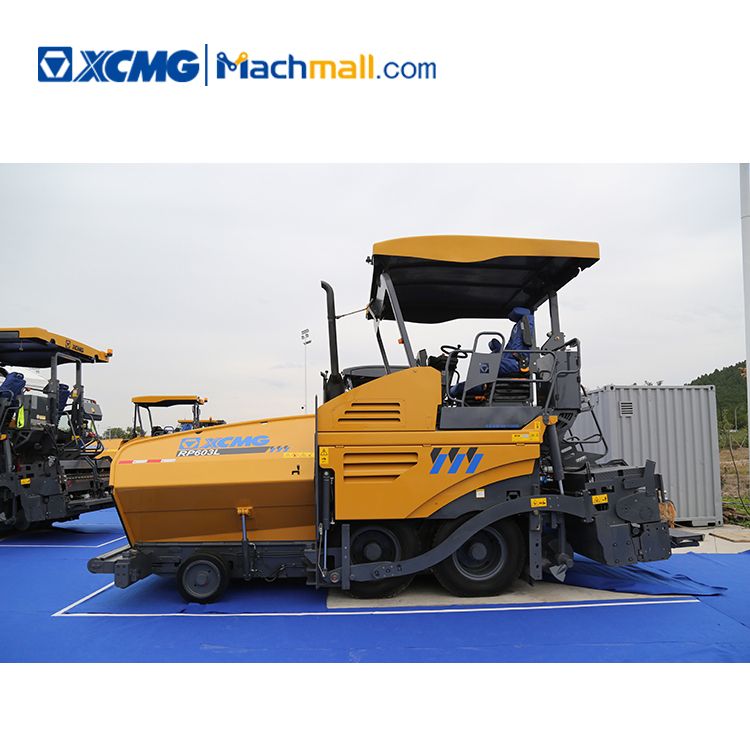

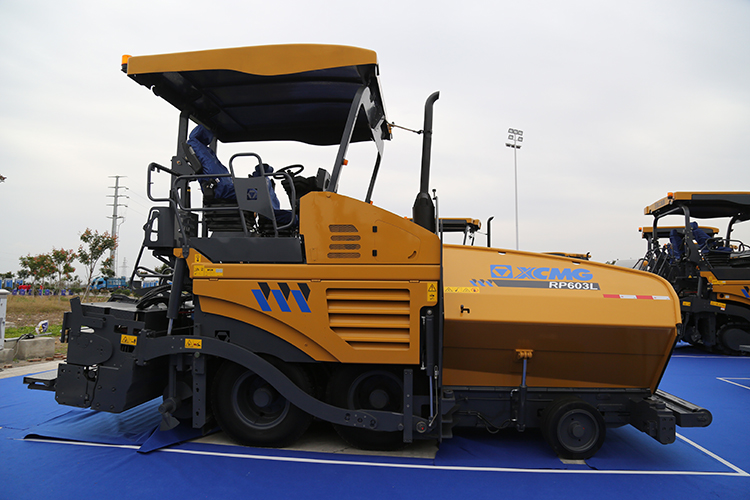

XCMG factory 6m concrete road paver RP603L.
XCMG road paver RP603L paver pavement width of 2.5m to 6.0m and flexibility of transition of tire paver, fully hydraulic four-wheel drive, continuously variable, with SC4H water-cooled engine (103kw/2200rpm).
XCMG road paver RP603L's hydraulic system using electro-hydraulic proportional control technology, independent transmission and distribution drive, so that the power output is efficient.

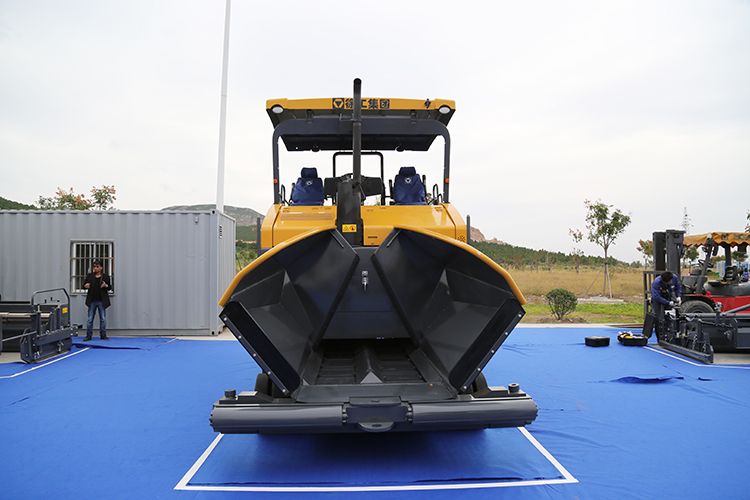

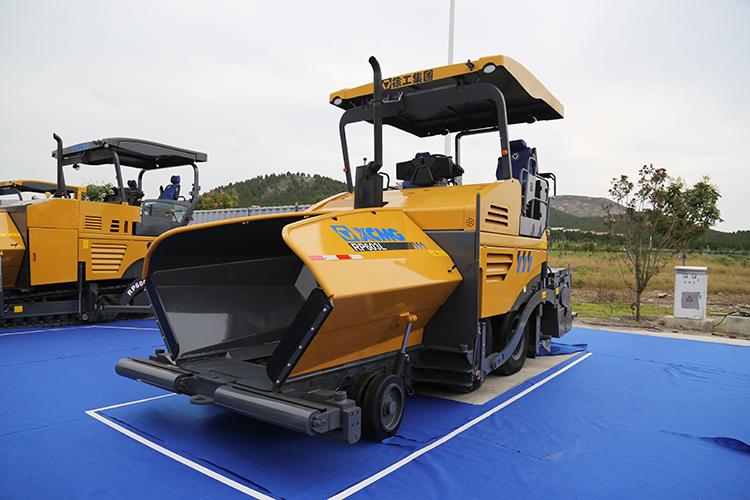

13t hopper design is large, the new compact left and right independently drive the delivery bin, the distribution device can be easily moved up and down to adapt to different paving thickness, reduce the material segregation.
Electricity the control system design is based on the CAN bus technology.
The automatic leveling device can be used to control the paving thickness and slope accurately. The vertical flatness can reach 3mm/3m and the transverse gradient is within 0.02%.
