Summary
- Weight:7500kg
- Dimension(L*W*H):4910*1450*1935mm
- Model Number:RP355
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Paving Width:1.2-2.2m
- Max. Paving Thickness:200mm
- Power(W):53kw/2200rpm
- Production Capacity:300T/H
- Certification:CE/ISO9001
Specifications
- weight:7500.000kg
- Condition:New
- Moving Type:Crawler
- Maximum Paving Speed:3.2km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

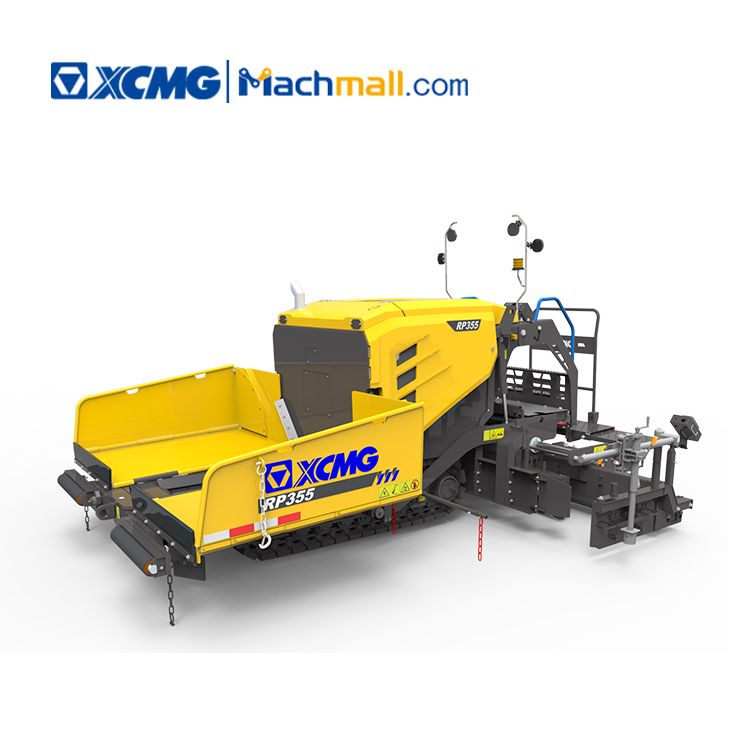

XCMG official 53KW mini concrete road paver RP355.
XCMG road paver RP355 is a mini crawler paver with a paving width of 0.5~3.5m, with a compact body and flexible use. Using full hydraulic drive and intelligent electronic control system, the performance is stable and reliable.

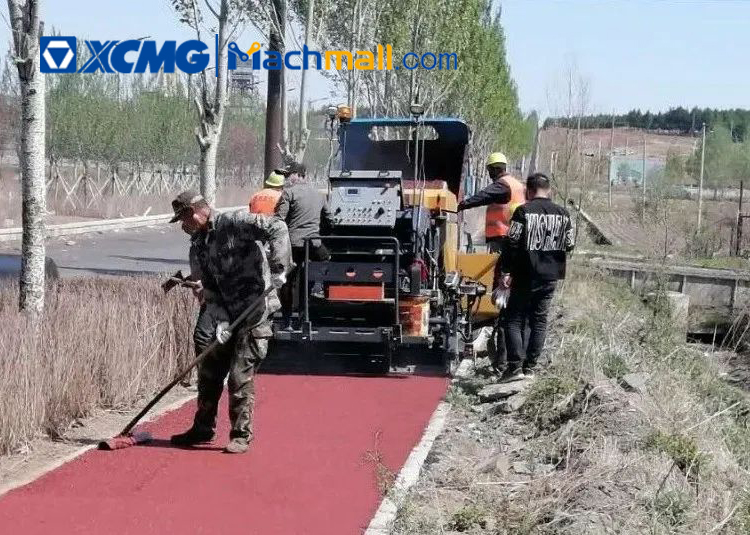

XCMG road paver RP355 mainly used for pavement milling grooves and ravine backfilling, urban non-motorized vehicle lane construction, island and tourist attraction road construction, garden landscape, community road construction and stadium construction, while meeting the user's operation requirements for indoor and height-limited construction in special conditions.
Performance Characteristics:
1. XCMG RP355 road paver equipped with Cummins water-cooled turbocharged electronically controlled diesel engine, with sufficient power reserve, good diesel atomization, good economy, low noise, long life, and wide application range.
2. Intelligent integrated control technology, with multi-functional display panel, human-computer interaction is closer.
3. The generator adopts independent driving technology, which improves the utilization rate of the generator, increases the reliability of the components, and saves energy.
4. XCMG road paver RP355 equipped with an independent heat dissipation system to reduce the influence of engine speed fluctuations and achieve the best heat dissipation effect.
5. Innovative design of E220 small telescopic screed, adopts double-pipe telescopic mechanism, applies suspension eccentric torsion limiting technology, and has strong anti-deformation ability.
6. XCMG RP355 road paver equipped with a single vibrating compaction device, which improves the construction stability and the quality of road surface forming.
Item |
parameter |
Model Number |
RP355 |
Full Weight |
7500kg |
Overall Dimension(LxWxH) |
4910x1450x1935mm |
Basic Pave Width |
1.2-2.2m |
Maximum Pave Width |
3.5m |
Maximum Layer Thickness |
200mm |
Maximum Travel Speed |
25m/min |
Maximum Paving Speed |
3.2km/h |
Maximum Laydown Rate |
300t/h |
Engine Rated Power |
53kw/2200rpm |
