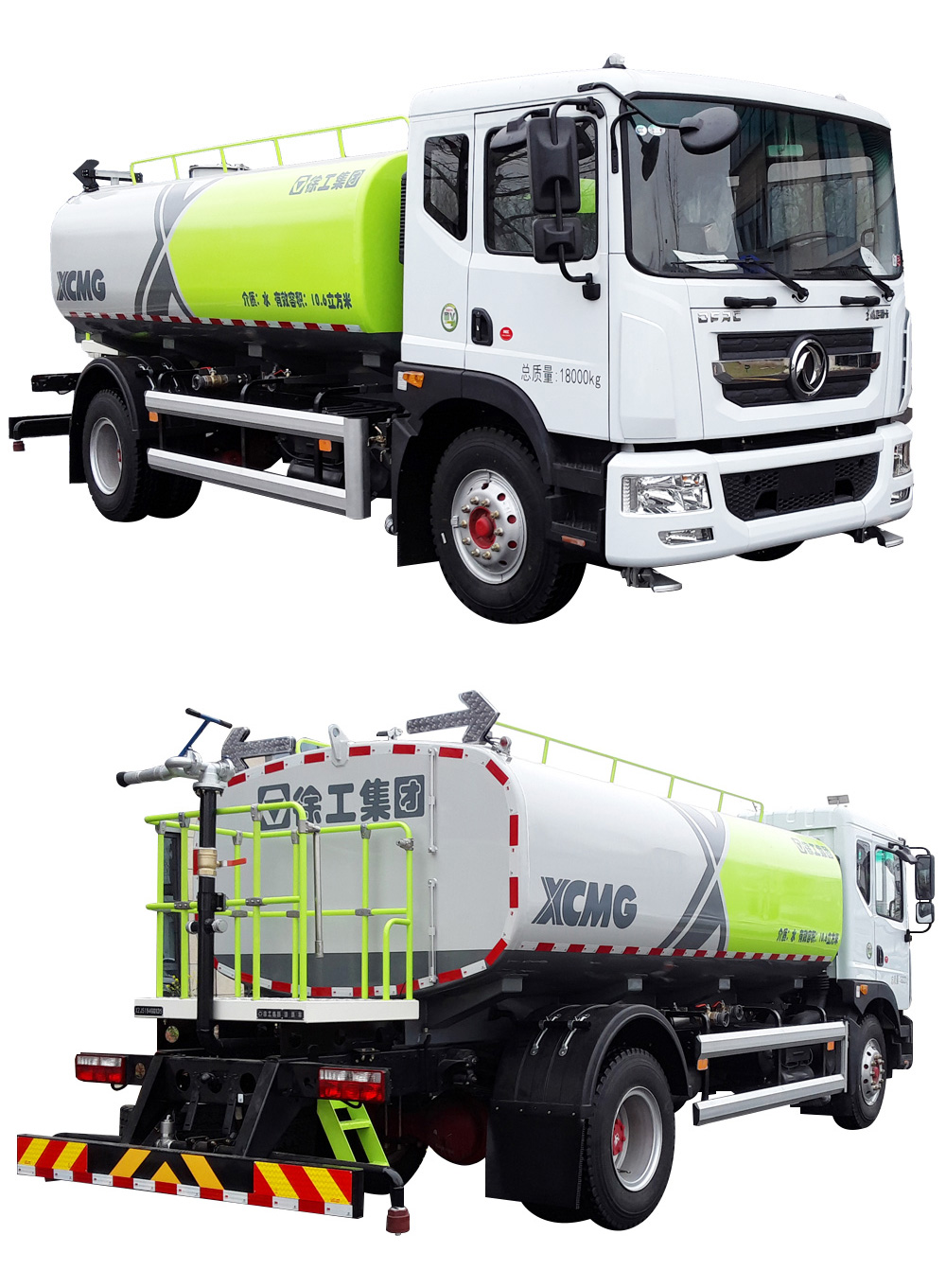

XCMG Official XZJ5184GQXD5 Cleaning Truck for sale
Specifications
- Weight:7460.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:4500mm
- Front overhang:1230mm
- Rear overhang:2320mm
- Maximum total mass:18000kg
- Length × width × height:8050×2520×2910mm
- Curing quality:7460kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XZJ5184GQXD5 cleaning vehicle has independent high and low pressure
water system. High pressure water can clean road surface, curb, sidewalk and
guardrail isolation area; high pressure spray gun can also clean road signs,
billboards and elevated roads. The spray system features powerful spray
dusting, aerosol disinfection and air humidity adjustment. The low-pressure
waterway system can be used for watering, dusting, and greening.
|
Project |
Content |
Parameter |
|
Chassis parameters |
Model |
EQ1181LJ9BDE |
|
Power Kw |
132/136/155 |
|
|
Wheelbase (mm) |
4500 |
|
|
Front overhang /
rear overhang (mm) |
1230/2320 |
|
|
Vehicle parameters |
Maximum total mass (kg) |
18000 |
|
Length × width ×
height (mm) |
8050×2520×2910 |
|
|
Curing quality (kg) |
7460 |
|
|
Work performance
parameter |
Effective volume of
tank (m3) |
10.8 |
|
Working speed
(km/h) |
5～20 |
|
|
Sprinkling width
(m) |
≥16 |
|
|
Flush width (m) |
≥24 |
|
|
Nozzle Flush System
Pressure (kPa) |
≥300 |
|
|
Gun flushing flow
rate (L/min) |
≥60 |
|
|
Spray gun range (m) |
≥36 |
|
|
Self-priming height
(m) |
6.5 |
