XCMG Official XM1003 Road Milling Machine for sale, MACHMALL

Engineering & Construction Machinery > Road Construction & Maintenance Machinery > Milling Machine

XCMG Official XM1003 Road Milling Machine for sale

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official XM1003 Road Milling Machine for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Milling width (mm)

Milling depth (mm)

Certification

Engineering & Construction Machinery

4690mm x 2500mm x 3500mm

15600kg

162kW

XM1003

XCMG

China

1000mm

180mm

CE/ISO9001

+ Add a Product

Summary

Dimension(L*W*H):4690mm x 2500mm x 3500mm
Weight:15600kg
Power(W):162kW
Model Number:XM1003
Brand Name:XCMG
Place of Origin:China
Milling width (mm):1000mm
Milling depth (mm):180mm
Certification:CE/ISO9001

Specifications

Weight:16800.000kg
Condition:New
Moving Type:Wheel

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official XM1003 Road Milling Machine for sale

	Item	XM1003
Milling drum	Milling width	1000mm
	Milling depth	180mm
	Cutter spacing	18mm
	Number of cutters	82
	Diameter of rotor(including cutter)	700mm
Engine	Manufacturer	Shangchai
	Model	SC9DK220G3
	Cooling type	Water cooling
	Number of cylinders	6
	Rated power/2,200rpm	162kW
	Displacement	8.8L
	Full-load fuel consupmtion	36.7L
	Composite fuel consumption	12.3L
	Emission standard	China-III
	Electric system	24V
Capacities of tanks	Fuel tank	350L
	hydraulic oil tank	130L
	Water tank	800L
Driving performance	Maximum working speed	45m/min
	Maximum traveling speed	8km/h
	Theoretical gradeability	50%
	Ground clearance	180mm
Tires	Type of tires	Solid rubber tires
	Front tire specification	645mm x 300mm
	Rear tire specification	645mm x300mm
Conveyance of milled material	Belt width	400mm
Conveyance of milled material	Theoretic conveyance capacity	84m3/h

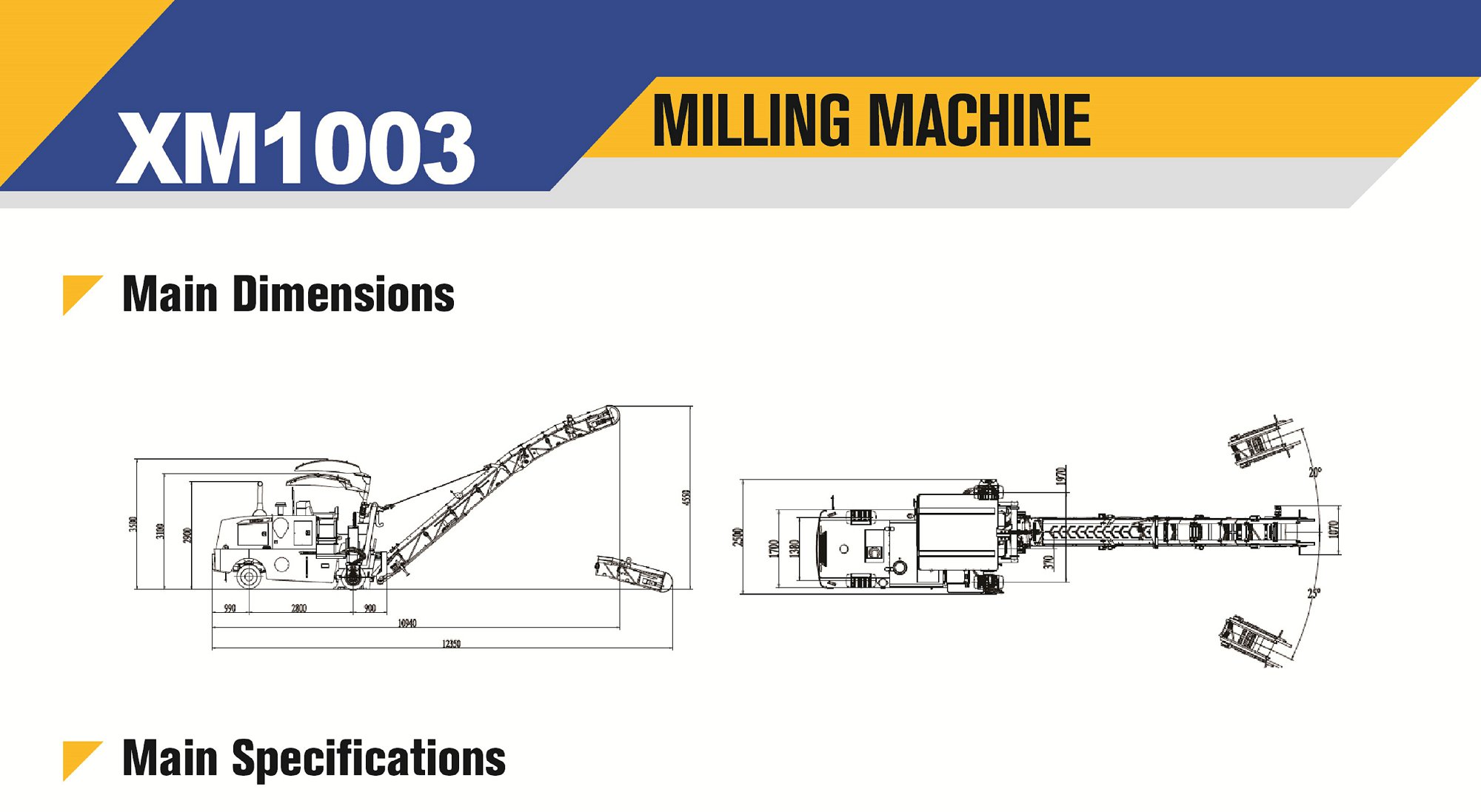

Transport dimensions	Machine dimensions(L x W x H)	4690mm x 2500mm x 3500mm
	Main machine dimensions(With right outrigger swung info frame(L x W x H)	4690mm x 1950mm x 3500mm
	Folded conveyor dimensions(L x W x H)	8050mm x 1070mm x 980mm
Machine weights	Operating weight	15600kg
	Front axle load(Under operating weight	6700kg
	Rear axle load(Under Operating weight)	8900kg
