Summary
- Weight:1680kg
- Power(W):17.6kW
- Model Number:XMR153
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:10.5km/h
- Static Linear Pressure:92N/cm
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:1680.000kg
- Condition:New
- Moving Type:Wheel
- Vibrational frequency:65Hz
- Exciting Force:17kN
- Wheelbase:1550mm
- Minimum ground clearance:235mm
- Minimum turning radius:3050mm
- Drum diameter:582mm
- Drum width:900mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

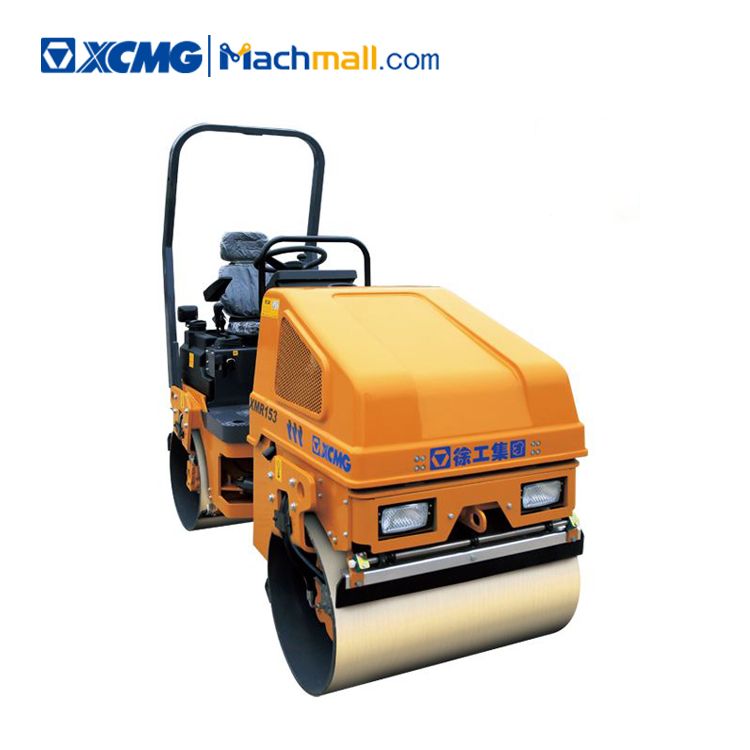

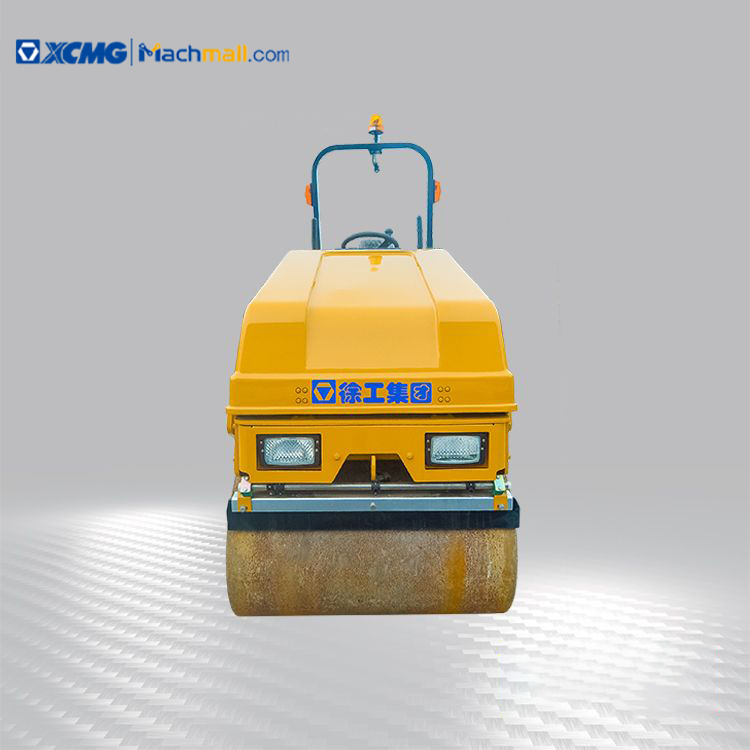

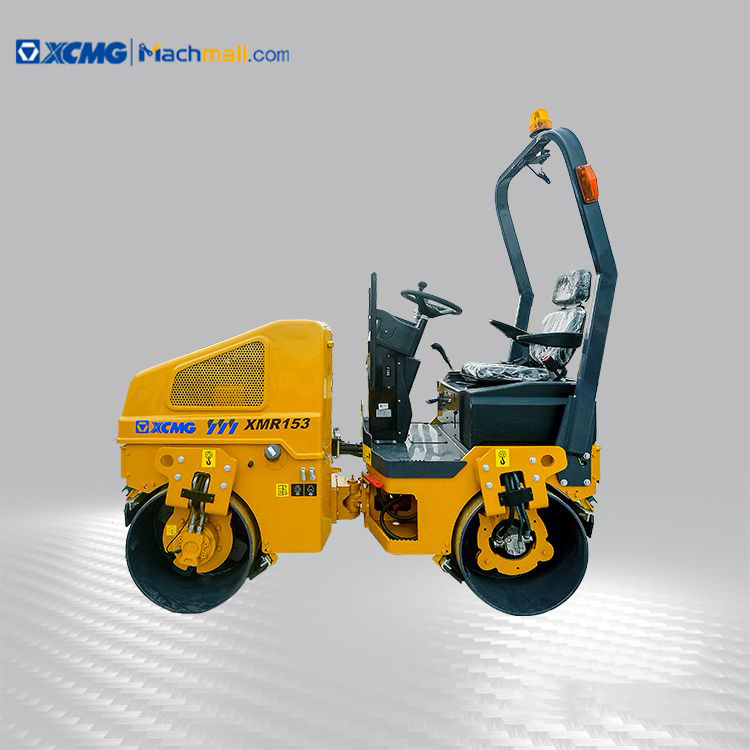

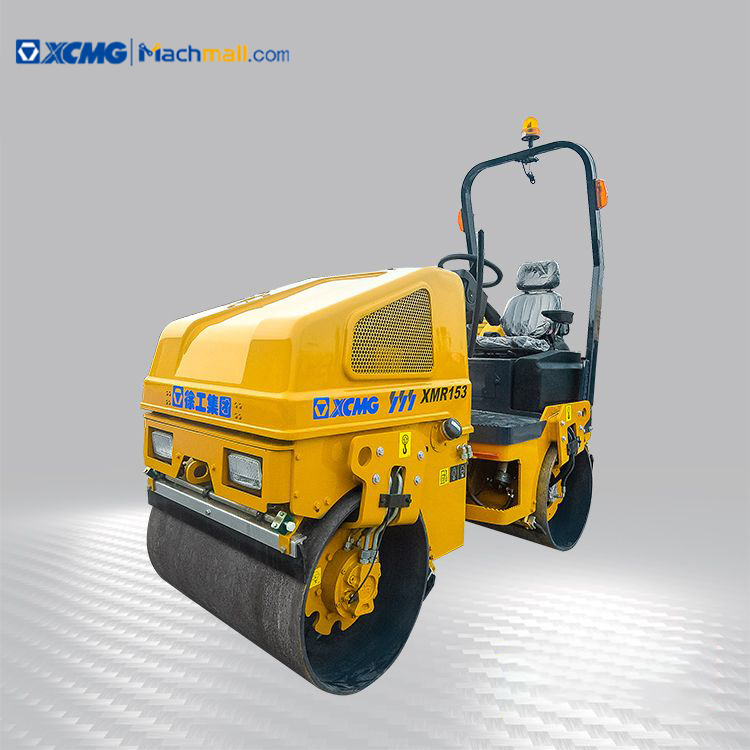

1 ton XCMG mini road roller compactor XMR153.
XCMG mini road roller XMR153 is a light vibratory roller with operating weight of 1.68 tons. XCMG mini road roller XMR153 is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work.
Thus, XCMG mini road roller XMR153 is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bikeway compaction, as well as a variety of road maintenance engineering.
Performance Characteristics:
1. XCMG mini road roller XMR153 Closed hydraulic drive system is adopted to realize stepless speed change.
2. Brake system uses the neutral position braking, ensuring the safety of the product.
3. The front vision of machine is less than 1 x 0.75 m, rear view without any shade, which provides drivers with a good sight range.
4. The vibration system can meets the different working conditions.
5. High frequency vibration and excitation force design, high working efficiency, good compaction effect.
6. Vibration drum width is larger than frame width, convenient to observe compac-tion condition of drum edge in the construction.
|

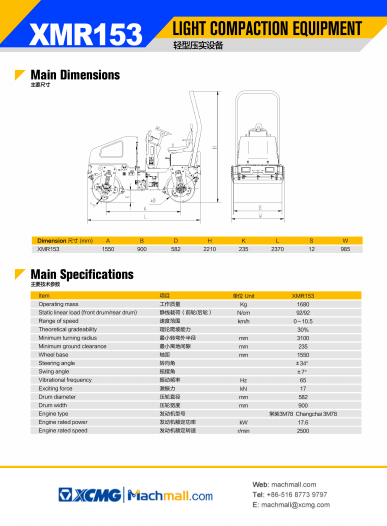

Item |
Unit |
XMR153 |
|
Operating mass |
kg |
1680 |
|
Static linear load (front drum/rear drum) |
N/cm |
92/92 |
|
Range of speed |
km/h |
0～10.5 |
|
Theoretical gradeability |
% |
30 |
|
Minimum turning radius |
mm |
3050 |
|
Minimum ground clearance |
mm |
235 |
|
Wheel base |
mm |
1550 |
|
Steering angle |
° |
±34 |
|
Swing angle |
° |
±7 |
|
Vibrational frequency |
Hz |
65 |
|
Exciting force |
kN |
17 |
|
Drum diameter |
mm |
582 |
|
Drum width |
mm |
900 |
|
Engine rated power |
kW |
17.6 |
|
Engine rated speed |
r/min |
2500 |
