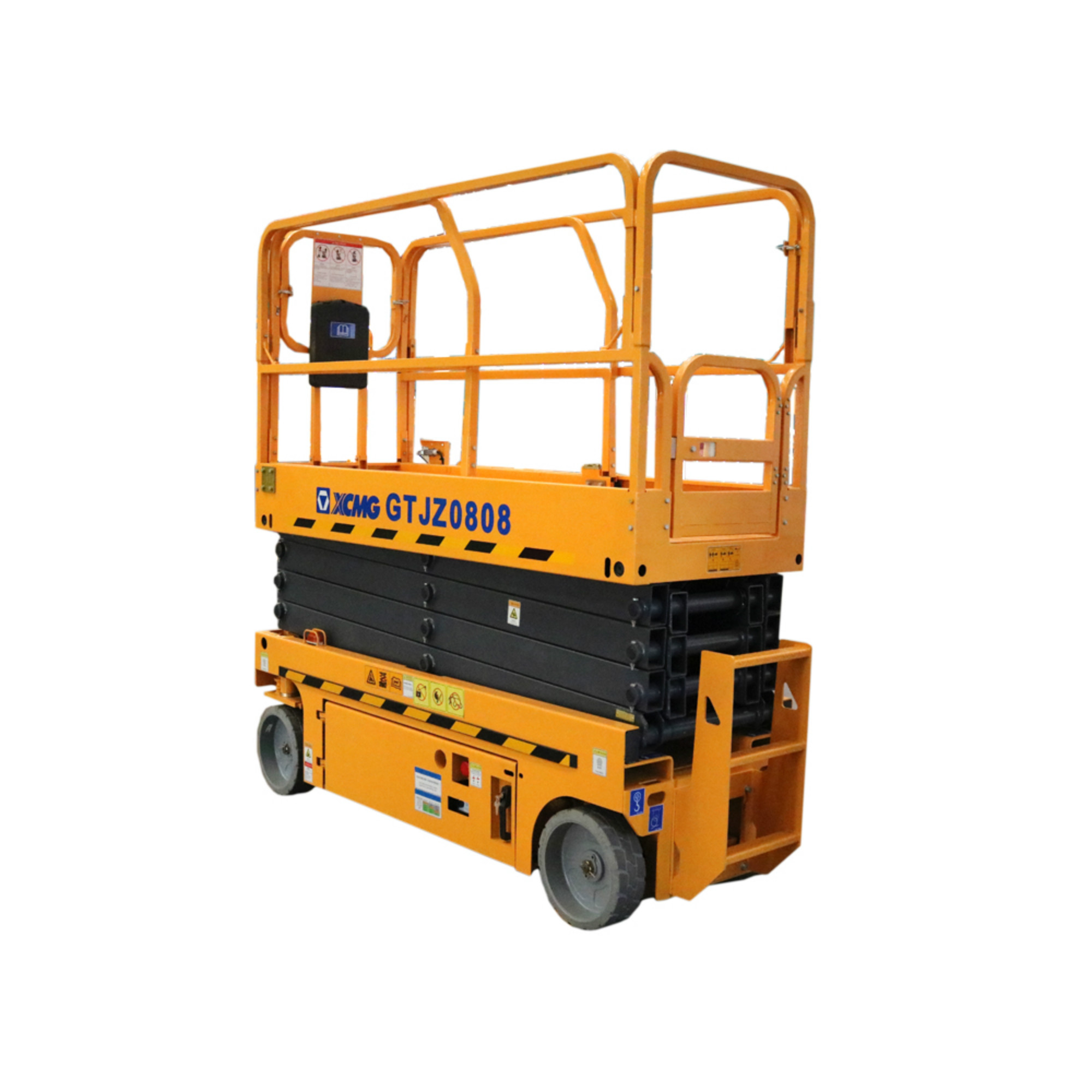

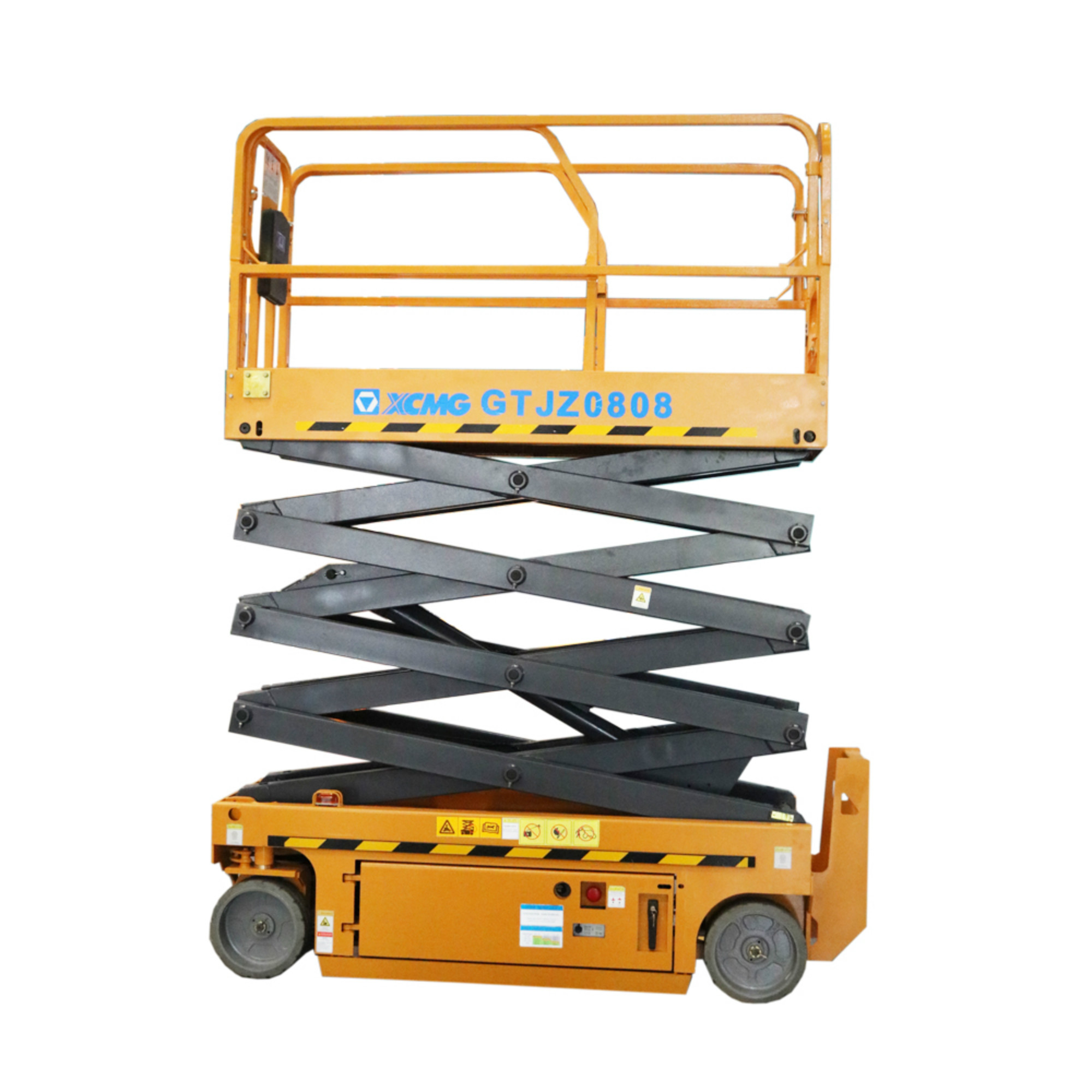

XCMG Official Manufacturer 8m Scissor Lift GTJZ0808
Summary
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:2170.000kg
- Condition:New
- Moving Type:Other
- Overall Length(mm):2485
- Overall Width(mm):830
- Overall Height(Guardrail folding)(mm):2345（1965）
- Wheel Base(mm):1877
- Maximum Working Heigh(m):10
- Maximum Platform Height(m):8
- Maximum Load Capacity（kg）:230
- Extension Platform Load（kg）:115
- Platform Size(mm):2276*825
- Platform Extension Length(mm):900
- Lifting Speed of Working Platform(s):30
- Falling Speed of Working Platform(s):34
- Total Weight(kd):2170
- Travel Speed(High Speed)(km/h):3.5
- Travel Speed(low Speed)(km/h):0.8
- Max.Travel Platform Height(m):8
- Minimum Ground Clearance(mm):100/20
- Maximum Grade Ability(%):25
- Tire Specification:381/127
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
1、Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2、Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3、Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique “zero inner turning radius” works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
| Itmm | Parameter |
| Overall Length(mm) | 2485 |
| Overall Width(mm) | 830 |
| Overall Height(Guardrail folding)(mm) | 2345（1965） |
| Wheel Base(mm) | 1877 |
| Maximum Working Heigh(m) | 10 |
| Maximum Platform Height(m) | 8 |
| Maximum Load Capacity（kg） | 230 |
| Extension Platform Load（kg） | 115 |
| Platform Size(mm) | 2276*825 |
| Platform Extension Length(mm) | 900 |
| Lifting Speed of Working Platform(s) | 30 |
| Falling Speed of Working Platform(s) | 34 |
| Total Weight(kg) | 2170 |
| Travel Speed(High Speed)(km/h) | 3.5 |
| Travel Speed(low Speed)(km/h) | 0.8 |
| Max.Travel Platform Height(m) | 8 |
| Minimum Turning Radius(m) | 0 |
| Minimum Ground Clearance(mm) | 100/20 |
| Maximum Grade Ability(%) | 25 |
| Tire Specification | 381/127 |
| Battery（V/（Ah）） | 4*6（225） |
| Charger（A） | 30 |
| Warning Angle of Inclination （°） | 1.5 |
| 3 |
