XCMG 9 ton strong giant China front wheel loader LW900K
Summary
- Rated Load:9000kg
- Dimension(Long* Breadth * High):9500*3500*3845mm
- Type:wheel loader
- Place of Origin:Jiangsu, China
- Model Number:LW900K
- Brand Name:XCMG
- Certification:CE/ISO90001
Specifications
- Weight:31000.000kg
- Moving Type:Other
- Engine Brand:CUMMINS
- Rated Load:other
- Bucket Capacity:0.5 - 2m³
- Machine Weight:31000kg
- Bucket capacity:5m3
- Reach at maximum lift:1400mm
- Max.horse power:245kN
- Max.breakout force:260kN
- Dump clearance at maximum lift:3400mm
- Power:250KW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

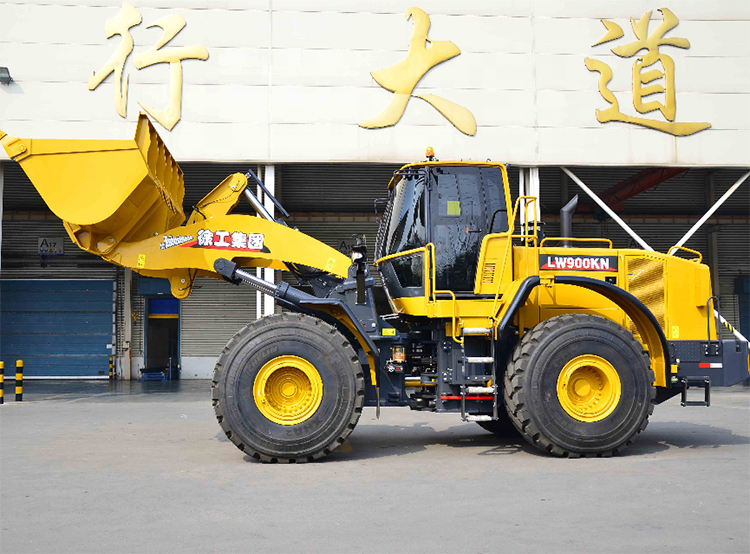

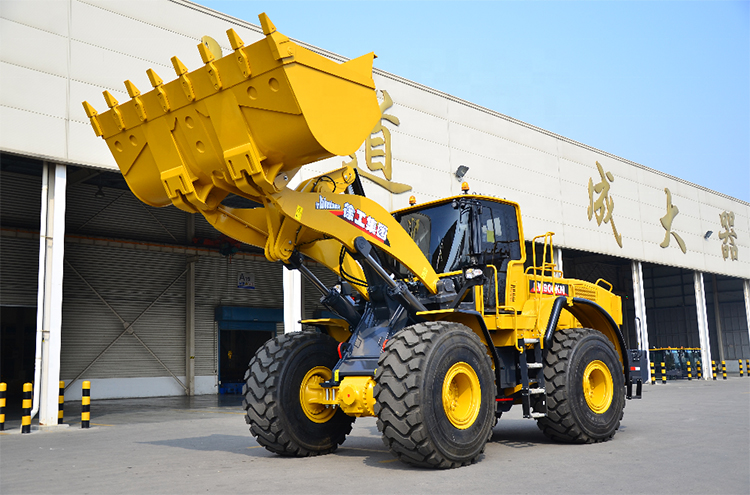

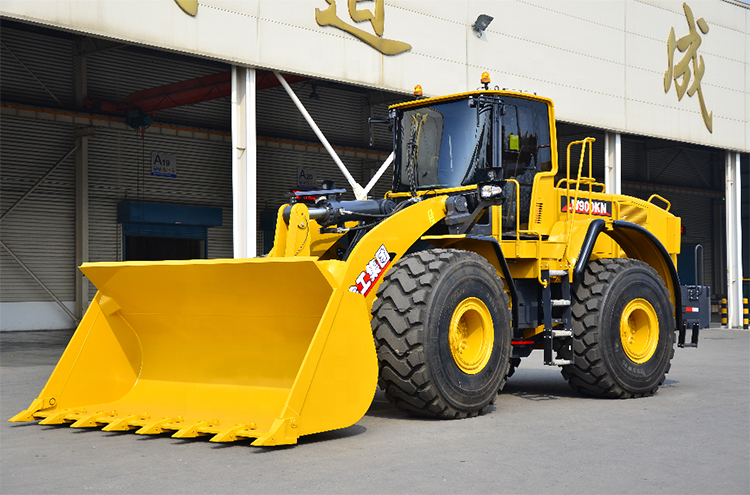

XCMG 9 ton strong giant China front wheel loader LW900K.
LW900KN wheel loader is the latest generation product of world’s advanced level built with all efforts by XCMG with the globalized R&D platform. Featuring strong power, high firmness and reliability, high energy-conservation and efficiency, high driving/riding comfort, and high operation safety, it’s the first-choice production equipment for ports, logistics, and large mines.
Performance Characteristics:
* Ultra-low-noise cab realize higher safety, broader visual field, and better operating comfort.
* Achieve higher efficiency and reliability.
* Meet the operation needs under severe working conditions.
* Greatly improves the utilization efficiency of fuel.
* Thoroughly solve the thermal balance difficult during operations under diversified severe environments.
|
Description |
Unit |
Parameter value |
|
|
Wheel base |
mm |
3600 |
|
|
Tread |
mm |
2460 |
|
|
Dump clearance at maximum lift |
mm |
3400 |
|
|
Reach at maximum lift |
mm |
1400 |
|
|
Height of hinge at maximum lift height |
mm |
4600 |
|
|
Working height(fully lifted) |
mm |
6415 |
|
|
Overall machine dimension L×W×H |
mm |
9500×3500×3845 |
|
|
Rated operating load |
kg |
9000 |
|
|
Bucket capacity |
m³ |
5 |
|
|
Machine weight |
kg |
31000 |
|
|
Max.breakout force |
kN |
260 |
|
|
Max.horse power |
kN |
245 |
|
|
Lifting time of boom |
s |
≤6.5 |
|
|
Total cycle time |
s |
≤11.5 |
|
|
Minimum turning radius (at tire center) |
mm |
6200 |
|
|
Articulation angle |
° |
±38 |
|
|
Gradeability |
° |
25 |
|
|
Tyre size |
29.5R25 |
||
|
EngineModel |
CUMMINS QSM11—C335 |
||
|
Rated Power/Speed |
kW/rpm |
250/2100 |
|
|
Travel Speed |
Ⅰ-gear(F/R) |
km/h |
7/7 |
|
Ⅱ-gear(F/R) |
km/h |
11.6/11.6 |
|
|
Ⅲ-gear(F/R) |
km/h |
24.5/24.5 |
|
|
IV-gear(F/R) |
km/h |
35 |
|
