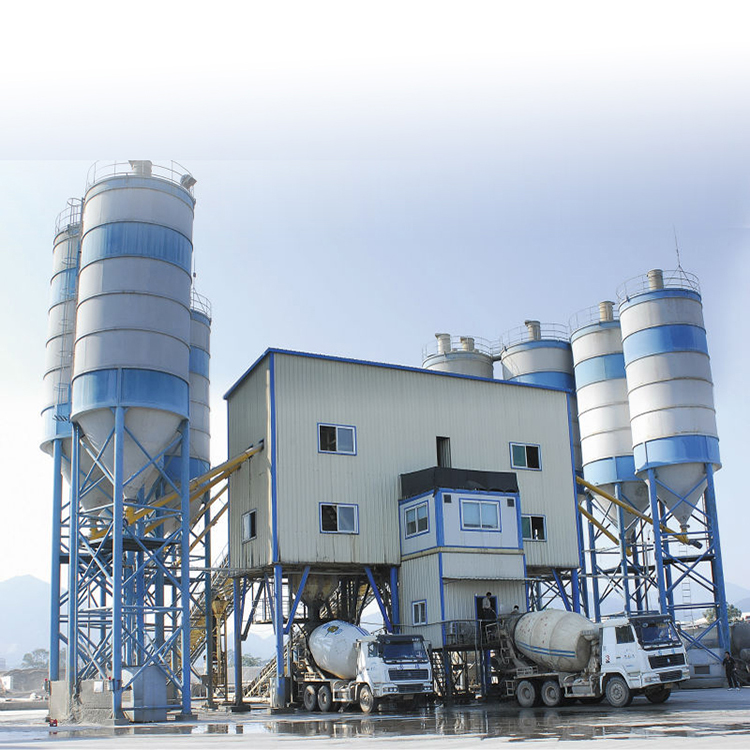

XCMG Factory HZS120K Brand New 120m3 Concrete Batching Plant Price List
Summary
- Certification: CE/ISO9001
- Power(W): 210kw
- Model Number:HZS120K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Power Type:Gasoline
Specifications
- Weight:10000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Factory HZS120K Brand New 120m3 Concrete Batching Plant.
Description
HZS series concrete mixing plant belongs to compulsory and efficiency equipment. It includes JS concrete mixer, PLD batching machine,cement silo,conveying system and control system.And also has the characteristic of mixing well, high productivity, highly automated, high flexibility, convenient operation, and good stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Features
1.Adopting horizontal twin-shaft compulsory mixer
2.The aggregate is measured accumulatively by electric scale
3.Water and additive is measured accurately under the control of the computer
4.The whole machine is controlled by computer which makes operation easy
5.The main electric components are from famous brand.
|
Items |
Unit |
HZS120/2HZS120 |
|
Theoretical productivity |
m3/h |
120/240 |
|
Dump height |
m |
4 |
|
Model of main mixing machine |
|
MAO3000/2000 |
|
Mixing power |
kW |
2X37 |
|
Nominal volume of main mixing machine |
L |
2000 |
|
Production cycle |
s |
60 |
|
Aggregate diameter |
mm |
≤80 |
|
Aggregate bin volume |
m3 |
4X25 |
|
Powder bin (optional)volume |
t |
4×200 |
|
Batching plant capacity |
L/bin |
3200 |
|
Inclined belt conveyor capacity |
t/h |
900 |
|
Concrete spiral conveyor capacity |
t/h |
90 |
|
Coal ash spiral conveyor capacity |
t/h |
60 |
|
Standard installed capacity |
kW |
210/420 |
|
Weighing range & accuracy of sand/stone |
kg |
(0~3600)±2% |
|
Weighing range & accuracy of cement |
kg |
(0~1000)±1% |
|
Weighing range & accuracy of coal ash |
kg |
(0~500)±1% |
|
Weighing range & accuracy of water |
kg |
(0~500)±1% |
|
Weighing range & accuracy of additives |
kg |
(0~50)±1% |
