Specifications
- Weight:8500.000kg
- Condition:New
- Moving Type:Crawler
- Certification:ISO9001
- Dimension(L*W*H):5900×2250×2400mm
- Power(W):113KW
- Weight:8500kg
- Model Number:XZ200
- Brand Name:XCMG
- Place of Origin:XuZhou,China
- Power Type:Diesel
- Type:Horizontal Drilling Rig
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

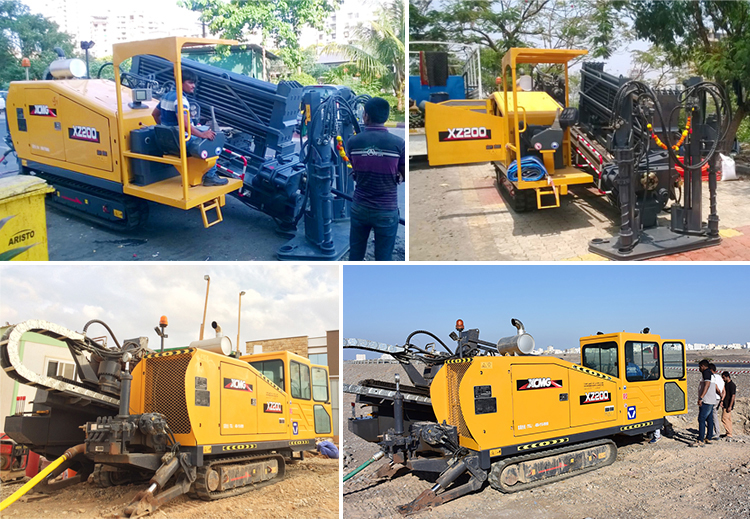

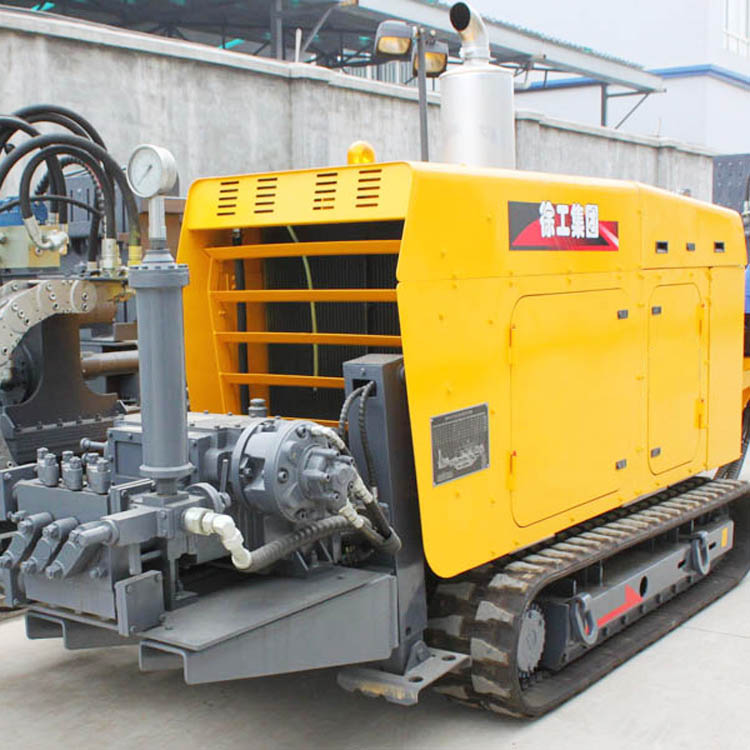

XCMG XZ200 Horizontal Directional Drilling Machine.
XCMG horizontal drilling rig XZ200 has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level.
XCMG Horizontal Drilling Rig XZ200 Technical Characteristics:
1.Strong Power
112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.
2. Two-Speed Unit Head
The unit head operates at a low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.
3. Rubber Crawler
It has a minimal impact on roads, lawns and scenic spots.
4. Floating-Type Vise
It applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.
5. Rotatable Control Desk
It widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.
6. Automatic Handling Device of Drill Rod
This can improve efficiency, and reduce the operators' labor intensity and the number of construction personnel.
7. Automatic Anchoring
Hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.
|

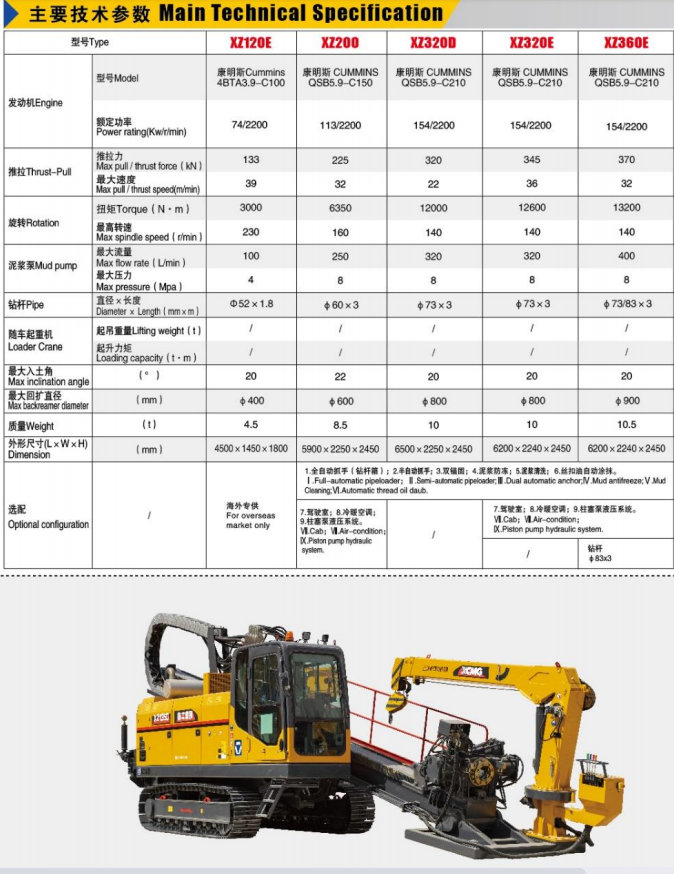

Description |
unit |
XZ200 |
|
Dimension LxWxH |
mm |
6200x2250x2400 |
|
Overall weight |
t |
8.5 |
|
Engine model |
6BTAA5.9-C150 |
|
|
Engine power |
KW |
112 |
|
Thrust-pull mode |
Rack and pinion |
|
|
Max.pullback/thrusting |
KN |
200/200 |
|
Max.spindle torque |
N.m |
6350 |
|
Spindle speed |
r/min |
0-155 |
|
Spindle traveling speed |
m/min |
0-26 |
|
Max.backreaming diameter |
mm |
600 |
|
Pipe length(single) |
m |
3 |
|
Pipe diameter |
mm |
60 |
|
Entry angle |
0 |
10-22 |
|
Max.mud flow rate |
L/min |
200/250 |
|
Max.mud pressure |
bar |
80 |
