![XCMG official 14m China electric articulated boom lift GTBZ14JD aerial work platform price for sale XCMG official 14m China electric articulated boom lift GTBZ14JD aerial work platform price for sale](http://www.machmall.com/images/store/357636/item/GTBZ14JD A (4).jpg_l.jpg)

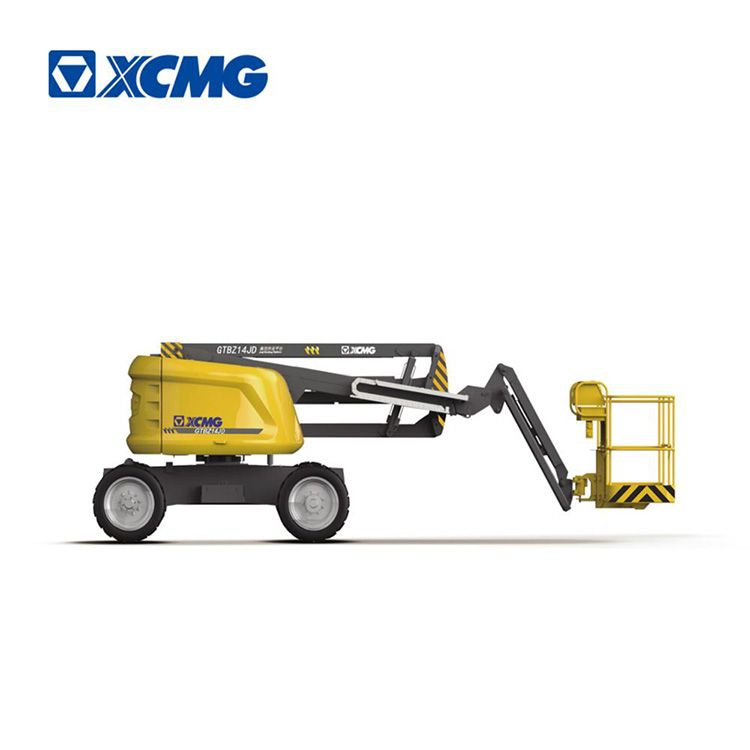

XCMG official 14m China electric articulated boom lift GTBZ14JD aerial work platform price for sale
![](/app/topc/statics/images/close.png)
![XCMG official 14m China electric articulated boom lift GTBZ14JD aerial work platform price for sale](/images/store/357636/item/GTBZ14JD A (4).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:6500kg
- Overall Dimension:6.42*1.75*2m
- Table Size:1.4*0.77*1.15m
- Max Lifting Height:14m
- Rated Loading Capacity:230kg
- Power:4kw
- Lift Drive / Actuation:Electric Motor
- Lift Mechanism:Articulated Lift
- Model Number:GTBZ14JD
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE
Specifications
- weight:6500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

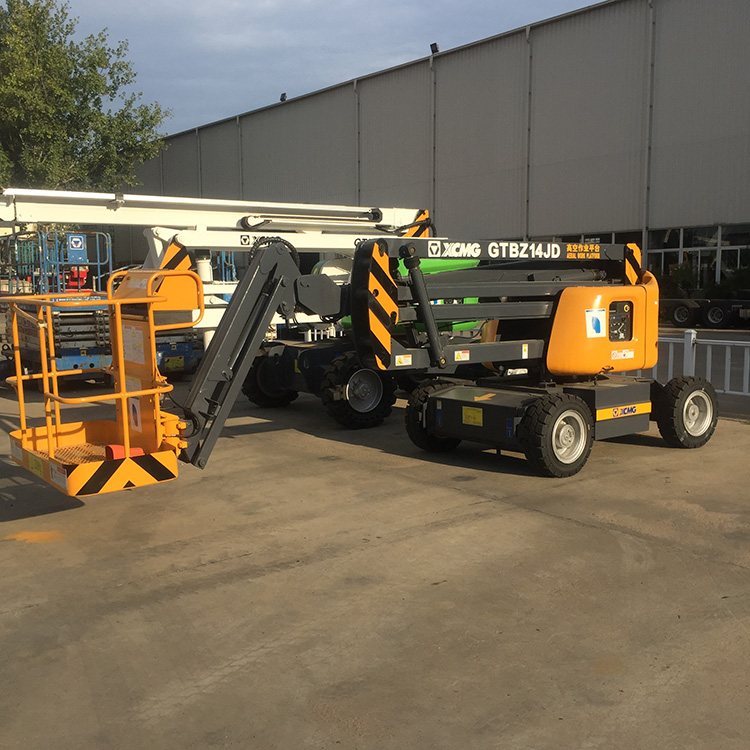

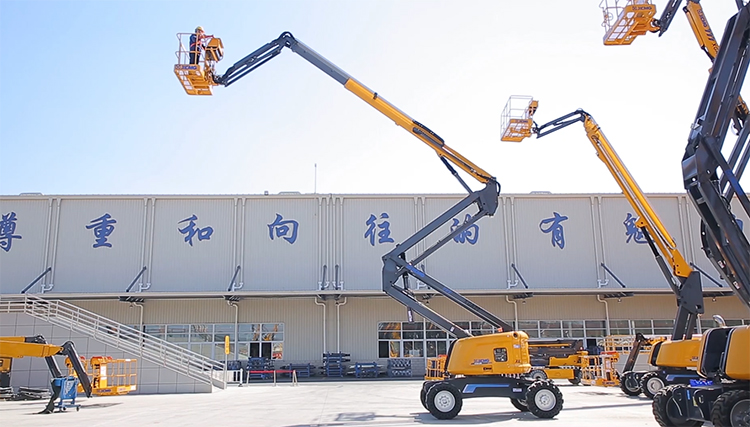

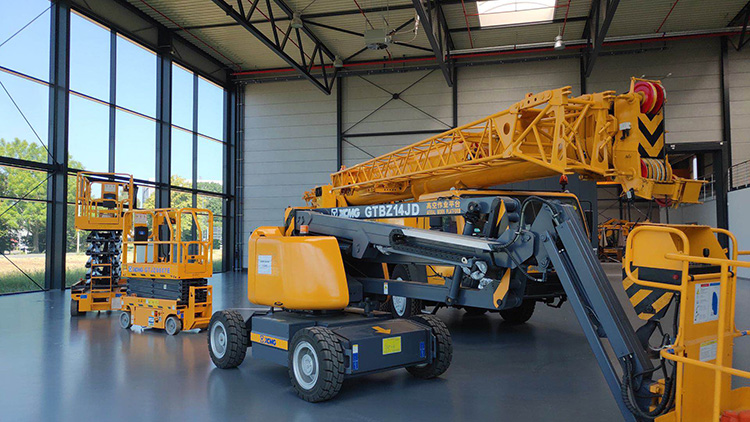

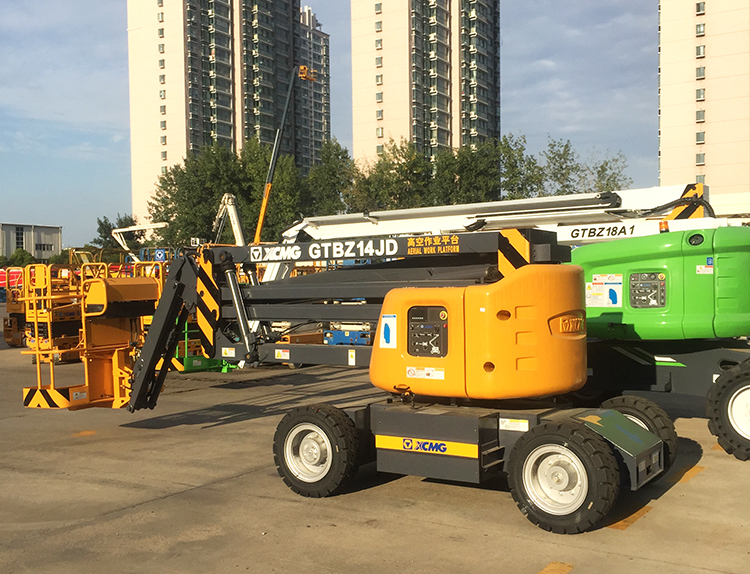

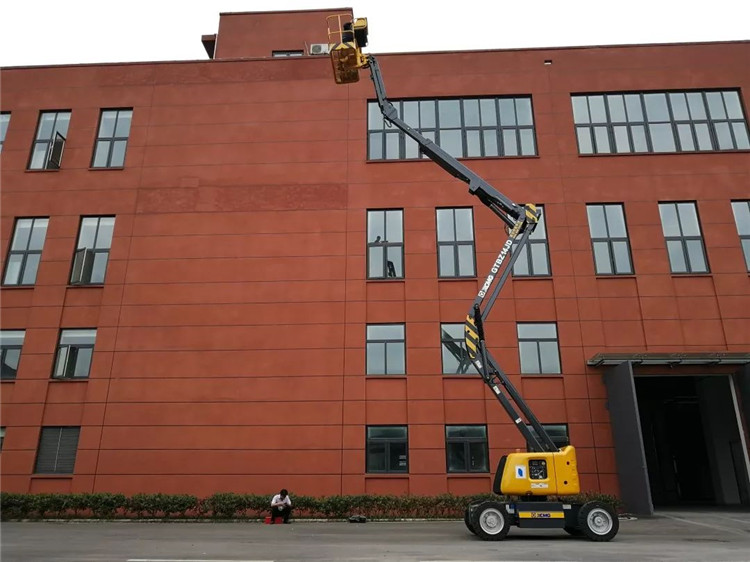

14m China electric articulated boom lift aerial work
platform GTBZ14JD.
14m-level articulated boom aerial work platform aiming at
meeting customer demand has intelligent and perfect control system, adopts
humanized layout and lubrication-free design, is easy for use and maintenance
and provides comprehensive safety protection and abundant configuration
options.
Model features:
(1) Flexibility and efficiency
"Σ-type" double link jib has characteristics of
compact structure and flexible extension, which can achieve vertical lifting
and horizontal extension and has very strong obstacle climbing ability;180°
rotatable platform provides bigger operation range; Narrow-type rotary table
with compact structure can achieve" zero tail wagging" and improve
operation efficiency.
(2) Super strong site adaptability
Cross-country type chassis, four-wheel drive system,
pouring-type cross-country wide type, full-time axle balanced system and 38kw
strong power are configured so that the equipment has excellent terrain
adaptability.
(3) Advanced performance, safety and reliability
Full-range operation,
visual and friendly control panel and easy operation; Electro-hydraulic
proportional system control is accurate and efficient. Protective measures such
as chassis incline protection, platform overload alarming, emergency landing,
safety speed limit, flexibility start-stop technology, etc. are provided.
item |
Parameter |
Overall Length(mm) |
6690 |
Overall Width(mm) |
2260 |
Overall Height(mm) |
2130 |
Wheel Base(mm) |
2100 |
Maximum Working Height(m) |
15.75 |
Maximum Platform Height(m) |
14.05 |
Maximum Working Range(m) |
8.22 |
Maximum Load Capacity(kg) |
230 |
1st Boom luffing Range(°) |
0~+60 |
2nd Boom luffing Range(°) |
-8~+75 |
Crank Arm Luffing Range(°) |
-60~+80 |
Rotation Angle of Rotating Platform(°) |
355 |
Maximum Tail Wagging(mm) |
0 |
Platform Size(mm) |
1830*760*1150 |
Platform turning angle(°) |
180 |
Total Weight(kg) |
6900 |
Maximum Travel Speed(km/h) |
6.1 |
Minimum Turning Radius(m) |
4.5 |
Minimum Ground Clearance(mm) |
250 |
Maximum Grade Ability(%) |
45 |
Tire Specification |
315/55D20 |
Engine Model |
Perkins404D-22 |
Rated Power of Engine(kW/(r/min)) |
38/(3000) |
