![XCMG official small motor graders GR3005 china new motor grader road construction equipment price XCMG official small motor graders GR3005 china new motor grader road construction equipment price](http://www.machmall.com/images/store/357636/item/GR3005 (6).jpg_l.jpg)
XCMG official small motor graders GR3005 china new motor grader road construction equipment price
![](/app/topc/statics/images/close.png)
![XCMG official small motor graders GR3005 china new motor grader road construction equipment price](http://www.machmall.com/images/store/357636/item/GR3005 (6).jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:16500.000kg
- Condition:New
- Moving Type:Other
- Dimension(L*W*H):10615*3280*3960mm
- Ground Clearance: 450mm
- Maximum Gradeability:30%
- Rated Power/Speed:242kw/2100rpm
- Certification:CE/ISO9001
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

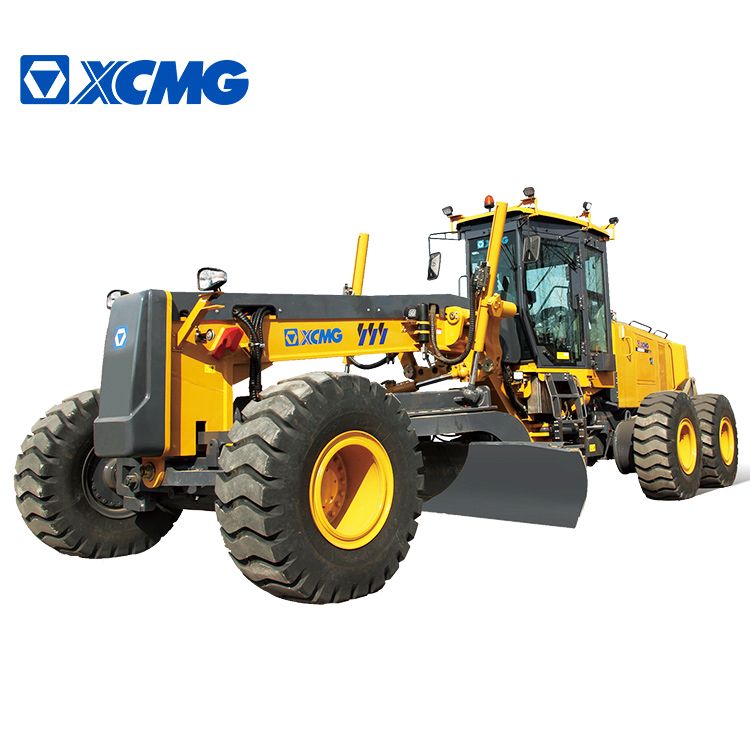

XCMG official small motor graders GR3005
china new motor grader road construction equipment.

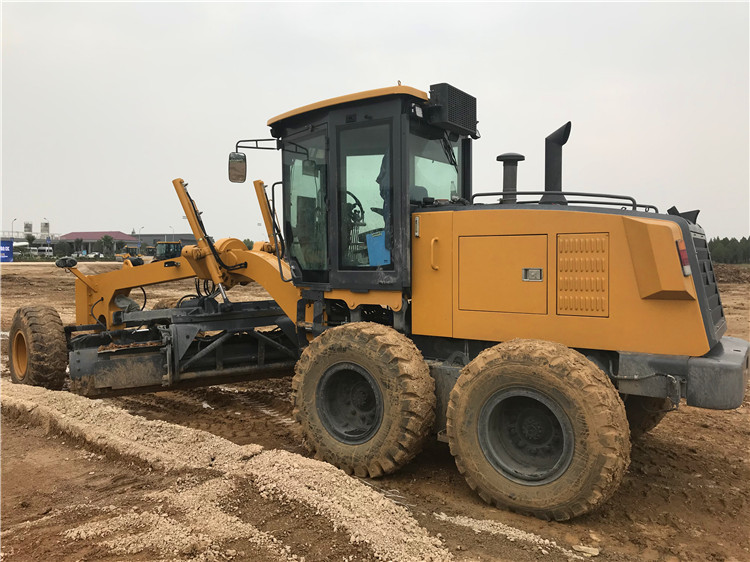

The motor grader is mainly used for ground
leveling, ditching, slope scraping, bulldozing, scarification, snow removal for
large areas such as highway, airports, farmlands etc. It is the necessary
construction machinery for national defense construction, mine construction,
urban and rural road construction and water conservancy construction, farmland
improvement and so on.
1. The friction-disc worm gearbox with overload protection is developed for the
mining heavy load condition, which can slip automatically and protect the safety
of the machine and personal.
2. Load sensing hydraulic system is equipped
with variable piston pump and load sensing multi-way valve, in order to improve
operation comfort, the pilot independent electrical proportional valve, the
main directional valve and relief valve are proportional valves.
3. The service brake is a double-loop
hydraulic braking system.
4. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with
air conditioning, adjustable suspension seat, equipped with wipers and
defrosting vents to improve the comfort of operation.

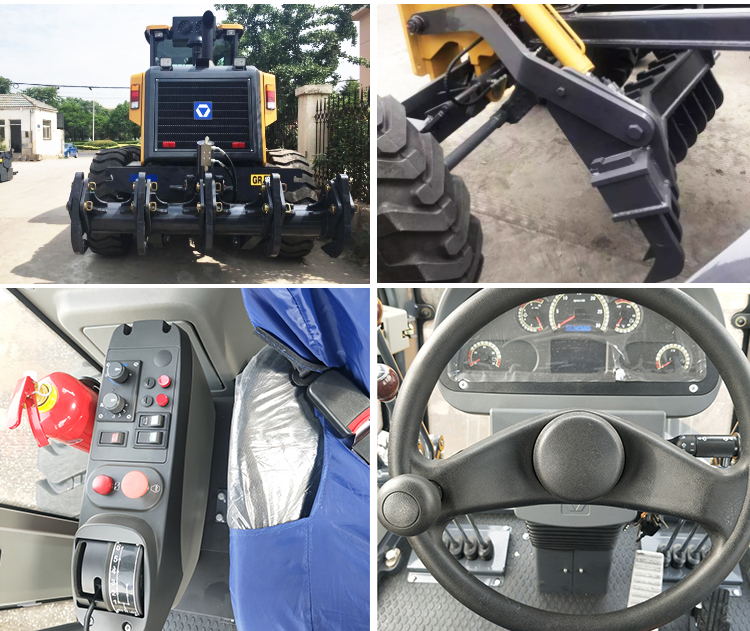

5. Spacious cabin
design, three-dimensional air duct, good driving experience. Double handle
operation can be selected on the handle operation, reducing the labor intensity
by about 80%.
Basic parameters |
Engine model |
QSL8.9-C325-30 |
Rated power/speed |
242kW/2100rpm |
|
Overall dimension (standard) |
10615x3280x3960 |
|
Total weight (standard) |
28000kg |
|
Tire specification |
20.5-25 |
|
Ground clearance (front axle) |
450mm |
|
Space of front and rear axles |
7617mm |
|
Space of middle and rear wheels |
1960mm |
|
Performance |
Forward velocity |
5,8,11,19,23,40km/h |
Reverse speed |
5,11,23km/h |
|
Tractive effort f=0.75 |
140kN |
|
Maximum gradeability |
30% |
|
Tire inflation pressure |
330kPa |
|
Working system pressure |
22MPa |
|
Transmission pressure |
/ |
|
Working parameters |
Maximum steering angle of front wheel |
±45° |
Maximum slant angle of front wheel |
±17° |
|
Maximum oscillating angle of front axle |
±15° |
|
Maximum oscillating angle of equilibrium box |
forwards15°, Reverse15° |
|
Maximum steering angle of frame |
±23° |
|
Minimum turning radius |
9m |
|
Oil filling amount |
Coolant |
50L |
Fuel tank |
480L |
|
Engine |
24L |
|
Transmission |
38L |
|
Equilibrium box |
186L |
|
Drive alex |
106L |
|
Hydraulic oil |
210L |
