FOB Price: $60000.00-$70000.00
View All >
Model: GR1605
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Motor Grader 160 HP Construction Machine GR1605 With Hydraulic Pump Price

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GR1605
Specs & Compare
Details
VR

Specifications

  • Weight:12500.000kg
  • Condition:New
  • Moving Type:Other
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

XCMG Motor Grader 160 HP Construction Machine GR1605 With Hydraulic Pump Price

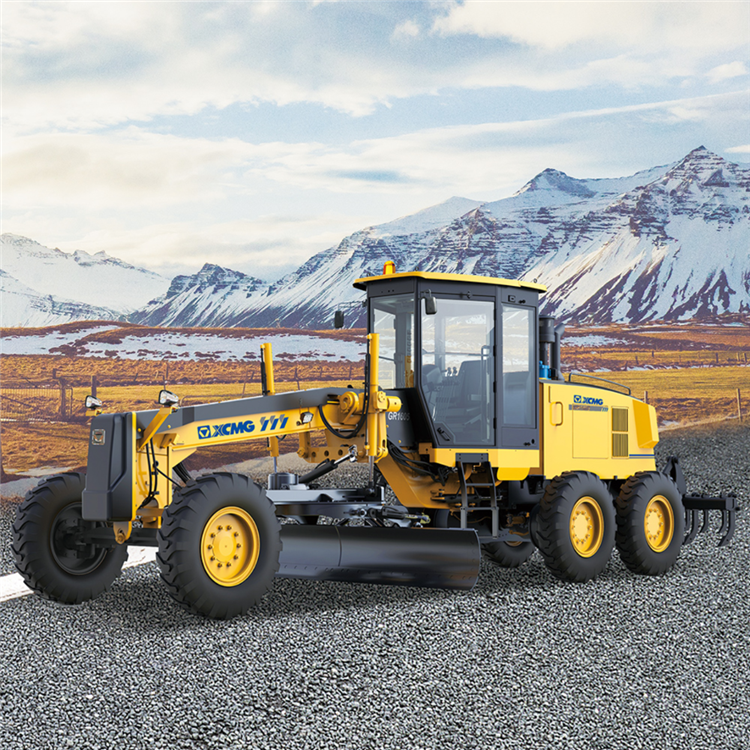

XCMG Motor Grader 160 HP Construction Machine GR1605 With Hydraulic Pump Price.

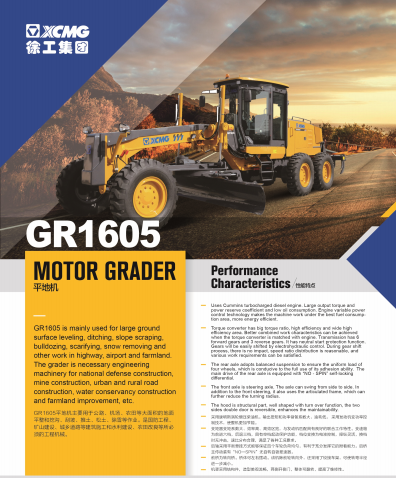

GR1605 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.



Performance Characteristics:



* Uses Cummins turbocharged diesel engine. Large output torque and power reserve coefficient and low oil consumption. Engine variable power control technology makes the machine work under the best fuel consumption area, more energy efficient.



* Torque converter has big torque ratio, high efficiency and wide high efficiency area. Better combined work characteristics can be achieved when the torque converter is matched with engine. Transmission has 6 forward gears and 3 reverse gears. It has neutral start protection function.



* Gears will be easily shifted by electrohydraulic control. During gear shift process, there is no impact, speed ratio distribution is reasonable, and various work requirements can be satisfied.



* The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with“NO - SPIN" self-locking differential.

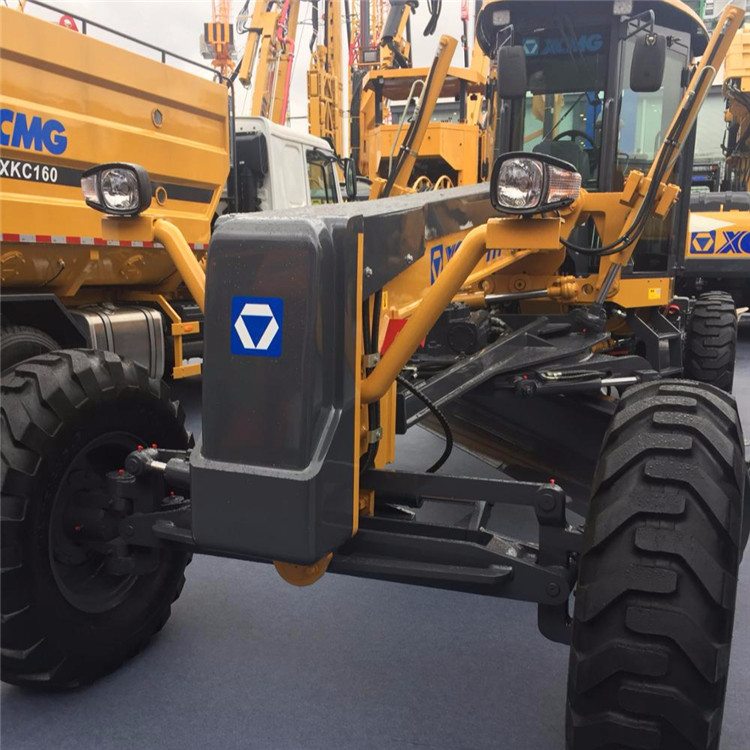

* The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.



* The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.

XCMG Motor Grader 160 HP Construction Machine GR1605 With Hydraulic Pump Price

Item

Unit

GR1605

Basic parameters

Engine model

QSB5.9

Rated power/speed

kW/rpm

125/2200

Overall dimension(standard)

mm

8711 x 2483 x 3385

Total weight(standard)

kg

13500

Tire specification

14.00-24

Ground clearance

mm

586

Tread

mm

2113

Space of front and rear axles

mm

6279

Space of middle and rear wheels

mm

1568

Performance parameters

Forward velocity

km/h

5813183047

Reverse speed

km/h

51330

Tractive effort f=0.75

kN

≥70

Maximum gradeadbility

%

≥25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

22

Transmission pressure

MPa

2

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±18

Maximum swing angle of front axle

°

±16

Maximum swing angle of balance box

°

±15

Maximum steering angle of frame

°

±20

Maximum turning radius

m

7.2

Blade

Maximum lifting height

mm

410

Maximum shoveling depth

mm

715

Maximum lateral inclination angle

°

90

Cutting angle

°

front 40, rear 5

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3660 x 610

Coolant

L

50

Fuel tank

L

380

Engine

L

24

Transmission

L

38

Balance box

L

60

Drive axle

L

36

Hydraulic oil

L

170
