XCMG truck crane 100 ton XCT100 price, MACHMALL

Engineering & Construction Machinery > Engineering & Construction Crane > Truck Crane

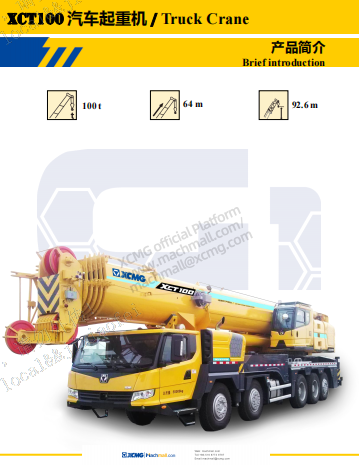

Brochure

XCMG truck crane 100 ton XCT100 price

FOB Price: $340000.00-$390000.00

View All >

Model： XCT100

Engine： WEICHAI

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG truck crane 100 ton XCT100 price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT100

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT100

XCMG

Xuzhou,Jiangsu,China

7.9m

96.1m

100 Ton

4707kN.m

100 Ton

Construction

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT100
Brand Name:XCMG
Place of Origin:Xuzhou,Jiangsu,China
Span:7.9m
Max. Lifting Height:96.1m
Max. Lifting Load:100 Ton
Rated Lifting Moment:4707kN.m
Rated Loading Capacity:100 Ton
Application:Construction
Certification:CE/ISO9001

Specifications

Weight:55000.000kg
Condition:New
Moving Type:Wheel
Max. travel speed:90km/h
Max. output torque/rpm:1000/1200-1600N.m/(r/min)
Min. ground clearance:326mm
Min. turning diameter:24m

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG truck crane 100 ton XCT100 price

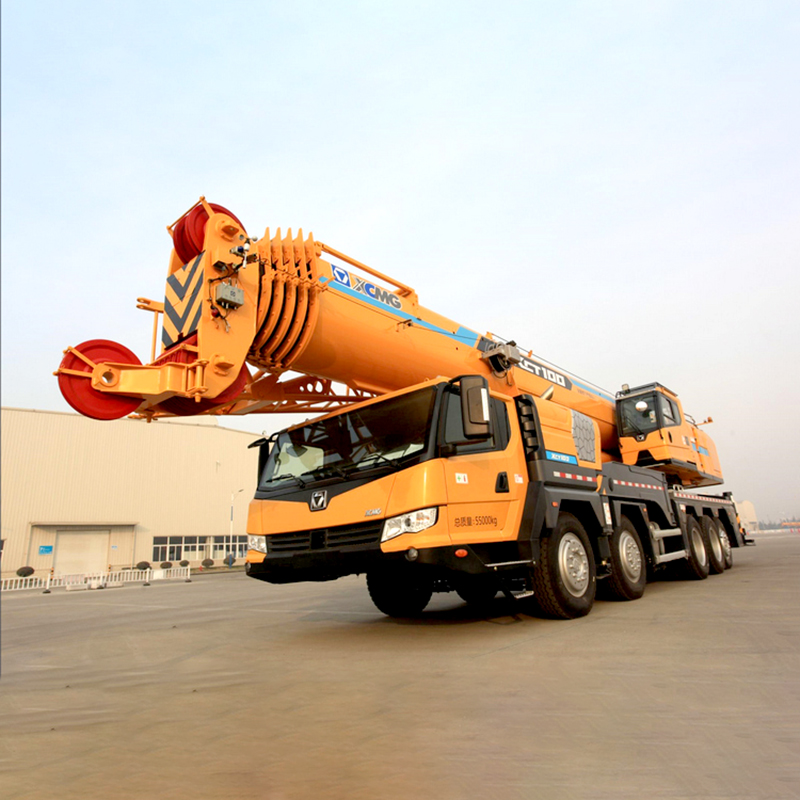

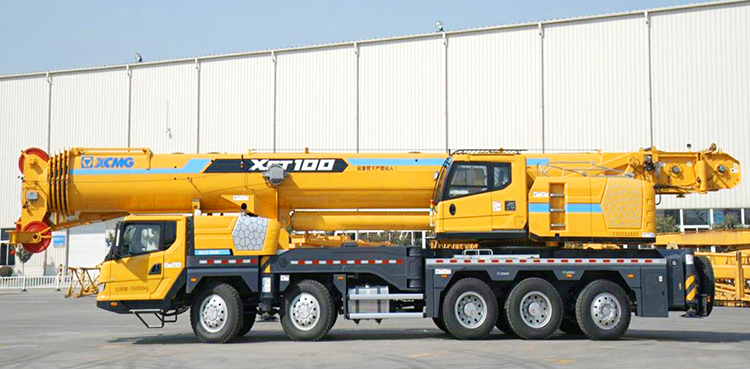

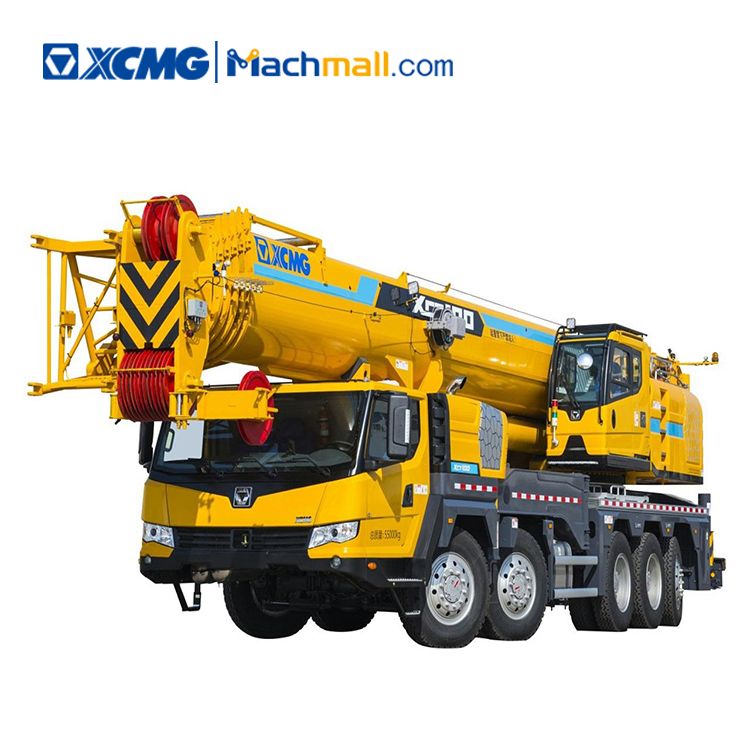

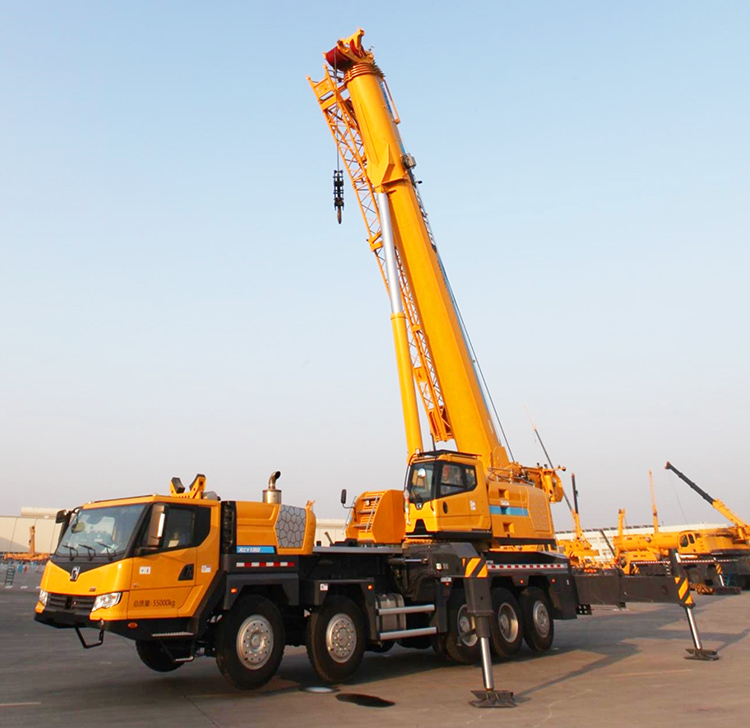

XCMG truck crane 100 ton XCT100.

XCMG truck crane 100 ton XCT100 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:

1. XCMG crane 100 ton XCT100 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively.

2. 100 ton truck crane XCT100 to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.

3. XCMG truck crane 100 ton XCT100 is also the first four-wheel driven truck crane domestically, which can meet the need under various road conditions.

4. Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.

XCMG truck crane 100 ton XCT100 price

Description		Unit	Parameter value
Overall length		mm	15600
Overall width		mm	3000
Overall Height		mm	3870
Wheel Base		mm	1920+3500+1420+1505
Track(front/rear)		mm	2449/2315
Front/Rear overhang		mm	2650/2765
Front/Rear extension		mm	1840/0
Total vehicle mass in travel configuration		kg	55000
Axle load	1st and 2nd Axle	kg	10000
	3rd and 4th Axle		13000
	5th Axle		9000
Engine Model			WP6G240E330	M906LA.E3A/2	WP12.430N
Engine rated power		kw/(r/min)	176/2300	190/2200	316/1900
Engine rated torque		N.m/(r/min)	860/1200-1700	1000/1200-1600	2060/1000-1400
Max. travel speed		km/h	90
Min. turning diameter		m	23
Min. ground clearance		mm	326
Max. grade ability		%	45
Approach angle		°	18
Departure angle		°	13
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	70
Noise level at seated position		dB(A)	≤90
Exterior noise level		dB(A)	≤88
