Specifications
- Weight:71200.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

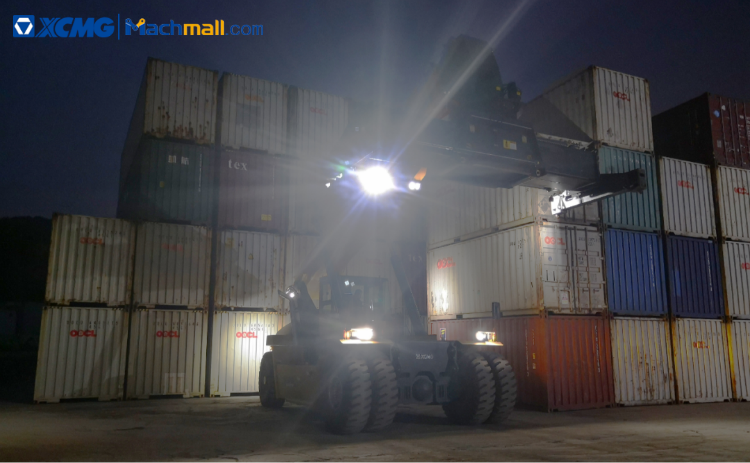

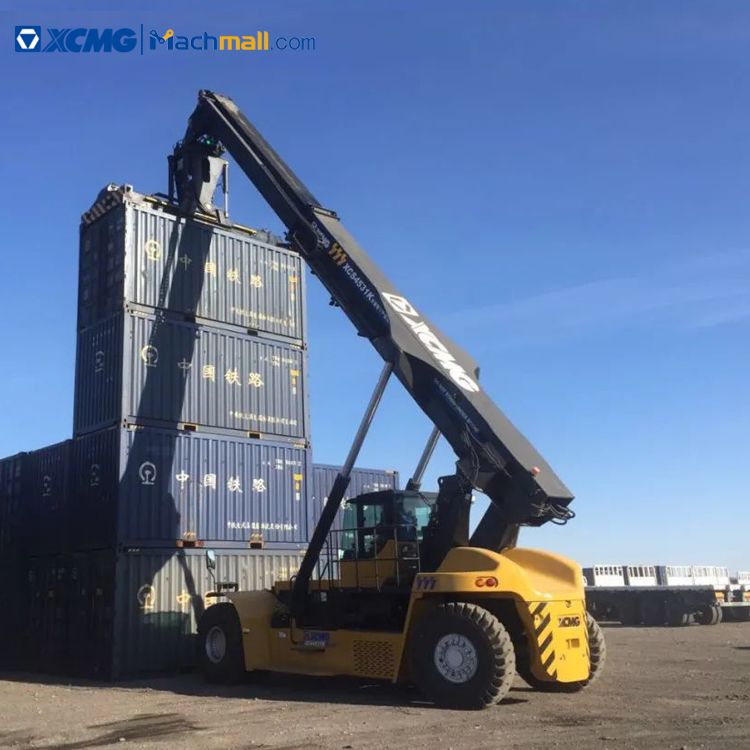

XCMG 45 ton container crane loader XCS4531K2 Machine.
XCMG reach stacker container XCS4531K with best working efficiency and complete safety measures. Unique low speed large torque optimal transmission chain, innovative oil cylinder differential control technology and vertically lifting spreader technology contribute to highest working efficiency in the industry.
XCS4531K reach stacker container the technologies specialized for container reach stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading and driving safety active protection, lead to better active safety.
Three energy-saving measures, such as flow self-adaptive load sensitive hydraulic system, efficient power transmission system and transmission ECO control, lead to more fuel-efficient.
|
Parameter |
Unit |
XCS4531K2 |
|
|
Boom |
Max.lifting height |
mm |
15100 |
|
Inclination angle |
。 |
0-60 |
|
|
Max lifting speed（Unloaded/loaded） |
mm/s |
420/250 |
|
|
Max lowering speed（Unloaded/loaded） |
mm/s |
360/360 |
|
|
Max travelling speed（Unloaded/loaded） |
km/h |
25/21 |
|
|
Gradeability（Unloaded/loaded） |
% |
39/32 |
|
|
Overall weight |
t |
71.2 |
|
|
Rated capacity |
t |
45 |
|
|
No. of stack |
- |
5（9’6”/8’6”） |
|
|
Overall length |
mm |
11340 |
|
|
Wheel base |
mm |
6000 |
|
|
Overall height |
mm |
4670 |
|
|
Min ground clearance |
mm |
350 |
|
|
Overall width |
mm |
6052-12185 |
|
|
Front track |
mm |
3033 |
|
|
Rear track |
mm |
2790 |
|
|
Min Turing radius |
mm |
8000 |
|
|
20’ container aile width |
mm |
11300 |
|
|
40’ container aile width |
mm |
13600 |
|
