Summary
- Model Number:QY30K5-I
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Max. Lifting Height:48m
- Max. Lifting Load:30ton
- Rated Lifting Moment:1025kN.m
- Rated Loading Capacity:30 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:32400.000kg
- Condition:New
- Moving Type:Wheel
- Overall dimension:12570*2500*3390mm
- Engine rated power:206/2200kW/(r/min)
- Engine rated torque:1112/1400N.m/(r/min)
- Max. travel speed:80km/h
- Min. turning diameter:22m
- Min. ground clearance:291mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

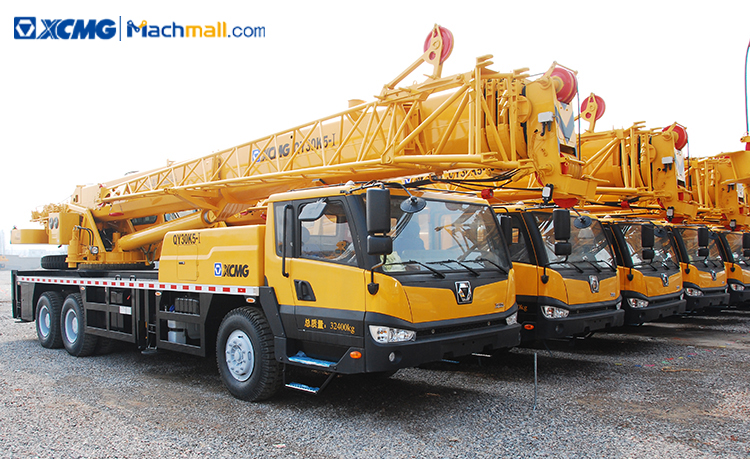

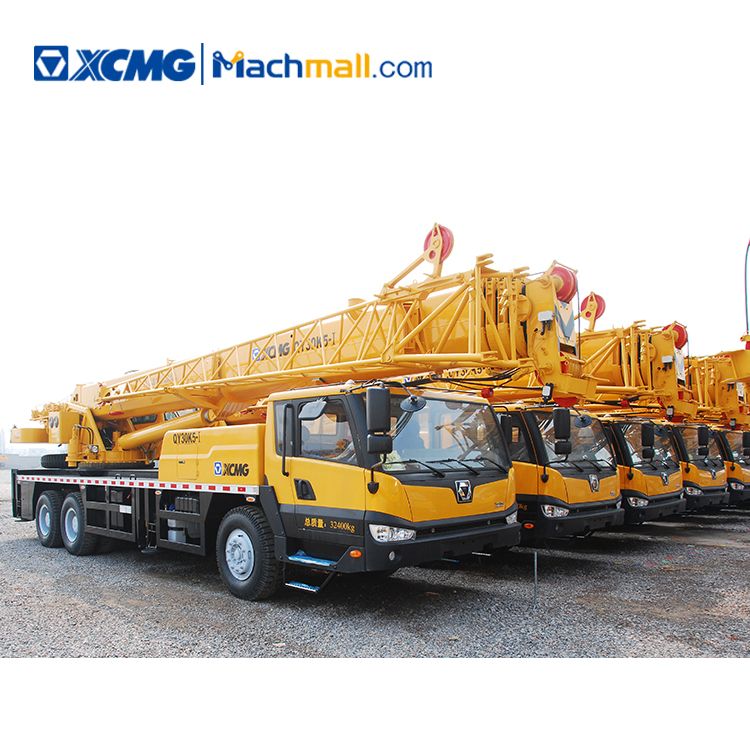

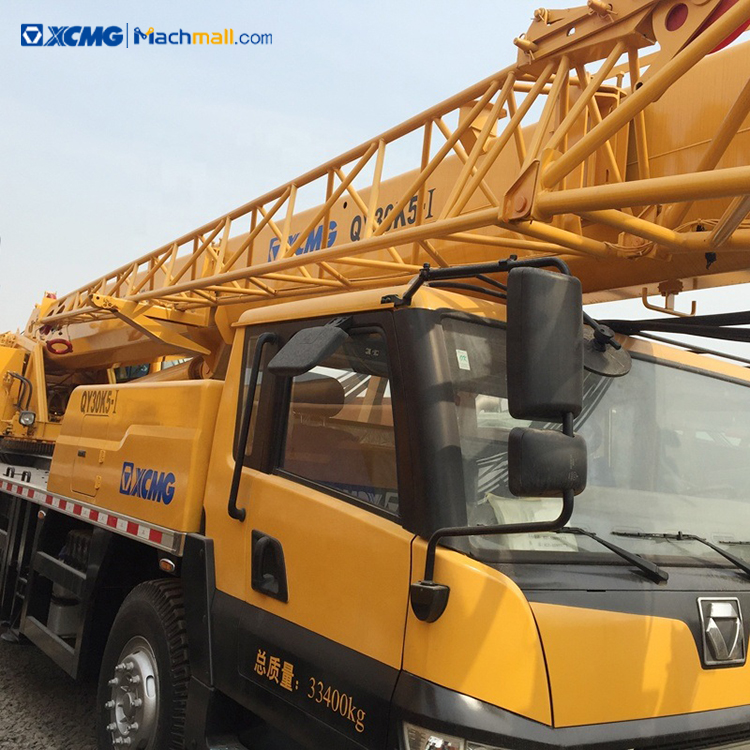

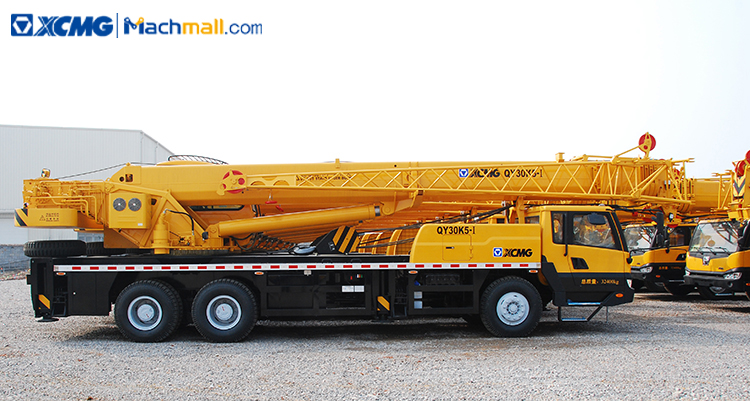

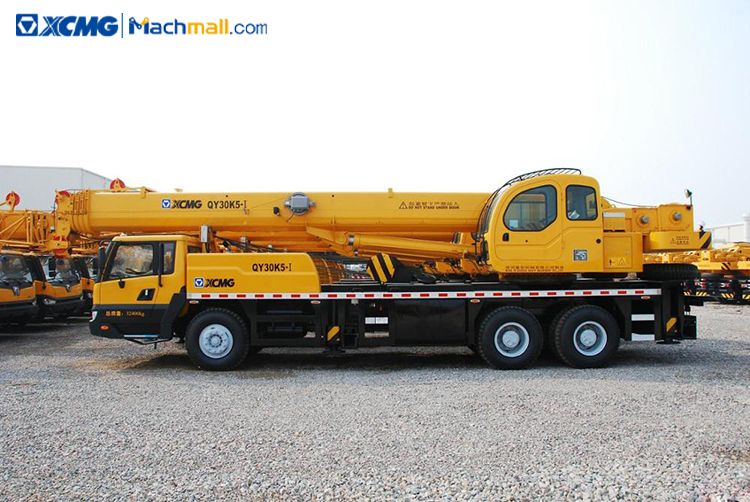

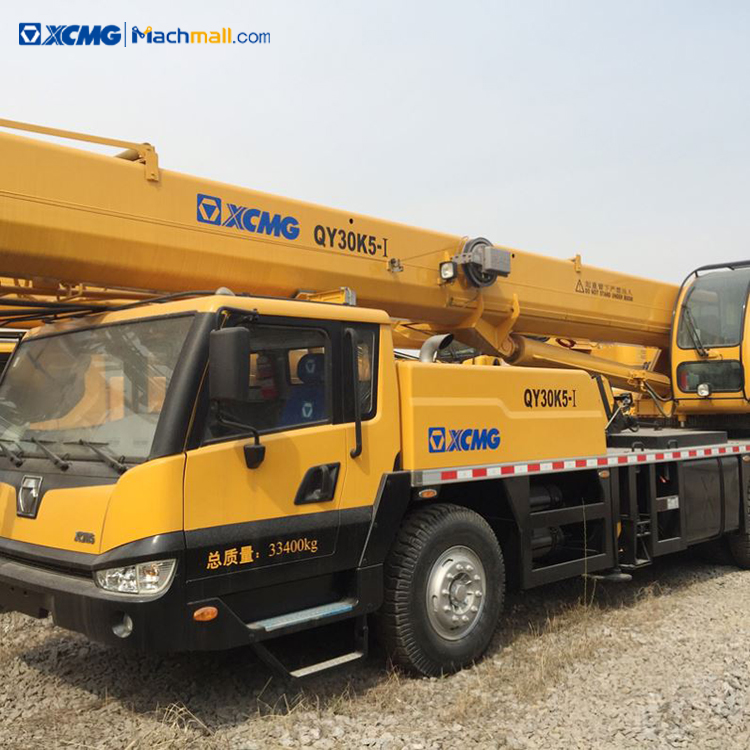

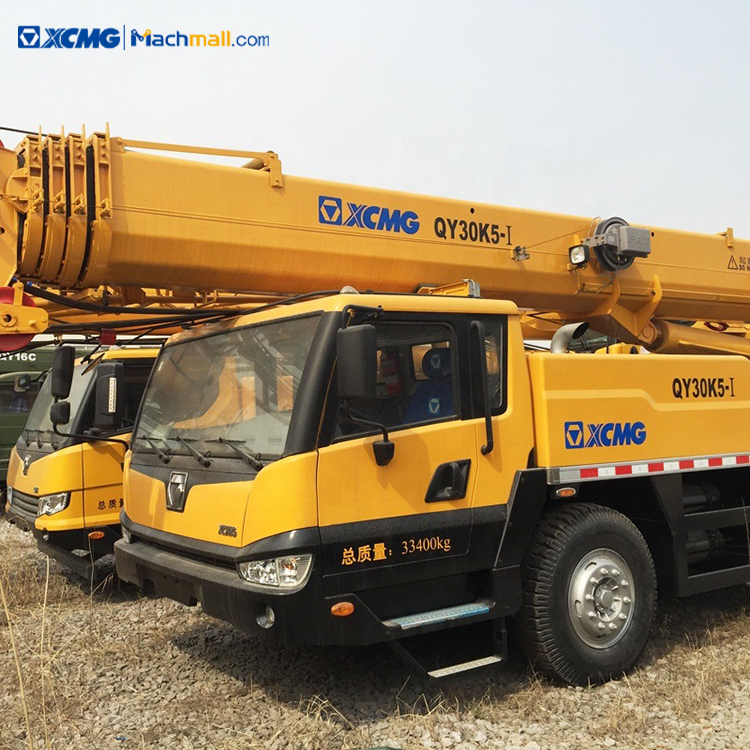

XCMG 30 ton QY30K5-I construction equipment crane.
Construction equipment crane QY30K5-I designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure and optimal load-bearing structure design, made of imported high strength steel.
Performance Characteristics:
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. QY30K5-I advanced built-in boom head contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
|

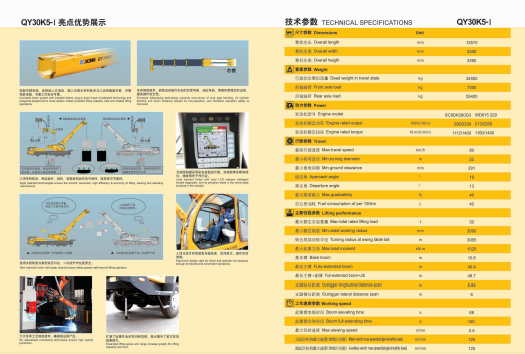

Category |
Item |
Unit |
Parameter |
|
|
Outline Dimensions |
Overall length |
mm |
12570 |
|
|
Overall width |
mm |
2500 |
||
|
Overall height |
mm |
3390 |
||
|
Wheel base |
mm |
5025+1350 |
||
|
Track |
mm |
2074/1834/1834 |
||
|
Weight |
Total vehicle mass in travel configuration |
kg |
32400 |
|
|
Axle load |
1st axle |
kg |
7600 |
|
|
2nd and 3rd axle |
kg |
24800 |
||
|
Power |
Model |
|
SC8DK280Q3 |
|
|
Engine rated power |
kw/(r/min) |
206/2200 |
||
|
Engine rated torque |
N.m/(r/min) |
1112/1400 |
||
|
Travel Performance |
Max. travel speed |
km/h |
80 |
|
|
Min. turning diameter |
m |
22 |
||
|
Min. ground clearance |
mm |
291 |
||
|
Max. grade ability |
% |
40 |
||
|
Approach angle |
° |
19 |
||
|
Departure angle |
° |
13 |
||
|
Braking distance (at 30 km/h, full load ) |
m |
≤10 |
||
|
Oil consumption per 100km |
L |
40 |
||
|
Noise |
Exterior noise level during acceleration traveling |
dB (A) |
88 |
|
|
Noise level at seated position |
dB (A) |
90 |
||
