XCMG 100 ton QY100K construction crane for sale
Summary
- Model Number:QY100K
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:7.6m
- Max. Lifting Height:72.1m
- Max. Lifting Load:100 Ton
- Rated Lifting Moment:3450kN.M
- Rated Loading Capacity:100 Ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:54900.000kg
- Condition:New
- Moving Type:Wheel
- Overall dimension:15600*3000*3850mm
- Min. turning diameter:24m
- Min. ground clearance:300mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

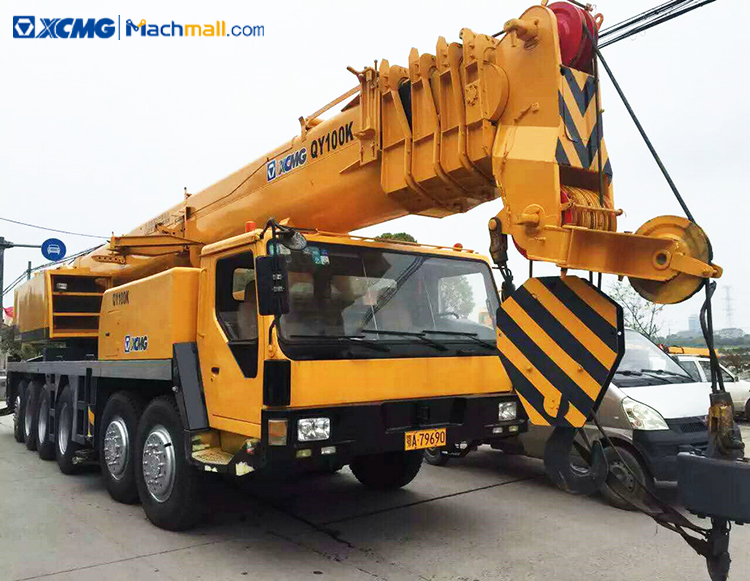

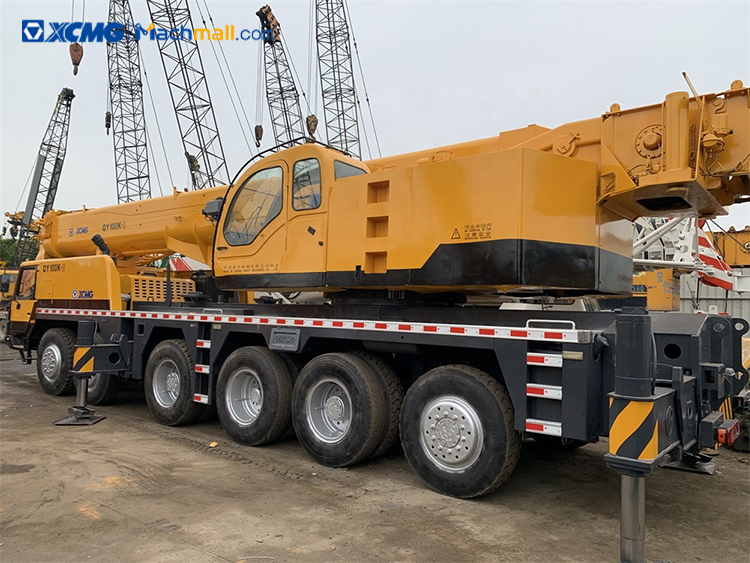

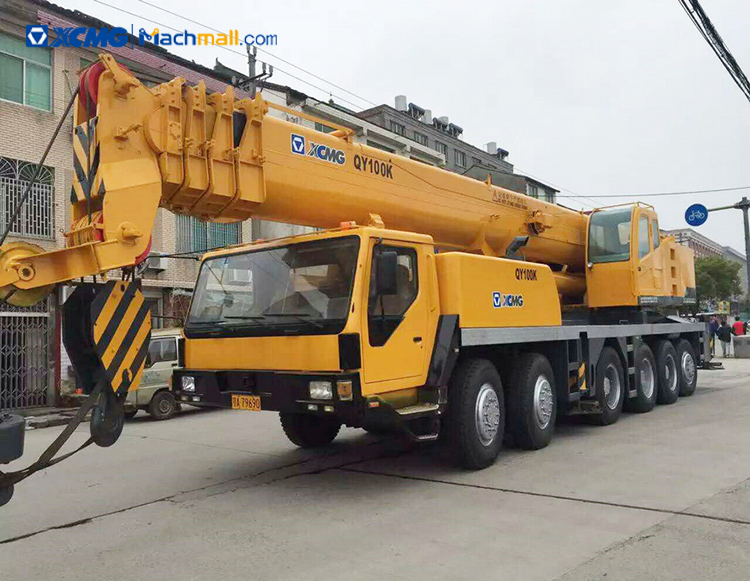

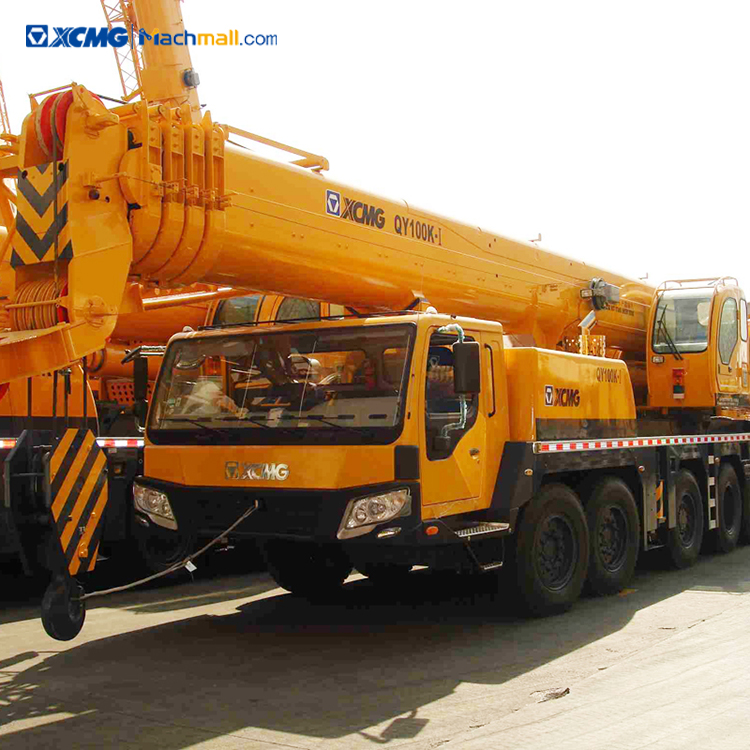

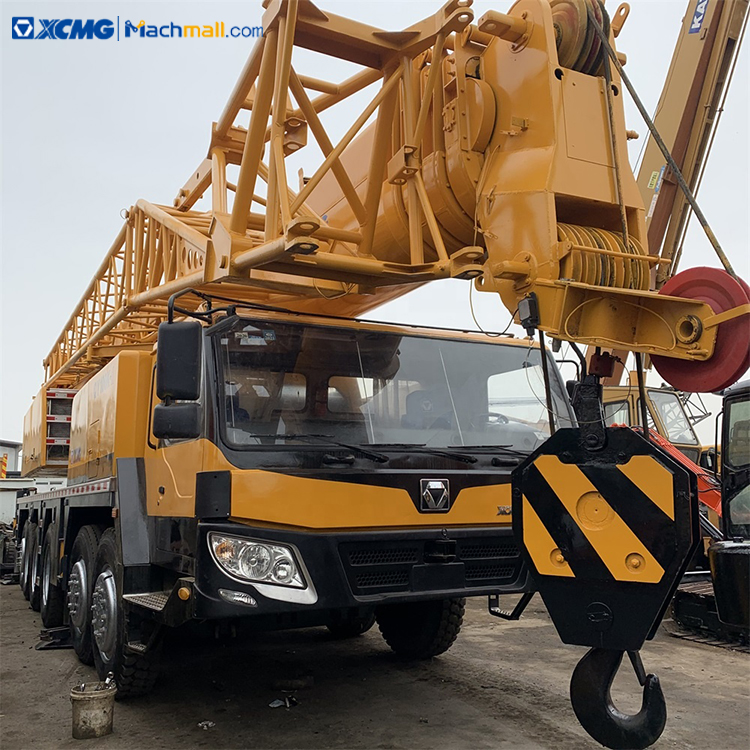

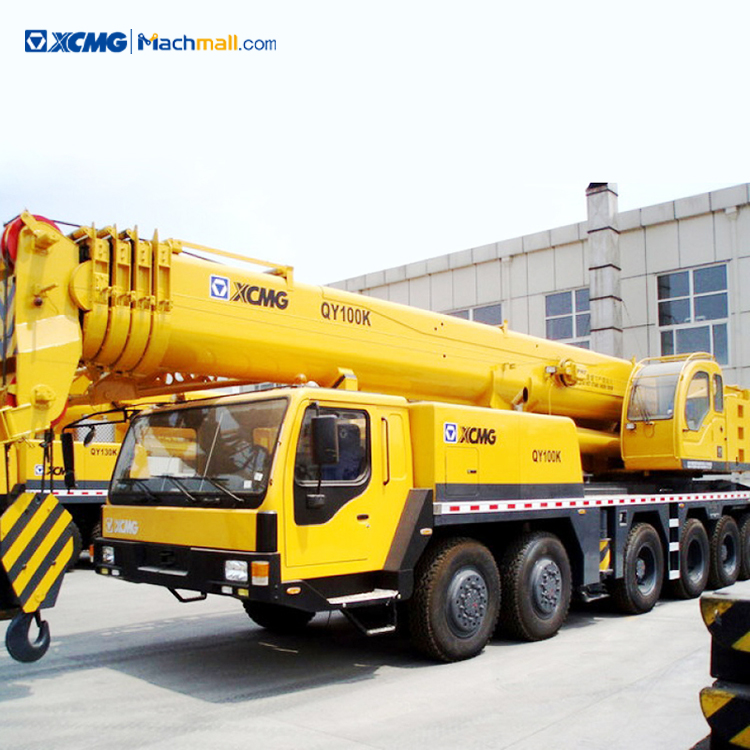

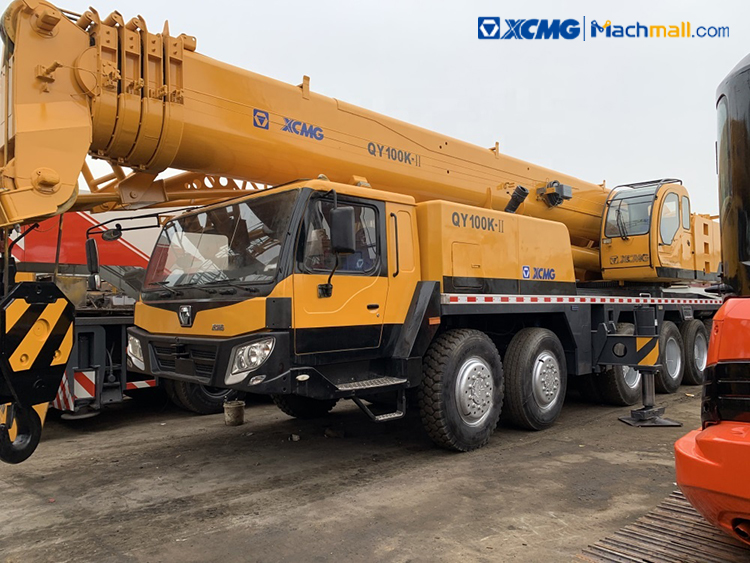

XCMG 100 ton QY100K construction crane.
XCMG construction crane QY100K is a new type of large-tonnage truck crane developed by XCMG.
Performance Characteristics:
1. XCMG construction crane QY100K has a six-axle chassis with strong power and strong off-road capability, three-axle drive and three-axle steering;
2. The boom has an optimized elliptical cross-section with excellent lifting capacity;
3. The control system adopts programmable integrated controller, which is precise and reliable in operation;
4. The application of new technologies has greatly improved the overall performance of the product and the comfort and convenience of use.
|
Item |
QY100K |
Unit |
|
|
Dimensions |
Overall length |
15600*3000*3850 |
mm |
|
Weighet |
Operation mass in travel state |
1420+2420+1800+1420+1505 |
mm |
|
Axle load |
54900 |
kg |
|
|
1st axle |
8000 |
kg |
|
|
2nd axle |
8000 |
kg |
|
|
3rd axle |
7900 |
kg |
|
|
4th axle |
12000 |
kg |
|
|
5th axle |
12000 |
kg |
|
|
6th axle |
7000 |
kg |
|
|
Travel |
Approach angle |
20 |
° |
|
Departure angle |
14 |
° |
|
|
Braking distance(at 30km/h) |
≤10 |
m |
|
|
Max.grade ability |
40 |
% |
|
|
Min.turning diameter |
24 |
m |
|
|
Min.ground clearance |
300 |
mm |
|
|
Fuel consumption per 100km |
70 |
L |
|
|
Lifting Performance |
Max.total rated lifting capactiy |
100 |
t |
|
Min.rated working radius |
3 |
m |
|
|
At counterweight |
4200 |
mm |
|
|
At auxilary winch |
4590 |
mm |
|
|
Base boom |
3450(4m×88t) |
kn.m |
|
|
Full-extended boom+Jib |
708(25.8×2.8t) |
kn.m |
|
|
Longitudinal distance |
7.56 |
m |
|
|
Full-extended boom |
50.9 |
m |
|
|
Full-extended boom |
51 |
m |
|
|
Full-extended boom+Jib |
51+18.1+4 |
m |
|
