Summary
- Dimension(L*W*H):14530×2530×4000MM
- Weight:44000kg
- Power(W):294000W
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Power Type: Diesel
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Reach height:57.5M
- Reach depth:40.5M
- Slewing angle:±270°
- Transfer tuble:Rock valve/S valve
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

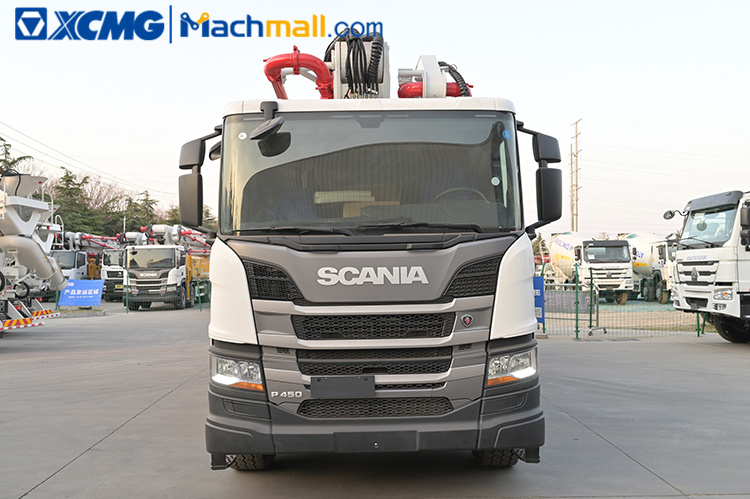

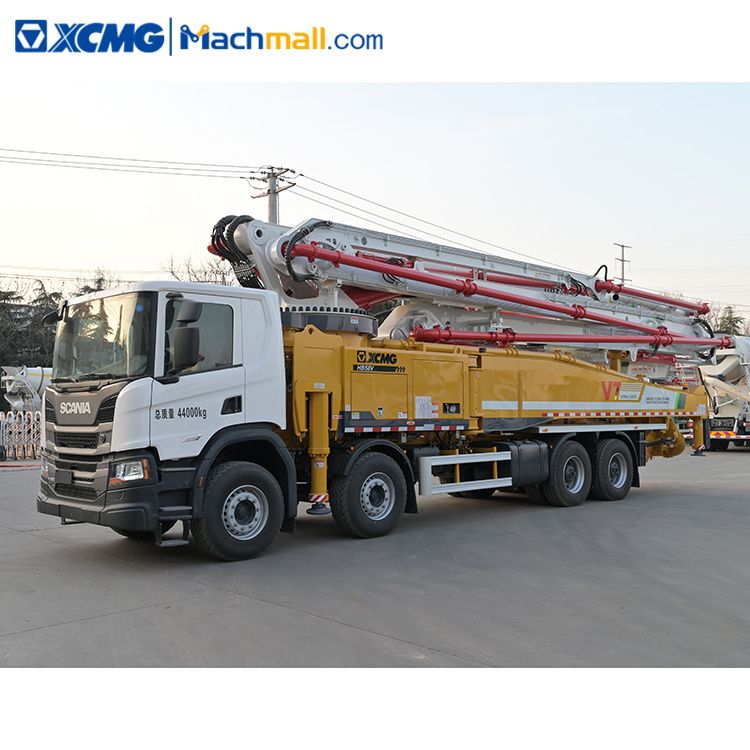

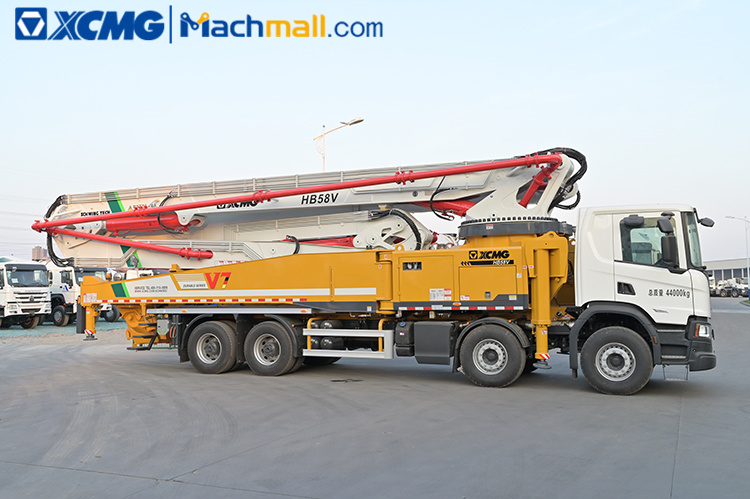

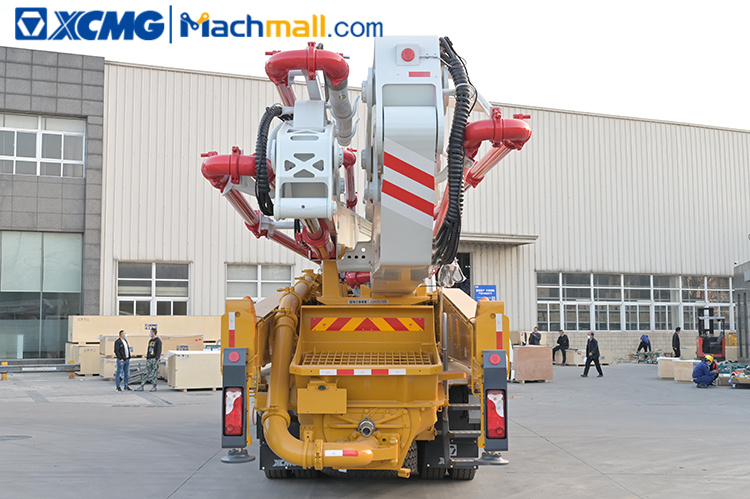

XCMG concrete pump truck with Scania chassis HB58V price in Sri Lanka.
XCMG concrete pump truck with Scania chassis HB58V is a new concrete pump truck with Schwing series independently developed by XCMG,equipped with Scania chassis.The engine is relatively mature. It can let XCMG concrete pump truck with Scania chassis HB58V accelerate to a fast speed in a very short.
In the design, the Scania chassis is adopted, following the principle of "high starting point, high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.
Advantages:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB58V |
|
Overall |
Outline dimension |
mm |
14530×2530×4000 |
|
|
Overall weight |
kg |
44000 |
|
|
Brand |
/ |
Scania |
|
Chassis |
model |
/ |
AROCS4143 |
|
|
Wheelbase |
mm |
2050+4300+1350 |
|
|
Max.power |
kW |
300 |
|
Engine |
Emission |
/ |
China V |
|
|
Theoretical |
m³/h |
180 |
|
Pumping system |
Concrete pumping pressure |
Mpa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22~24 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2200 |
|
Placing boom |
Reach height |
m |
57.5 |
|
|
Reach depth |
m |
40.5 |
|
|
Slewing radius |
m |
52.5 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
