Summary
- Dimension(L*W*H):14600×2530×4000mm
- Weight:44000kg
- Power(W):300000W
- Model Number:HB62V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:diesel
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Concrete pumping pressure:8.4Mpa
- Theoretical pumping times:22~24times/min
- Reach height:61.1m
- Slewing radiusv:55.9m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

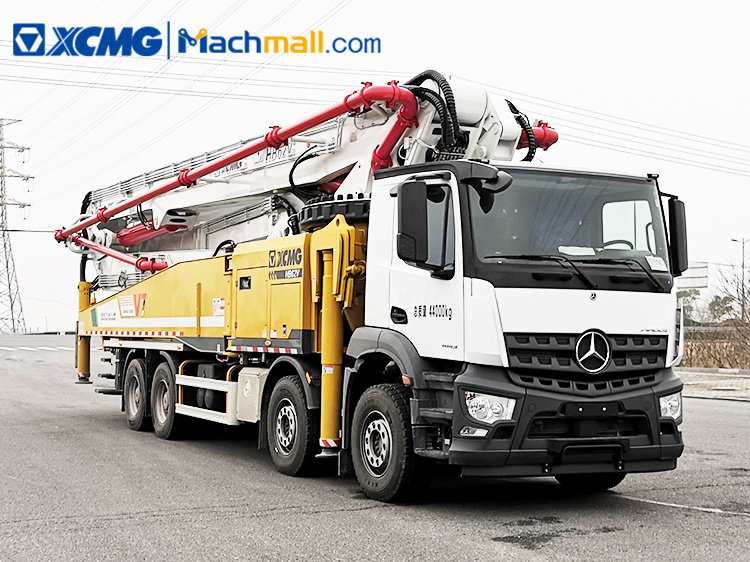

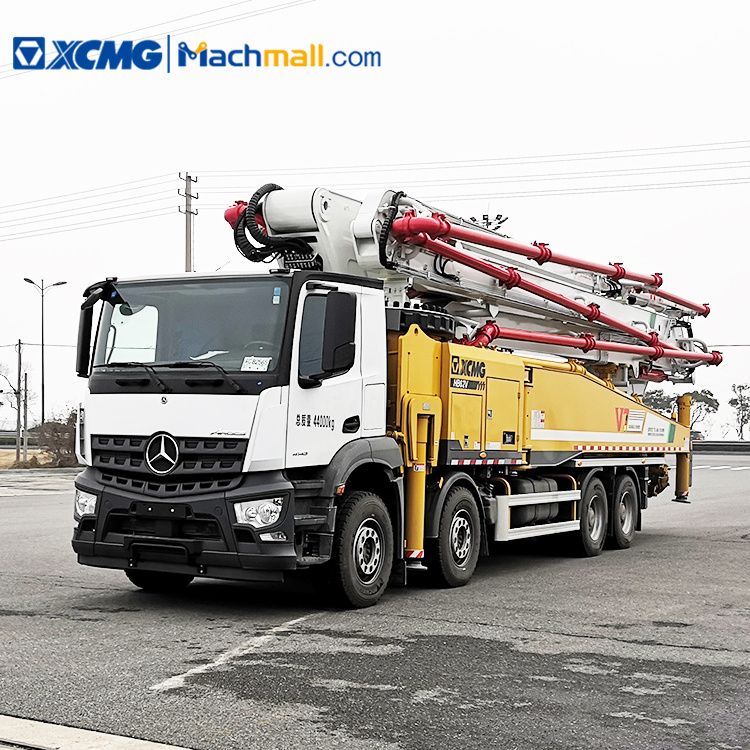

China XCMG concrete pump HB62V with Benz chassis price in Singapore.
China XCMG concrete pump HB62V is a new generation equipment which is developed by XCMG and SCHWING Germany technology.China xcmg concrete pump HB62V is equipped with Benz chassis, which has excellent roll resistance,ride stability and significant suspension comfort and maximum traction.
In the design, the Benz chassis is adopted, following the principle of "high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.A bran-new generation of wear parts
2.Transfer case's gear collision protection technology
3.Lower structure of high rigidity
|
Category |
Item |
Unit |
HB62V |
|
Overall |
Outline dimension |
mm |
14600×2530×4000
|
|
|
Overall weight |
kg |
44000 |
|
Chassis |
Brand |
/ |
Benz |
|
|
Model |
/ |
Actros 4141E5
|
|
|
Wheelbase |
mm |
"2020+4280+1350/
2300+4000+1350"
|
|
|
Max.power |
kW |
300 |
|
|
Emission standard |
/ |
China V |
|
Pumping system |
Theoretical |
m³/h |
170 |
|
|
Concrete pumping pressure |
MPa |
8.4 |
|
|
Theoretical pumping times |
times/min |
22~24 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ260×2200 |
|
Placing boom |
Reach height |
m |
61.1 |
|
|
Reach depth |
m |
43.6 |
|
|
Slewing radius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer |
/ |
Rock valve/S valve |
More XCMG Concrete Pump
Q: Who are we?
A: We are XCMG Group. Founded in 1989, we rank No. 3 in the world's construction machinery industry now. We are a large state-owned group with the largest scale, the most complete product range, the most competitive and influential construction machinery industry in China.
Q: What can we provide?
A: XCMG Group has 31 subsidiary companies and our equipment has been exported to 187 countries and regions. Our products involve hoisting machinery, earth-moving machinery, road machinery, concrete machinery, piling machinery, mining machinery, agricultural machinery, environmental machinery, fire fighting and aerial work machinery, port machinery, warehousing and logistics equipment, etc.
Q: How about after-sales service?
A: 1. XCMG Group pays attention to after-sales service throughout the product life cycle. As our distinguished service object, we always adhere to the service concept of customer first;
2. Online service: XCMG official platform Machmall.com: 12H+ online service, online technical support by engineers;
3. Overseas service: XCMG has more than 300 overseas distributors, more than 30 overseas subsidiaries and technology R&D centers, more than 2,000 accessory centers and service outlets, 15 production bases and KD factories, and 40 overseas offices.
Q: What is the relationship between Machmall.com and XCMG?
A: Machmall.com is the only global online platform officially launched by XCMG.
Q: How to tell whether it is XCMG official?
A: XCMG’s subsidiary companies have E-mails set up by XCMG Group ended with @xcmg.com, for example: machmall@xcmg.com. You have the right to request suppliers to use the E-mail of this kind to communicate.
Q: What are the advantages of purchasing online? Is there a guarantee?
A：1. Machmall.com aims to provide customers with 12H+ online after-sales service, online accessory purchase system, online second-hand equipment service,All series of XCMG construction machinery product, Chinese electro-mechanical equipment;
2. Machmall.com is responsible for every piece of equipment sold through the official channels of XCMG;
3. Purchasing on Machmall.com is more convenient, quicker and more economical; product series are more complete and information is more complete. Machmall.com supports online visit of the factories, VR show of products and product catalog download.
Q: Others:
A: For more questions about the distributors, exhibition halls, exhibitions, online factory visits, product details, and brand verification, you can contact us via email machmall@xcmg.com, online service, or leave a message on Machmall.com.
Product Catalog
