XCMG official 18m XZJ5317JQJD4 discount bridge inspection truck on sale
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Wheel
- Overall dimension:12000*2500*3980mm
- Max. horizontal working range:18m
- Rated load of platform:250kg
- Walking speed :13m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

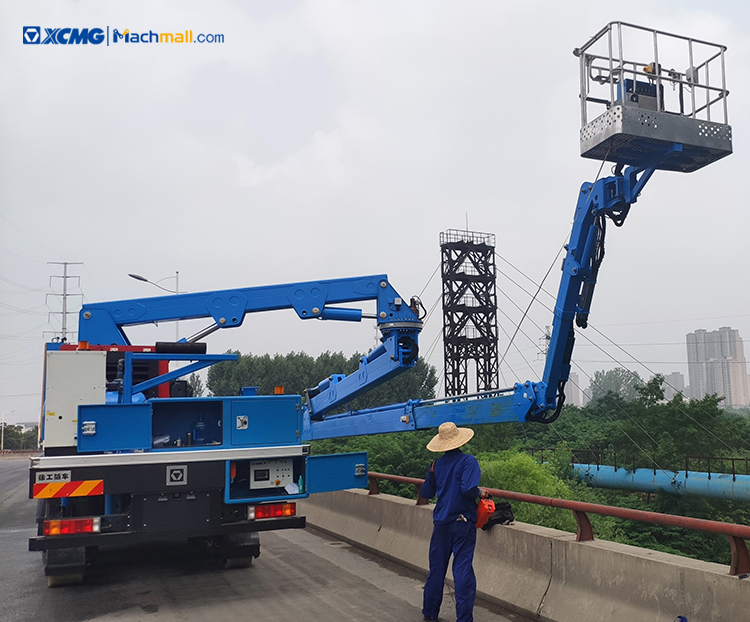

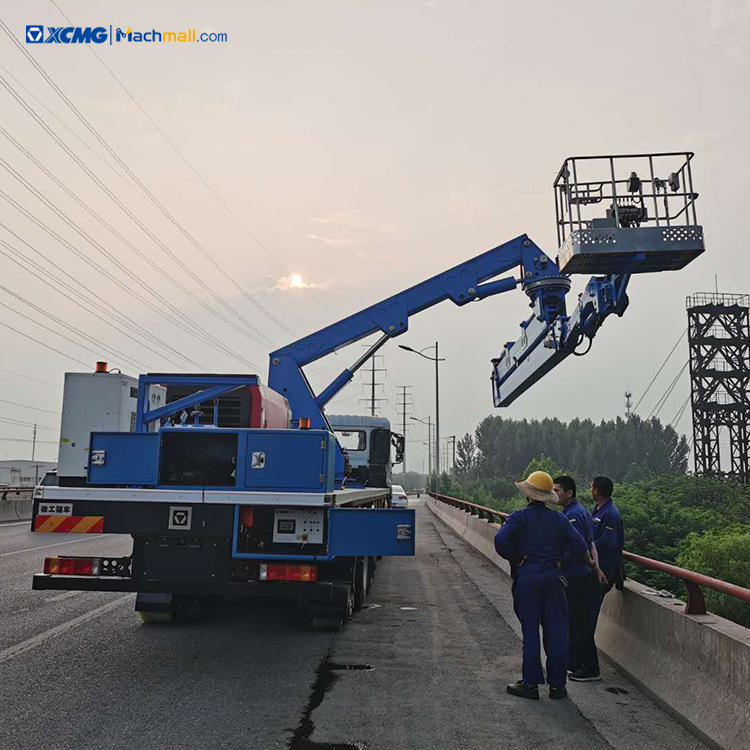

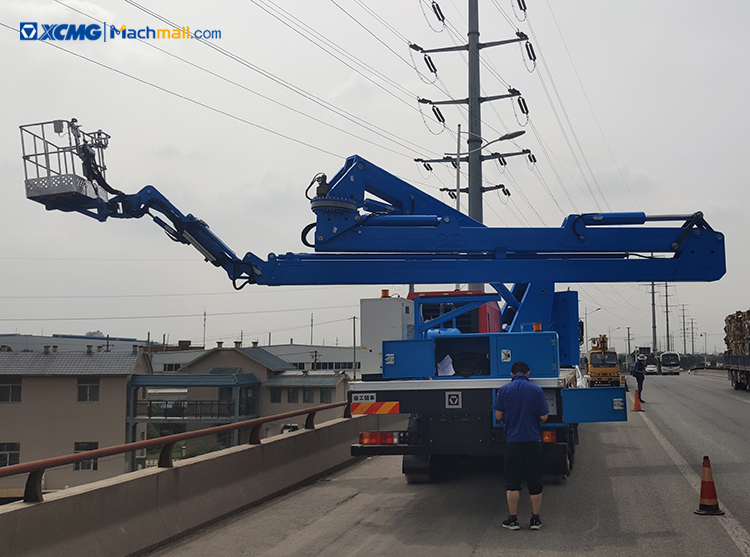

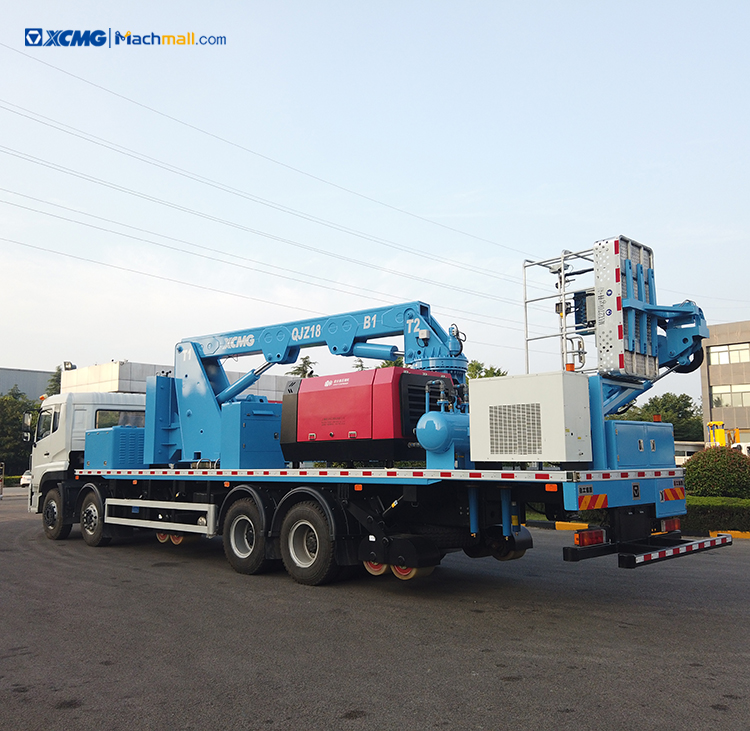

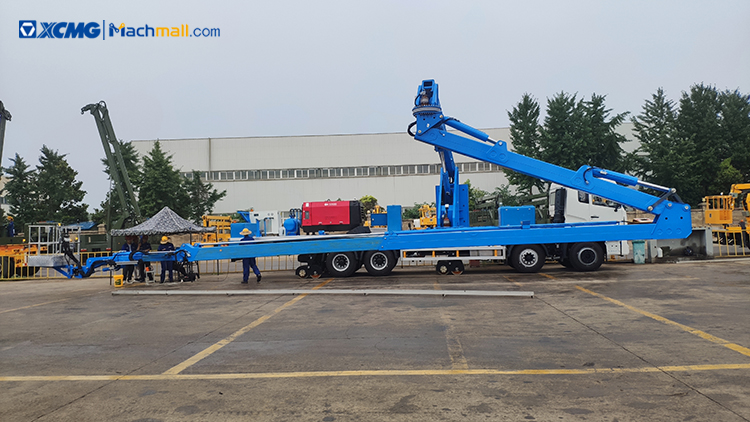

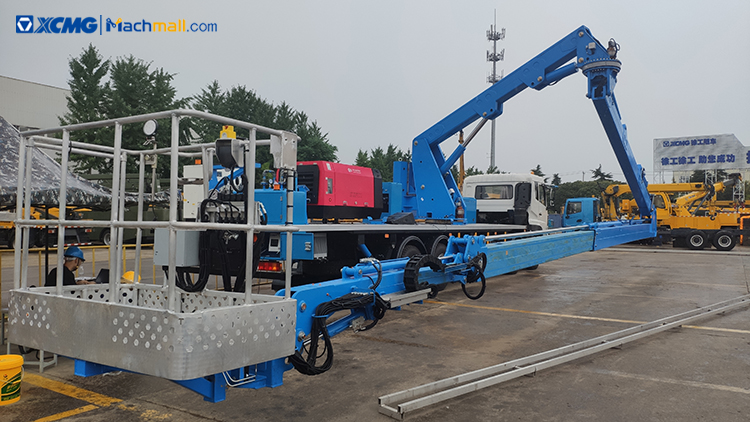

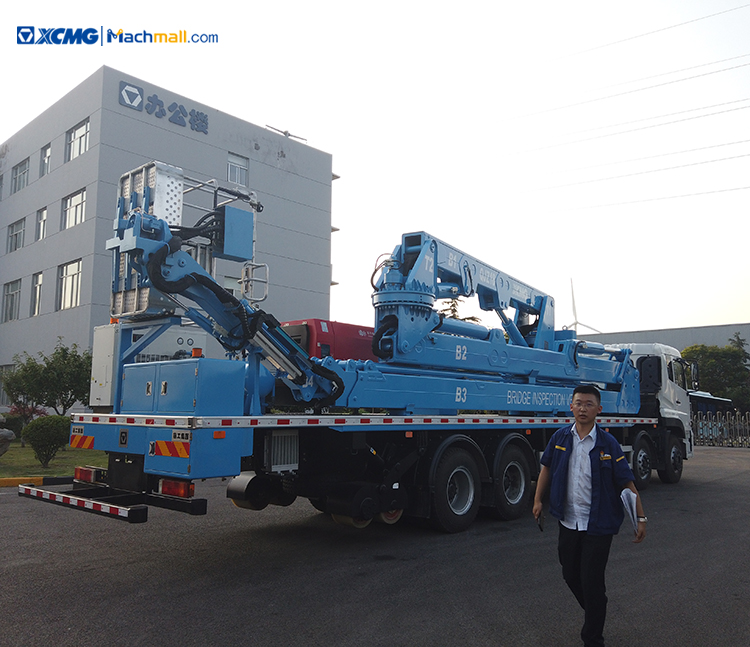

XCMG official 18m XZJ5317JQJD4 discount bridge inspection truck.
XCMG bridge inspection truck XZJ5317JQJD4 is a special vehicle, which supply work platform for person while working, it can be equipped with bridge detector, used for mobile inspection and maintenance work. Bridge inspection truck can be divided into bucket type.
Bridge inspection truck XZJ5317JQJD4 is a special equipment that can transport people, instruments, tools and materials under (or to the side of) the bridge body. It provides a working bucket to enable bridge maintenance personnel, instruments, tools and materials to approach the bridge body for corresponding construction operations.
1. Under-bridge access equipment type according to working equipment. under-bridge access equipment type use access platform, with good stability and big carrying capacity, it is convenient for personnel entering the platform from bridge or return to bridge.
2. Bucket type aerial platform, with compact structure, work is flexible, almost is not subject to the limit of bridge structure, it not only an inspect under bridge but also can inspect the upper structure outside the bridge, sometimes it can be used as an Aerial work platform.
|
Description |
Unit |
Parameter value |
|
Overall length of unit |
mm |
12000 |
|
Overall width of unit |
mm |
2500 |
|
Overall height of unit |
mm |
3980 |
|
Total weight of unit |
kg |
31000 |
|
Max. horizontal working range |
m |
18 |
|
Max. overcoming barrier |
m |
6.5 |
|
Max. overbridging of sidewalk |
m |
5.4 |
|
Max. overcoming barrier of show car |
m |
5.2 |
|
Max. overbridging of sidewalk of show car |
m |
5.4 |
|
Max. crossing box girder |
m |
6.9 |
|
Max. lowering depth |
m |
21.5 |
|
Max. reach overhead |
m |
19 |
|
Rated load of platform |
kg |
250 |
|
Overall dimensions of platform |
m |
1.2×0.8×1.1 |
|
Rotation range of 1st slewing organization |
° |
0~90 |
|
Rotation range of 2nd slewing organization |
° |
0~135 |
|
Walking speed |
m/min |
≥13 |
|
Chassis model |
Dong Feng DFL1311A10 (State IV)/DFH1310A1 (State V) |
|
|
Max.net power of engine |
315Ps (231.5kW) |
|
