XCMG HDD XZ120E Horizontal Directional Drill Rig machine for sale
![](/app/topc/statics/images/close.png)
![XCMG HDD XZ120E Horizontal Directional Drill Rig machine for sale](http://www.machmall.com/images/store/357636/item/37adce678e9b6defd9d9b1c64a8f090d.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):4500*1680*2170mm
- Weight:6 ton
- Power(W):74/2200kW/r/min
- Model Number:XZ120E
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
- Power Type:Diesel
- Type:horizontal directional drilling rig
Specifications
- weight:6000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

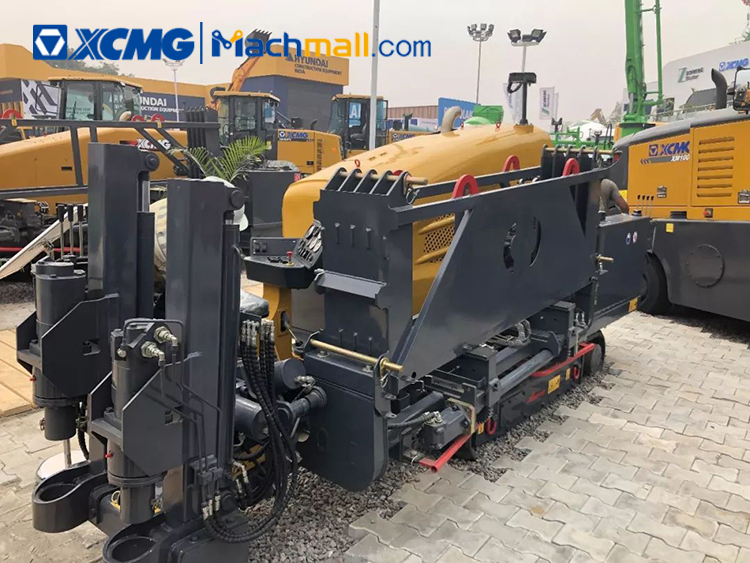

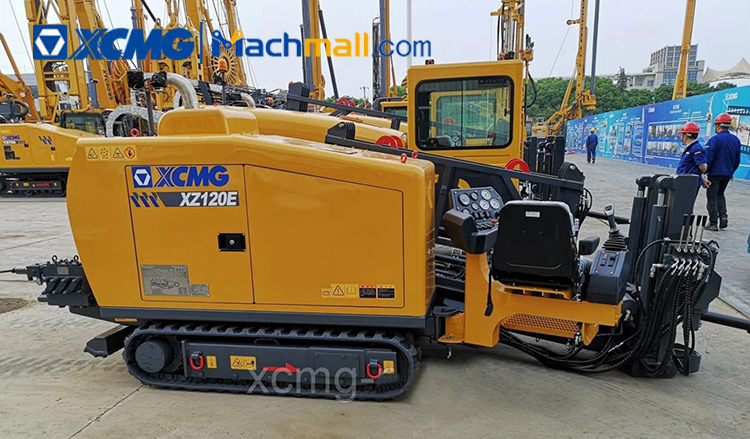

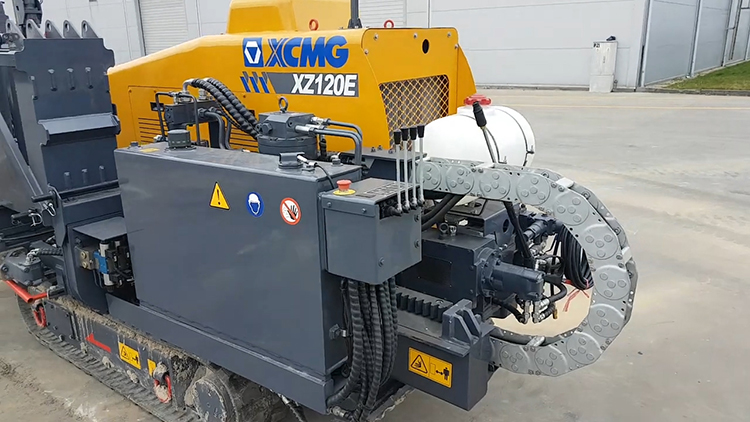

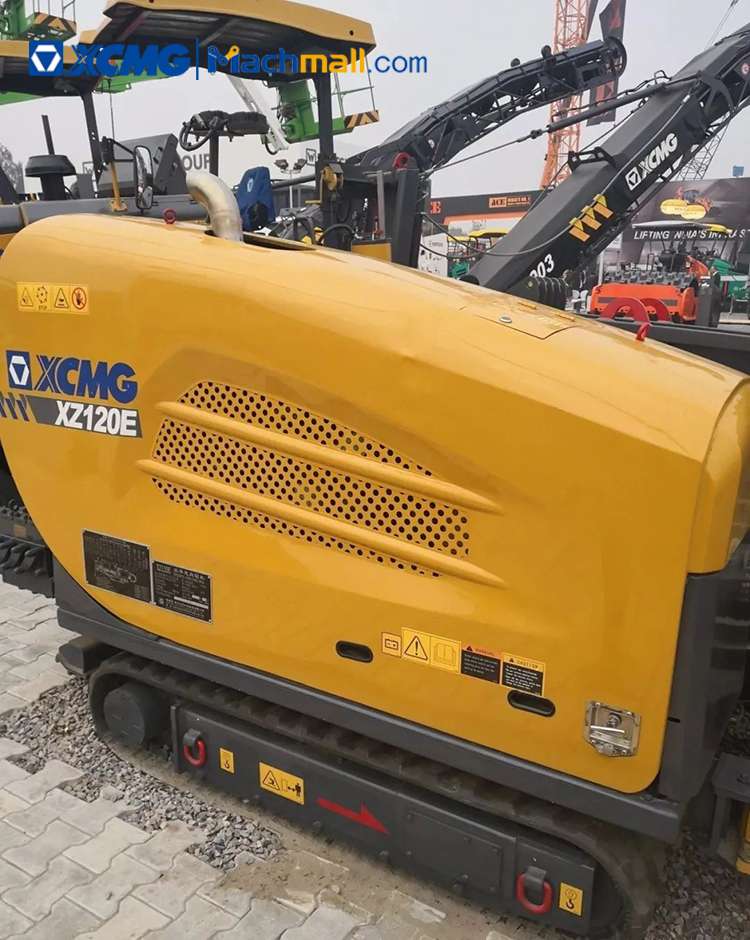

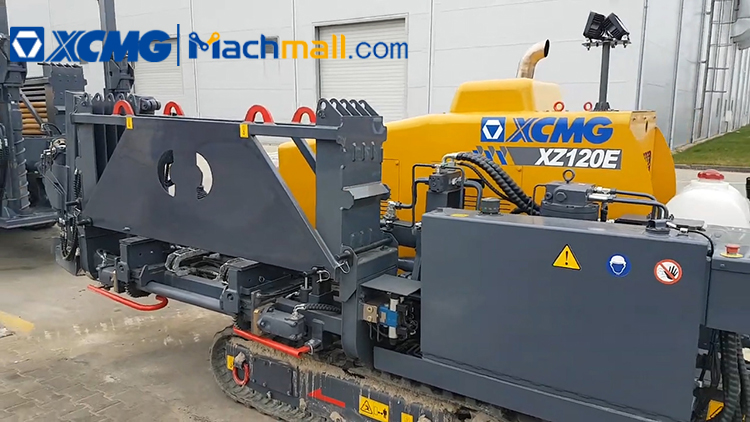

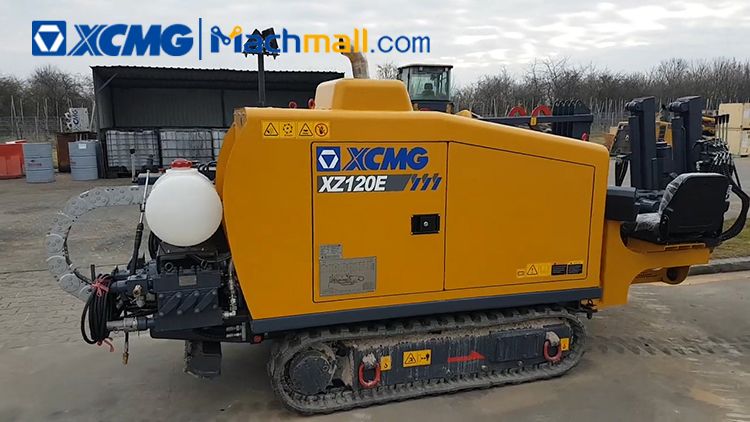

XCMG HDD XZ120E Horizontal Directional Drill Rig machine.
Application Scope of XCMG XZ Series HDD Horizontal Directional Drills machine:
XZ Series HDD Horizontal Directional Drills machine are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ series HDD horizontal directional drills machine have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. XCMG HDD horizontal directional drilling rig machine are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Highlights of XCMG HDD horizontal directional drilling rig machine XZ120E:
1. XCMG's smallest tonnage HDD horizontal directional drill machine, the equipment is small and flexible, and the minimum width is 1.45 meters, which can meet the requirements of narrow space construction.
2. The industry's first microcomputer equipped with a fully automatic loading and unloading device for drilling pipes, which can be operated by a single person.
3. Customized development of control system, system matching, engineering adaptability, strong regional adaptability.
XCMG HDD Horizontal Directional Drills machine Service:
XCMG can conduct customized research and development on horizontal directional drills based on customers and actual construction needs.
Project |
unit |
XZ120E |
Engine |
||
Model |
- |
Cummings 4BT3.9-C100 |
Rated power |
kW/r/min |
74/2200 |
Push and pull |
||
Maximum pushing force |
kN |
130 |
Maximum push pull speed |
m/min |
37 |
Rotate |
||
Torque |
N·m |
3000 |
Maximum speed |
r/min |
220 |
Mud pump |
||
Maximum flow |
L/min |
100 |
Maximum pressure |
MPa |
4 |
Drill pipe |
mm×m |
φ52×1.8 |
Truck mounted crane |
||
Lifting weight |
t |
—— |
Lifting torque |
t•m |
—— |
Maximum angle of penetration |
° |
18 |
Maximum diameter of back expansion |
mm |
φ400 |
Quality |
t |
4.5 |
Dimensions |
mm |
4500×1680×2170 |
Remarks |
- |
Overseas supply |
