![XCMG wheeled excavator 20 ton excavator with tires XE210WB price XCMG wheeled excavator 20 ton excavator with tires XE210WB price](http://www.machmall.com/images/store/357636/item/26ef07e0b5d3f5d3e6318f150f63a3c4.jpg_l.jpg)
XCMG wheeled excavator 20 ton excavator with tires XE210WB price
![](/app/topc/statics/images/close.png)
![XCMG wheeled excavator 20 ton excavator with tires XE210WB price](http://www.machmall.com/images/store/357636/item/26ef07e0b5d3f5d3e6318f150f63a3c4.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Max Digging Radius:9840mm
- Machine Weight:20500kg
- Maximum Digging Depth:6460mm
- Maximum Digging Height:9000mm
- Bucket Capacity:0.86m3
- Model Number:XE210WB
- Brand Name:XCMG
- Place of Origin:XUHZOU, CHINA
Specifications
- weight:20500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

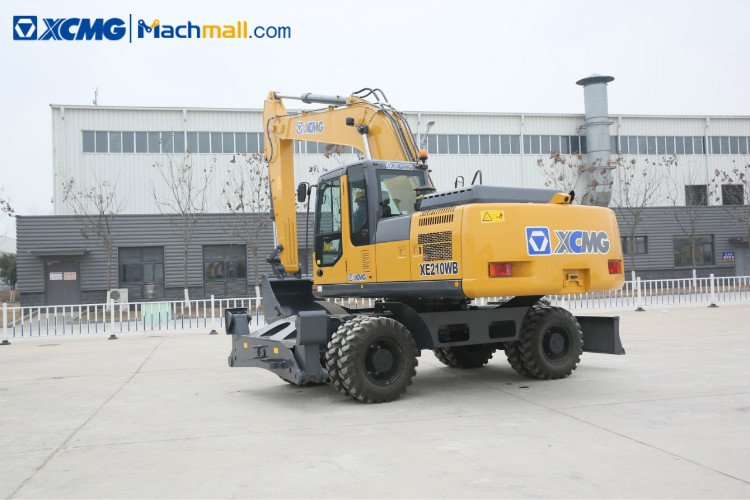

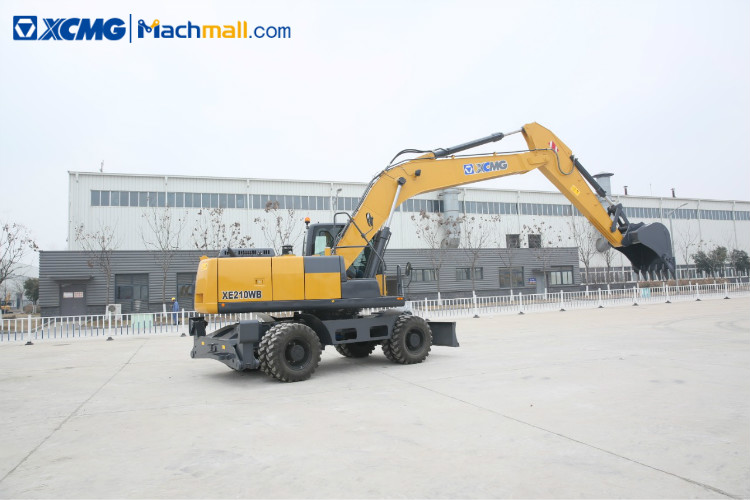

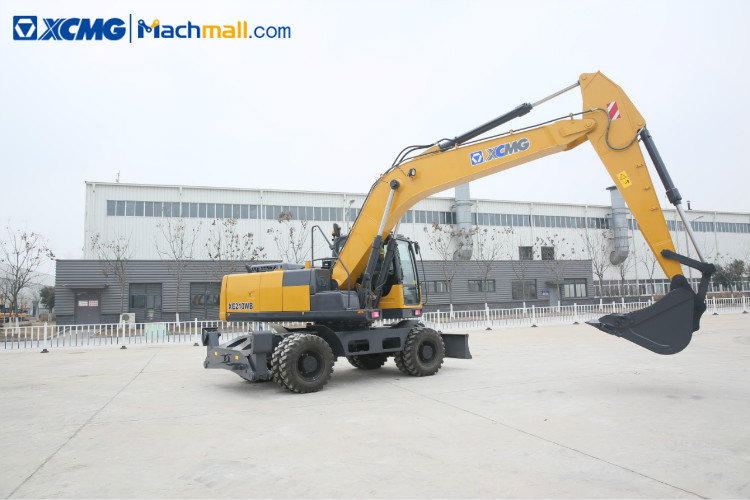

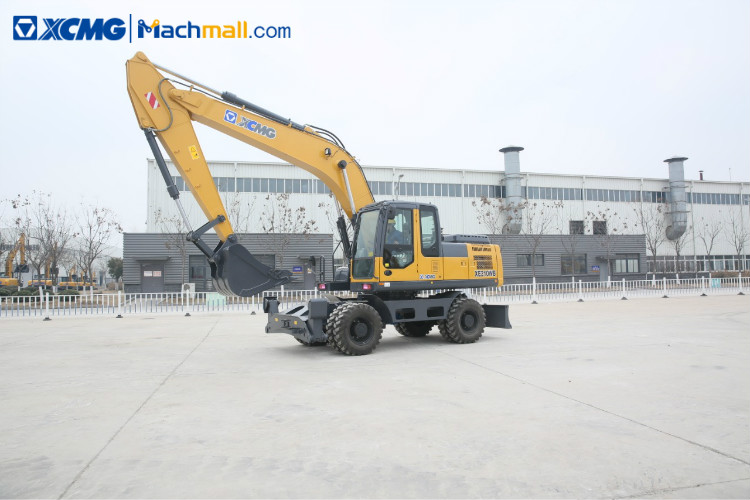

XCMG wheeled excavator 20 ton excavator with tires XE210WB.

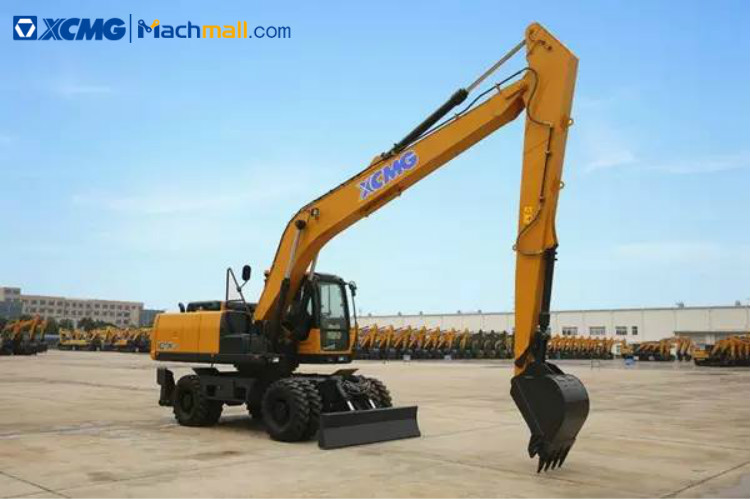

With its excellent stability, high mobility, first-class digging force and two kinds of working equipment options (single and double boom), XCMG XE210WB wheeled hydraulic excavator is strong enough to cope with a variety of working environments.
1, By applying a series of new technologies and multiple functions, the product can guarantee customers' comprehensive benefits and low use costs.

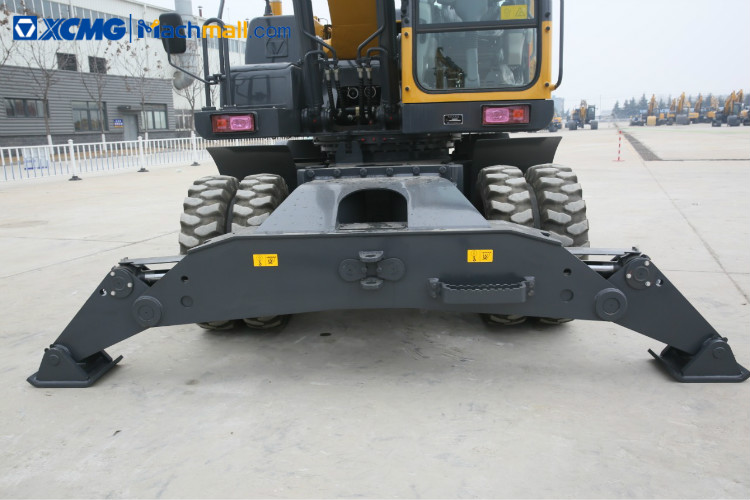

2, Adopt the dozer blade that can move in parallel and the assistant stabilizing outrigger to improve the stability of the machine support.The outrigger and dozer blade in contact with the ground are carefully designed to prevent damage to the asphalt pavement.
3, The advanced wheel brake system makes the machine brake more effectively. It eliminates the rocking effect of the machine on the wheels when excavating.
4, The transmission and axle integrated braking system can ensure the safety and meanwhile minimize the vibration of the whole machine, and effectively improve the braking stability.
5, Along with the self-developed intelligent control system of multi-functional attachments, the machine can perform multiple operations, including crushing, shearing, cleaning, compacting, milling and planning, pushing, clamping, grasping, scraping, loosening and lifting.

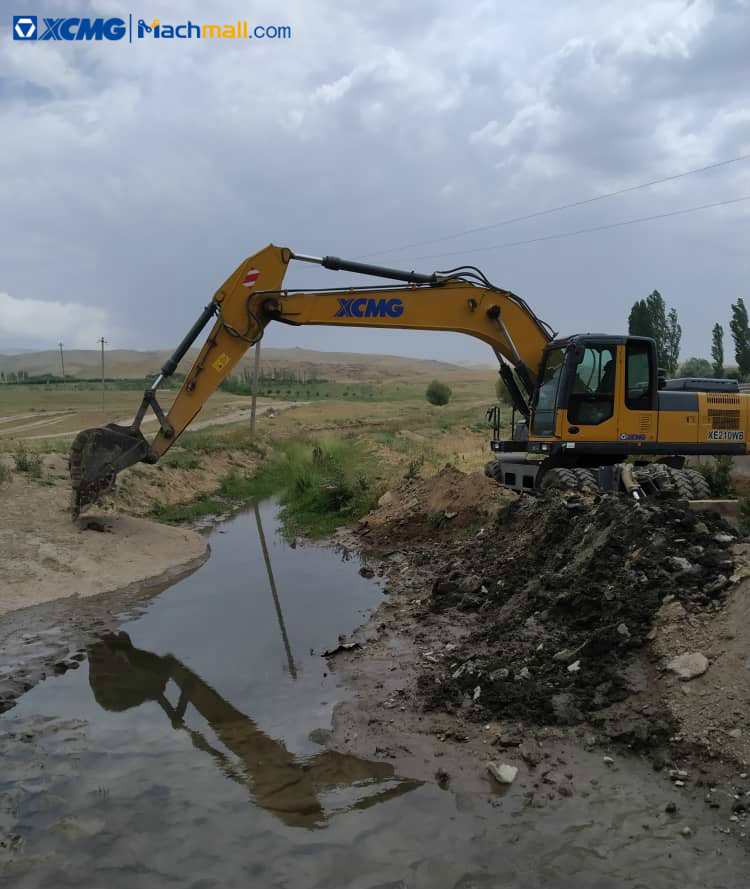

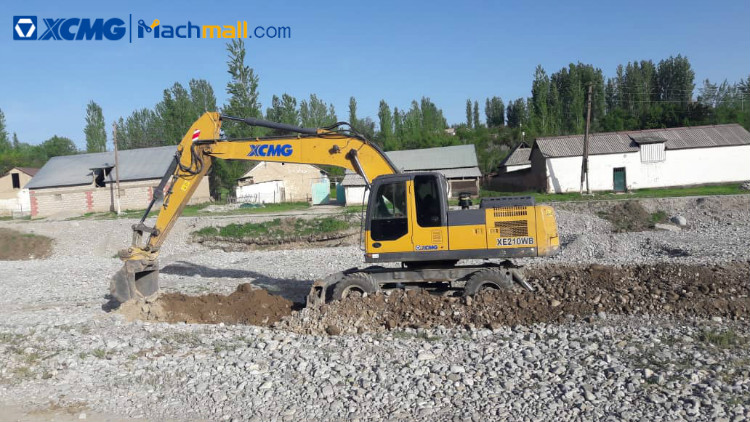

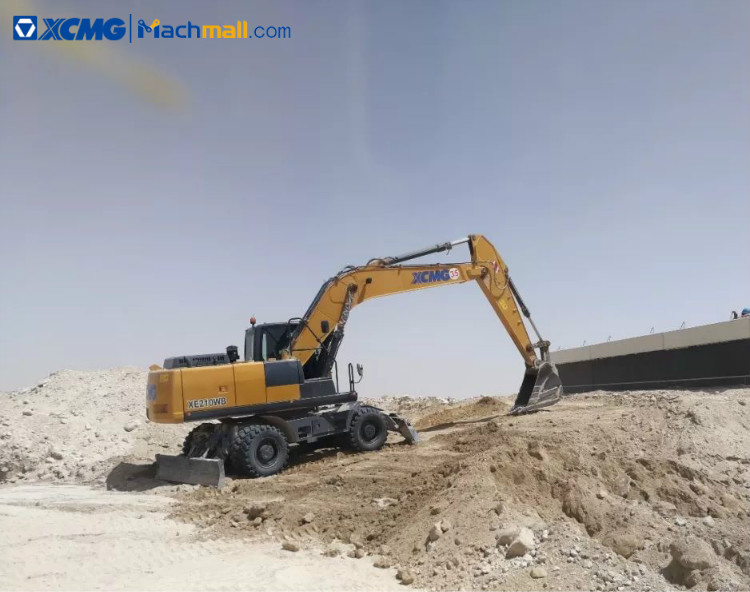

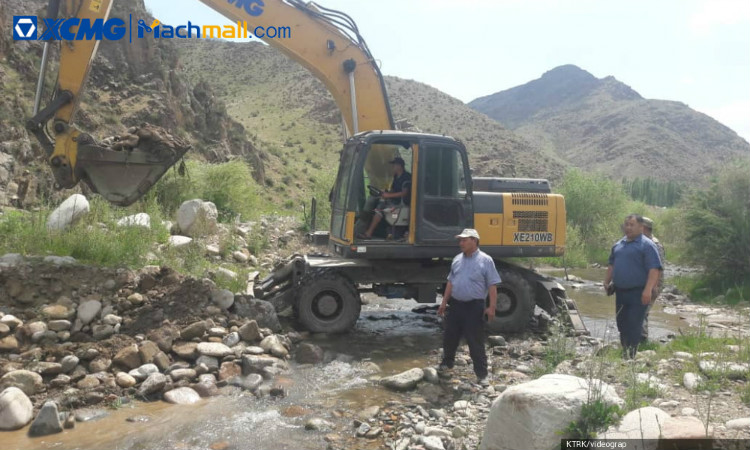

6, It is widely used in the earthwork construction of city water, municipal engineering, pipeline maintenance engineering, civil engineering, industrial material loading and unloading, tunnel excavating, water conservancy engineering, urban demolition and relocation.
Model |
|
unit |
XE210WB |
Operating weight |
|
Kg |
20500 |
Bucket capacity |
|
m³ |
0.86 |

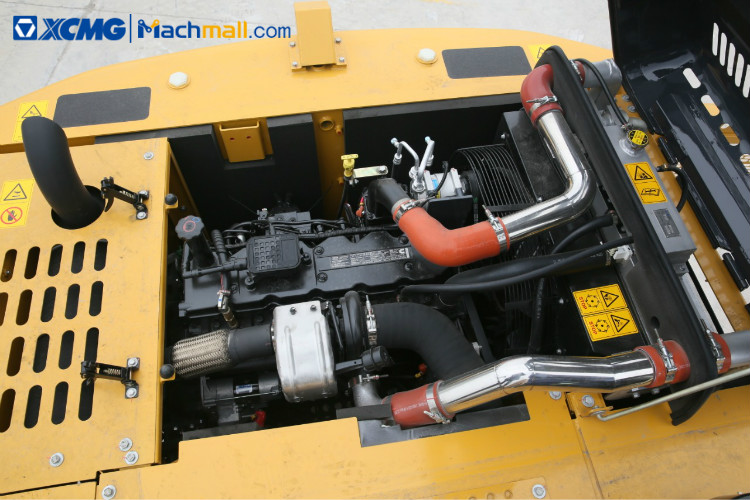

Engine |
Model |
/ |
QSB7 |
|
No.of cylinders |
/ |
6 |
|
Rated power/speed |
kw/rpm |
135/2050 |
|
Maximum torque/speed |
N.m |
740/1200 |
|
Displacement |
L |
6.7 |
Main performance |
Travel speed(H/L) |
km/h |
31/9.5 |
|
Swing speed |
r/min |
13 |
|
Gradeability |
° |
≤30 |
|
Arm digging force |
kN |
100 |
Hydraulic System |
Main pump |
/ |
Two piston pumps |
|
Rated flow |
L/min |
2×220 |
|
Main safety valve pressure |
MPa |
31.4/34.3 |
|
Travel system pressure |
MPa |
31.4 |
|
Swing system pressure |
MPa |
28 |
|
Pilot system pressure |
MPa |
3.9 |
Oil Capacity |
Fuel tank capacity |
L |
305 |
|
Hydraulic tank capacity |
L |
202 |
|
Engine oil capacity |
L |
17.5 |
Appearance |
Total length |
mm |
9597 |
|
Total width |
mm |
2552 |
|
Total height |
mm |
3590 |
|
Width of platform |
mm |
2490 |
|
Total width of chassis |
mm |
2495 |
|
Wheel base |
mm |
2850 |
|
Counterweight clearance |
mm |
1250 |
Working scope |
Max. digging height |
mm |
9000 |
|
Max. dumping height |
mm |
7000 |
|
Max. digging depth |
mm |
6460 |
|
Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6285 |
|
Max.vertical digging depth |
mm |
5810 |
|
Max. digging radius |
mm |
9840 |
|
Min. swing radius |
mm |
2820 |
Standard |
Boom Length |
mm |
5700 |
|
Arm Length |
mm |
2900 |
|
Bucket Capacity |
m³ |
0.86 |
More About XCMG wheel excavator
