Summary
- Fork Width: 40mm
- Fork Length:1070mm
- Min Lifting Height:2060mm
- Max Lifting Height:4058mm
- Rated Loading Capacity:2000kg
- Power Source:AC Motor
- Model Number:CPD20TV8
- Brand Name: EP
- Place of Origin:Zhejiang, China
Specifications
- Weight:3430.000kg
- Condition:New
- Moving Type:Other
- Certification:CE, ISO9001
- Drive motor:4.8x2kW
- Tyre type:Solid Rubber
- Lift motor:11kW
- Battery voltage:48/600 V/ Ah
- Steering type:Mechanical/ hydraulic
- Battery weight:933kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

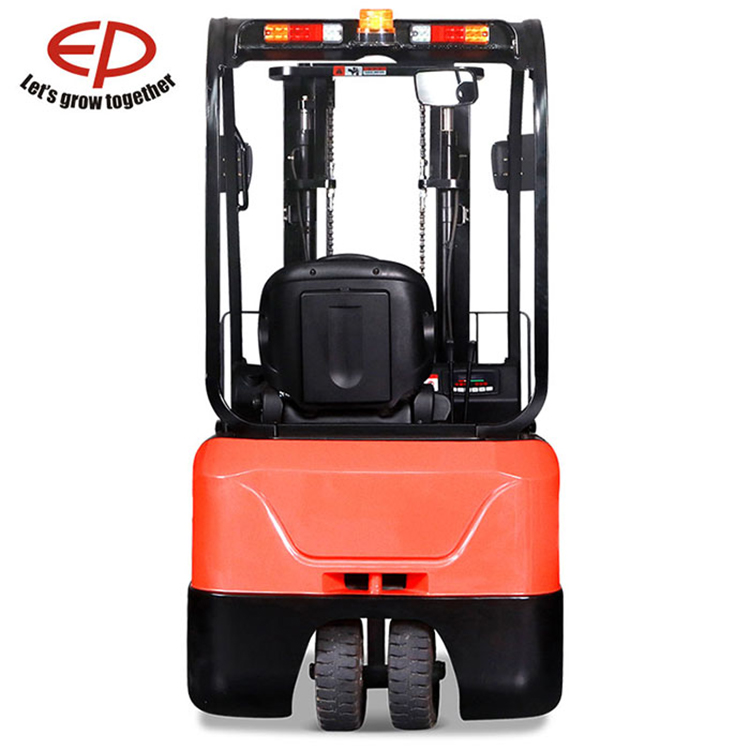

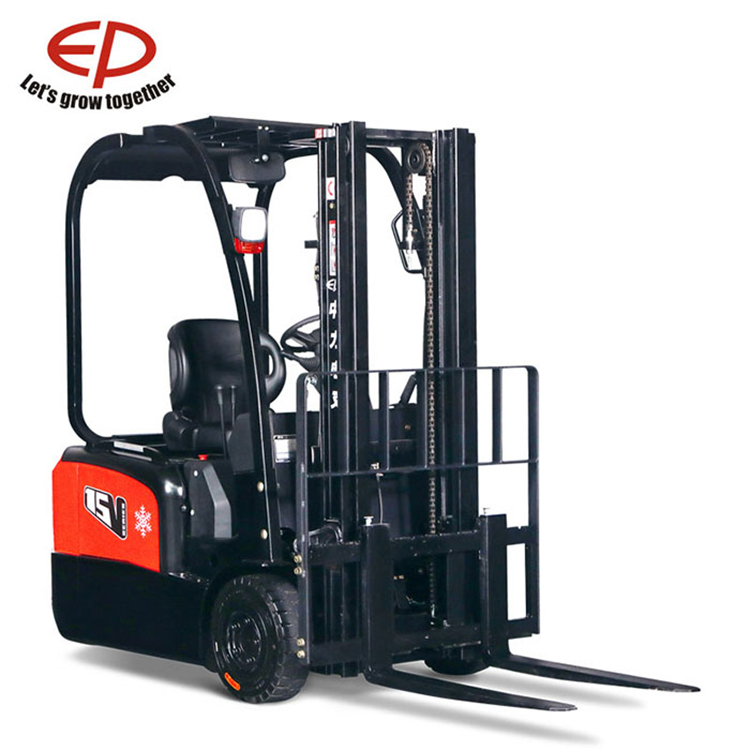

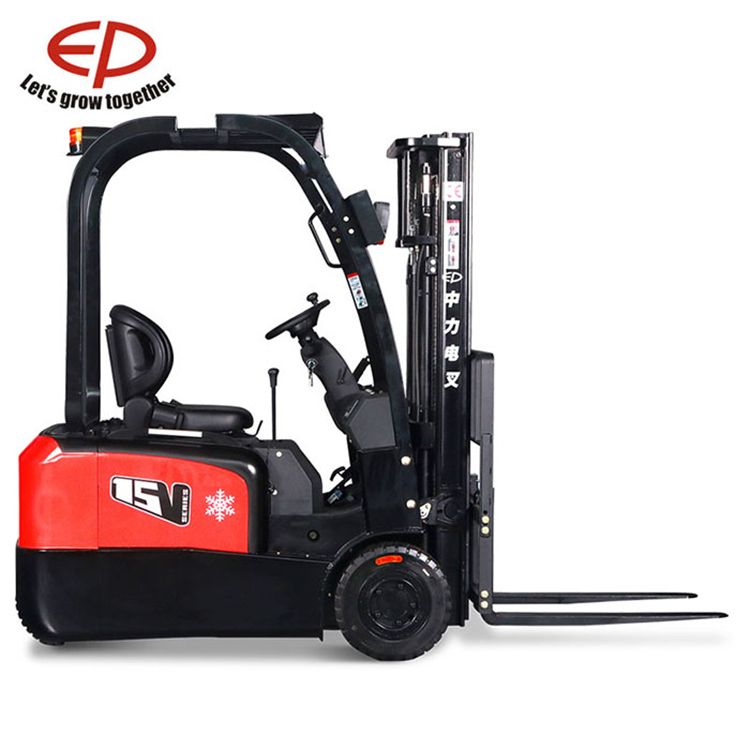

China EP warehouse forklift with three wheel 2.0 ton 4m lift height.
China EP warehouse forklift with three wheel 2.0 ton 4m lift height is the preferred solution for medium and large warehouses, medium and large load applications, terminals, logistics and distribution, and manufacturing warehouses. This three-wheel forklift belonging to the company's TV8 series has a very wide range of uses.
Our high-quality three-wheel forklifts have excellent performance, stability, reliability and high efficiency. China EP warehouse forklift with three wheel 2.0 ton 4m lift height uses high-quality components, including Schabmüller motors and ZF gearboxes from Germany.
Advantages:
2.International quality components
3.Premium configuration, Super performance
|
Distinguishing mark |
|
Unit |
Value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
CPD20TV8 |
|
rated capacity |
Q |
kg |
2000 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1358 |
|
Self weight (include battery) |
|
kg |
3430 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
1990 |
|
Free lift (load backrest) |
h2 |
mm |
120 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4058 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2060 |
|
Fork dimensions |
|
mm |
40X100X1070 |
|
Overall length |
l1 |
mm |
2895 |
|
Overall width |
b1/ b2 |
mm |
1150 |
|
Turning radius |
Wa |
mm |
1605 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
13/ 14 |
|
Lifting speed |
|
m/s |
0.26/ 0.43 |
|
Lowering speed |
|
m/s |
0.44/ 0.435 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
4.8x2 |
|
Lift motor rating at S3 15% |
|
kw |
11 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
48/600 |
|
Battery weight |
|
kg |
933 |
