XCMG 20ton XCT20L5 Used Telescopic Boom Truck Cranes For Sale, MACHMALL

Used Equipment > Used Engineering & Construction Machinery > Used Truck Crane

XCMG 20ton XCT20L5 Used Telescopic Boom Truck Cranes For Sale

FOB Price: $100000.000

View All >

Model： XCT20L5

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG 20ton XCT20L5 Used Telescopic Boom Truck Cranes For Sale

Quantity:

- + /Set

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT20L5

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Used Equipment

XCT20L5

CE/IOS9001

XCT20L5

XCMG

Xuzhou, China

47600mm

20ton

900kN.m

20ton

Construction

+ Add a Product

Summary

Certification:CE/IOS9001
Model Number:XCT20L5
Brand Name:XCMG
Place of Origin:Xuzhou, China
Max. Lifting Height:47600mm
Max. Lifting Load:20ton
Rated Lifting Moment:900kN.m
Rated Loading Capacity:20ton
Application:Construction

Specifications

Weight:29400.000kg
Condition:Used
Moving Type:Other
Dimensions:12262*2500*3410mm
Driving speed:80/85km/h
Max. grade ability:42%
Engine rated power:192/2300 kw/(r/min)
Min. ground clearance:261mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Delivery Port:Any Port In China

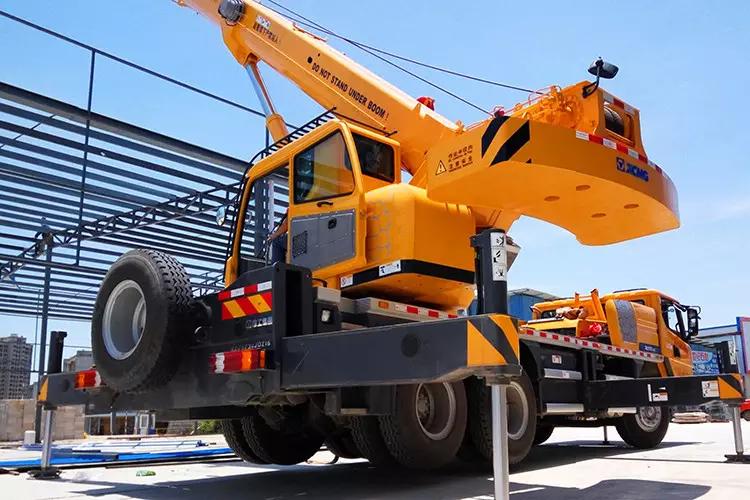

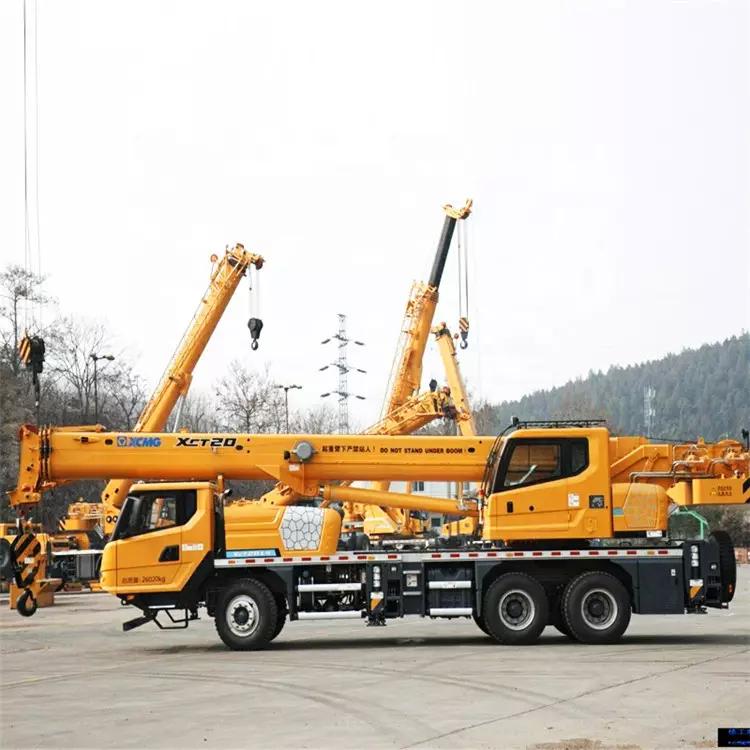

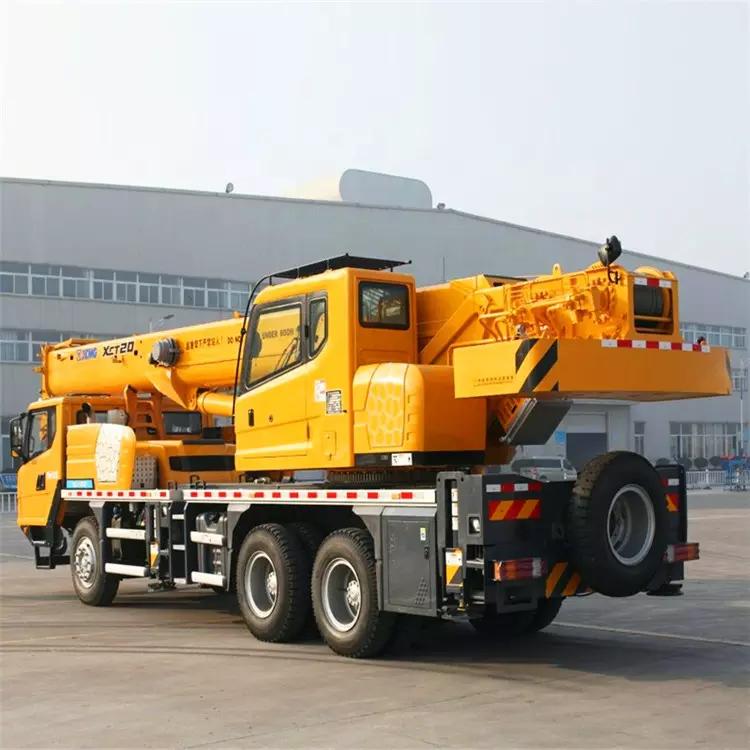

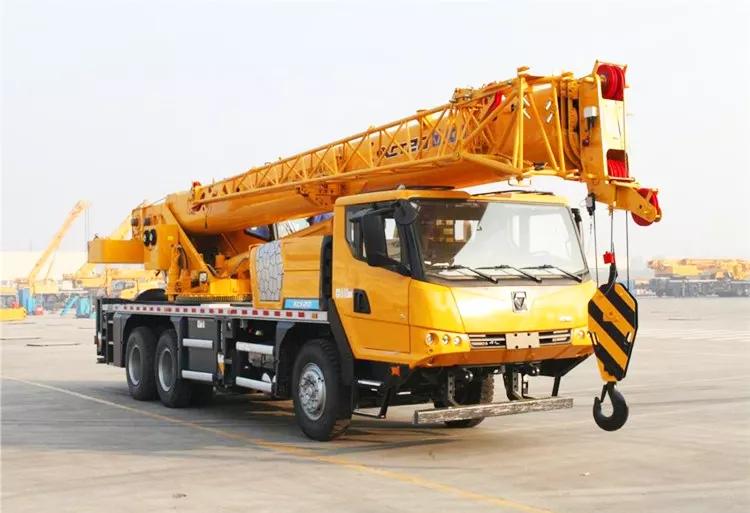

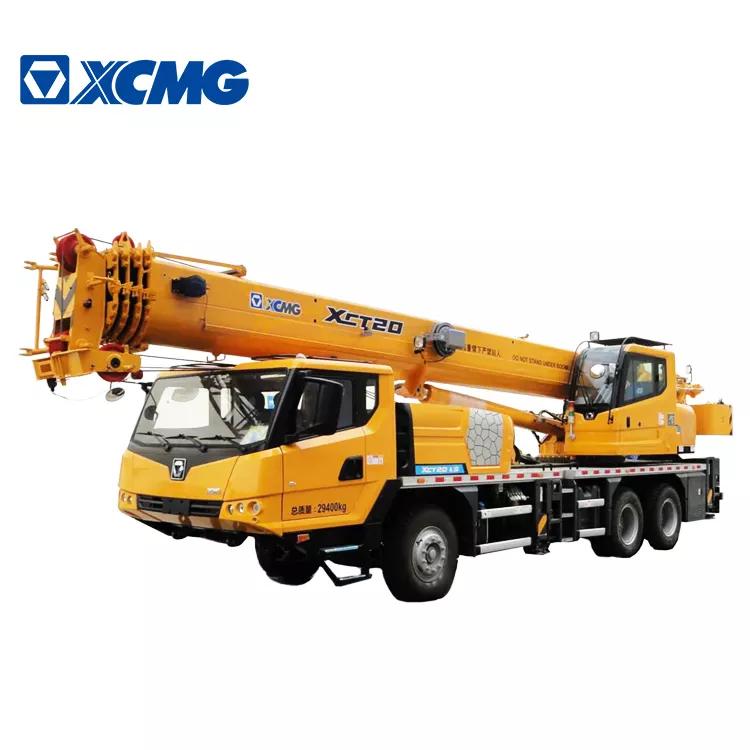

XCMG 20ton XCT20L5 Used Telescopic Boom Truck Cranes For Sale

XCMG 20ton XCT20L5 Used Telescopic Boom Truck Cranes was factory in 2017;

The rated loading capacity is 20t, and the total vehicle mass is 29400kg;

The Rated Lifting Moment is 900kN.m, and the rated power is 192/2300 kw/(r/min).

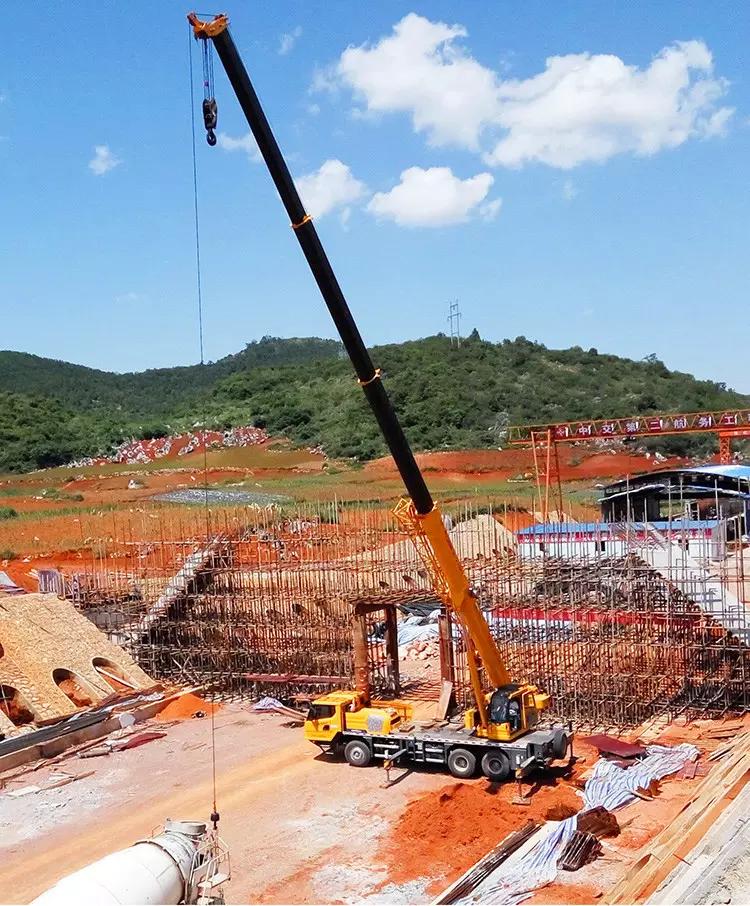

XCMG telescopic boom truck cranes XCT20L5 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.

Category	Item		Unit	Parameter
Outline Dimensions	Overall length		mm	12262
	Overall width		mm	2500
	Overall height		mm	3410
	Wheel base	Axles 1 and 2	mm	4425
		Axles 2 and 3	mm	1350
	Track		mm	Hande 2027/1834
				Meritor 2055 /1834
Weight	Dead weight in travel configuration		kg	29400
	Axle load	Axle 1	kg	6400
		Axles 2 and 3	kg	23000
Travel	Travel speed	Max. travel speed	km/h	80/85
		Min. stable travel speed	km/h	2~3
	Min. turning diameter		m	20
	Min. ground clearance		mm	261
	Departure angle		°	13
	Braking distance (at 30 km/h)		m	≤10
	Max. grade ability		%	42/47(China National IV)
				42 (China National V)
	Oil consumption per 100 km (theoretical)		L	33

XCMG STORY

XCMG RECONDITIONED MACHINE

XCMG reconditioned machine is the second-hand machine program launched by XCMG for the post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG machine that falls into strict standards: good condition, full function and low service hours. The returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG, and the product life is therefore extended. The price of XCMG reconditioned machine is far lower than that of the new one, but its performance and safety are not compromised thanks to XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns, XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue third-party certification.

OUR TEAM

150+ SPECIALISTS

150+ specialists participate in the reconditioning process.

Inspection Team

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.

Reconditioning and Repairing Team

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

Issuing Report Team

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

OUR FACTORY

REMANUFACTURING FACTORY

RECONDITION PROCESSES

RECONDITION PROCESSES OF THE USED

We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity, elaborate designs and exquisite craftsmanship.

COLLECTION

Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with light deprecation, low working hours and full functions can be collected.

INSPECTION

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.

RECONDITIONING AND REPAIRING

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

TESTING

Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.

READY FOR DELIVERY

Ready for Delivery!!!

ISSUING REPORT

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

PAINTING

The whole machine is repainted to restore its appearance. Bright as new.

FAQ

FREQUENTLY ASKED QUESTIONS

1.What’s the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.

3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.

4.Can you satisfy my special requirement?

As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).

5.What is accpetable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
