EMSUNTOUR Diesel 54 Ton Underground Mining Dump Truck ST54, MACHMALL

Energy & Mining Equipment > Mining Machinery > Mining Dump Truck

Brochure

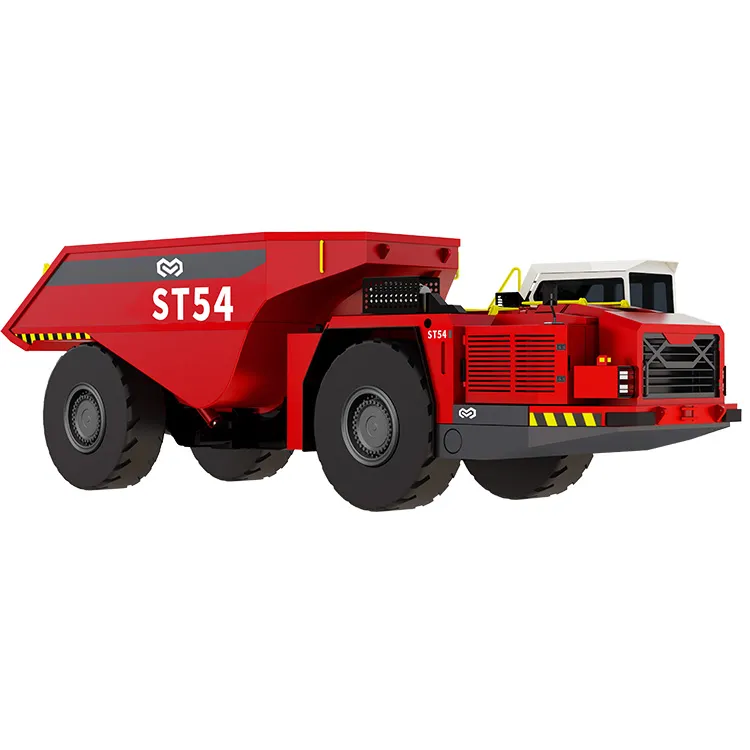

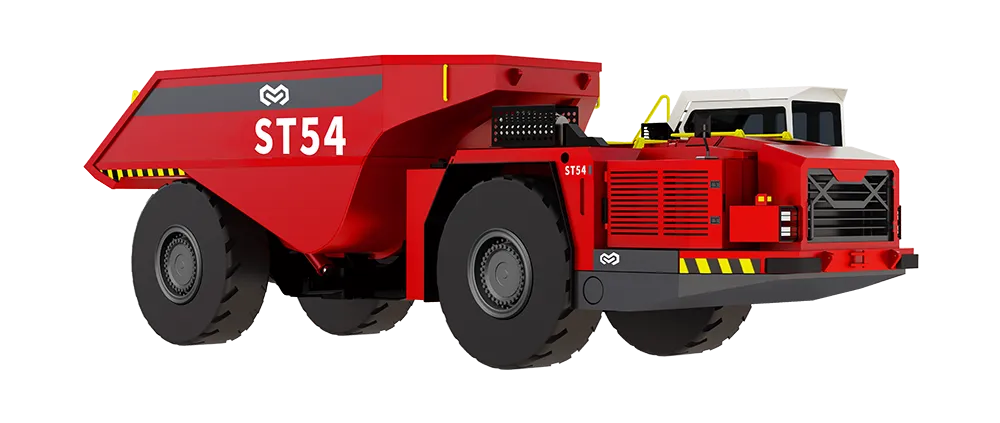

EMSUNTOUR Diesel 54 Ton Underground Mining Dump Truck ST54

View All >

Model： ST54

Engine： Volvo

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

EMSUNTOUR Diesel 54 Ton Underground Mining Dump Truck ST54

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

ST54

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Model Number

Place of Origin

Max. Speed

Loading Height

Brand Name

Energy & Mining Equipment

ST54

11,680*3,250*3,190mm

46,500kg

515,000

ST54

China

31km/h

6,950mm

EMSUNTOUR

+ Add a Product

Summary

Certification:KA
Dimension(L*W*H):11,680*3,250*3,190mm
Weight:46,500kg
Power(W):515,000
Model Number:ST54
Place of Origin:China
Max. Speed:31km/h
Loading Height:6,950mm
Brand Name:EMSUNTOUR

Specifications

Weight:46500.000kg
Condition:New
Moving Type:Other
Standard bucket :27m³
Rated load capacity:54,000kg
Outer Turning Radius:9,751mm
Diesel Engine:Volvo
Parking Brake:SAHR
Inner Turning Radius:5,150mm
Automatic central lubrication:LINCOLN
Centralized Fire Extinguishing System:Ansul/Protecfire
Emissions:Euro Stage Ⅳ
Remote control system:National
Axle:DANA
Ground Clearance:370mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Product Description

EMSUNTOUR diesel underground dump truck ST54 has a rated load capacity of 54 tons.The ST54's core parts come from internationally renowned brands, and its control system uses CAN-bus communication technology.The on-board display shows real-time operating parameters and it has the functions of fault alert and self-diagnosis.

The vehicle is equipped with Volvo engine and the emission meets Euro III standard. The seat is designed with ergonomics and humanization in mind, offering excellent visibility and comfort. Optional equipment includes the Lincoln automatic centralized lubrication system, the Ansul centralized fire extinguishing system, and an engine that meets Euro IV emission standards.

ST series includes 15 tons, 20 tons, 30 tons, 42 tons, 54 tons payload of ST15, ST20, ST30, ST42, ST54, ST20 Battery, ST30 Battery, ST42 Battery models, suitable for different working condition.

Main Benefits

- ST42 utilizes advanced power transmission technology, ensuring the vehicle is powerful and the system is stable and reliable.

- Its fast response operation reduces dumping time for minerals and enhances operating efficiency.

- The cab adheres to ROPS/FOPS standards, ensuring driver safety.

- The vehicle is constructed with high-quality structural steel, and the cargo box is made of high-strength, wear-resistant steel with a reinforced design, increasing the vehicle's durability.

- It supports various intelligent systems, including line-of-sight remote control, remote driving, intelligent collision early warning, blind-spot monitoring, driver fatigue monitoring, and other flexible options.

Product	Underground Mining Dump Truck ST54
Payload	54,000kg
Standard Bucket Capacity	28m³
Dimension	11,6803,2503,190mm

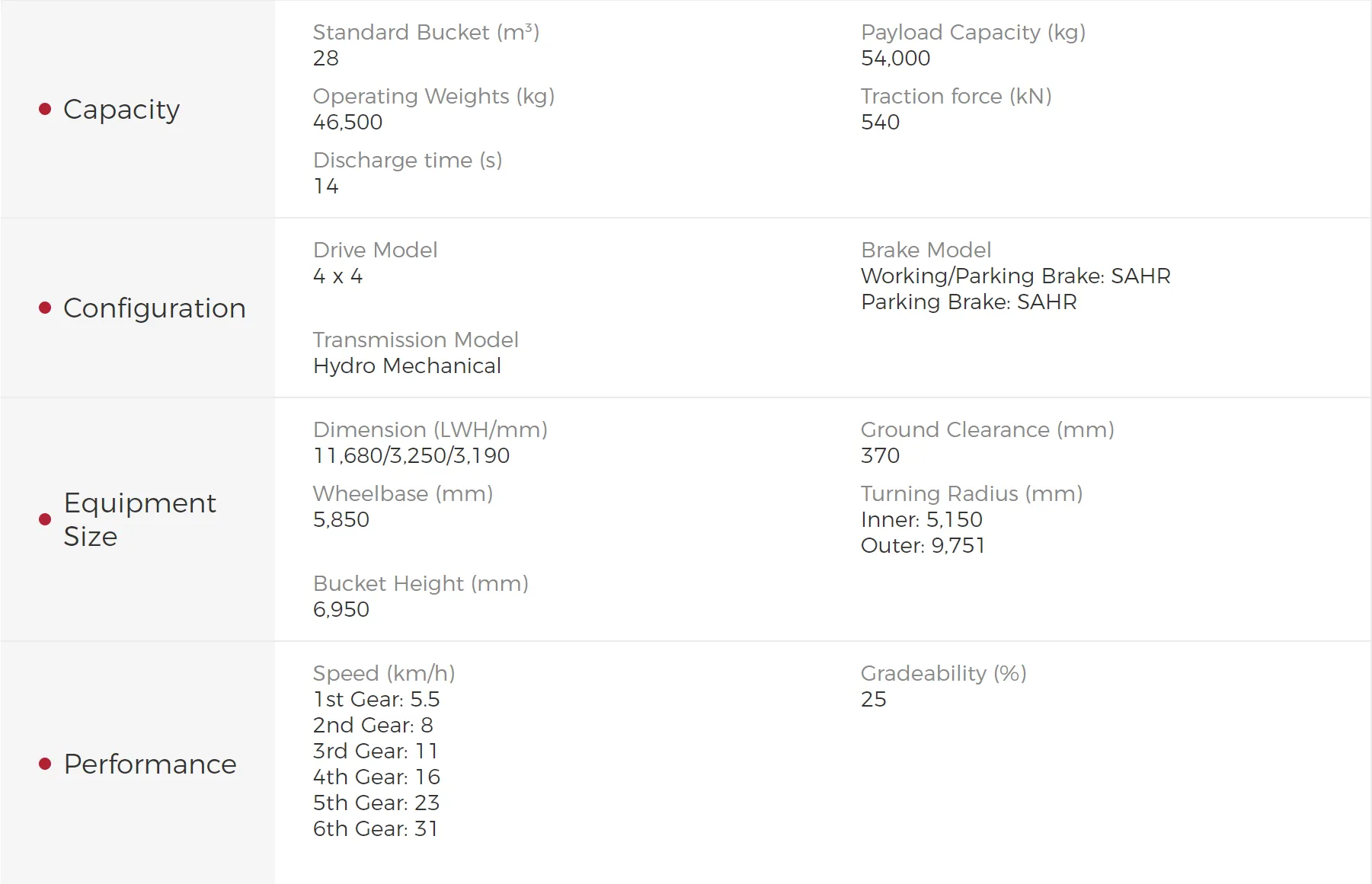

Main Parameters

Company Profile

Hubei Shentuo Intelligence Equipment Co., Ltd. (referred to as“EMSUNTOUR”) is a wholly-owned subsidiary of Xiamen Yimu Intelligence Technology Co., Ltd. It has an R&D center in Wuhan and two production bases in Suizhou and Wuhai. It is a technology-oriented company, focusing on the research and development, production, sales, after-sales and export of underground equipment for metal mining and coal mining, its products are aimed at the global market.

Based on scientific and technological innovation, EMSUNTOUR has a new generation of underground dump trucks, underground loaders, underground concrete mixer trucks and other series of battery electric and diesel models to meet customers' mining needs in various situations, in order to upgrade production efficiency and economic benefits of mining, and strive to improve the security and happiness of underground workers.

EMSUNTOUR adopts an advanced quality management system to provide top-quality underground equipment. At the same time, we adhere to intelligent manufacturing and builds up industry-leading manufacturing capabilities for underground equipment through advanced ERP and information systems to ensure product delivery cycles. In future, EMSUNTOUR will continue to be committed to all-round innovation, providing more intelligent and efficient technologies and products for the domestic and international mining industries, and working hard to promote productivity improvement, industry development, and ESG construction!
