EMSUNTOUR 4 Cbm Underground Coal Mine Concrete Mixer Truck WC4BJ(A), MACHMALL

Engineering & Construction Machinery > Concrete Machinery > Concrete Truck Mixer

Brochure

EMSUNTOUR 4 Cbm Underground Coal Mine Concrete Mixer Truck WC4BJ(A)

View All >

Model： WC4BJ(A)

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

EMSUNTOUR 4 Cbm Underground Coal Mine Concrete Mixer Truck WC4BJ(A)

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

WC4BJ(A)

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

WC4BJ(A)

6,890*2,000*2,050mm

9,600kg

100,000

WC4BJ(A)

EMSUNTOUR

China

+ Add a Product

Summary

Certification:MA
Dimension(L*W*H):6,890*2,000*2,050mm
Weight:9,600kg
Power(W):100,000
Model Number:WC4BJ(A)
Brand Name:EMSUNTOUR
Place of Origin:China

Specifications

Weight:10500.000kg
Condition:New
Moving Type:Other
Mixing Capacity:4m³
Feeding Speed:≥2.7m³/min
Inner turning radius:3,250mm
Outer turning radius:6,950mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Product Description

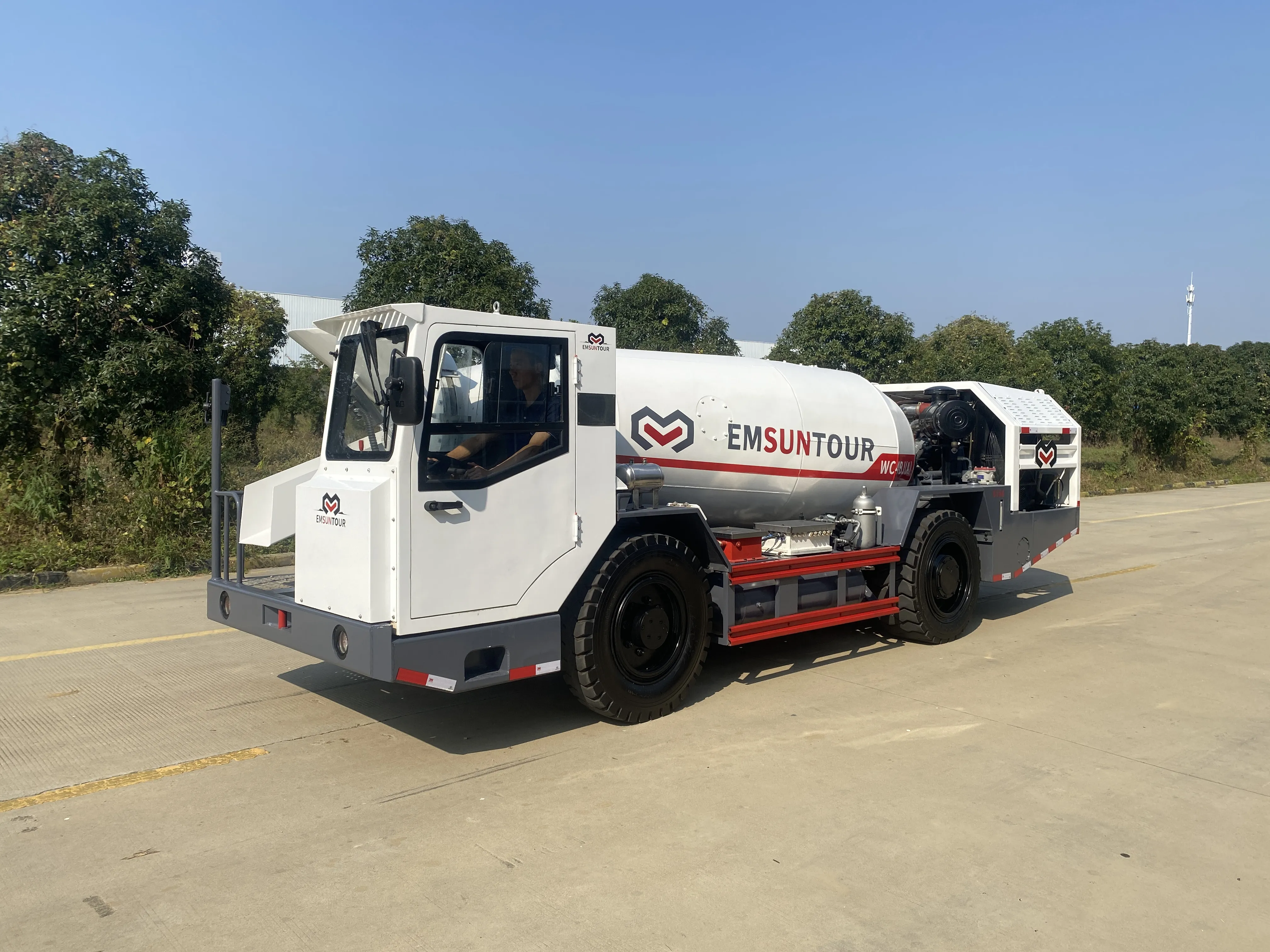

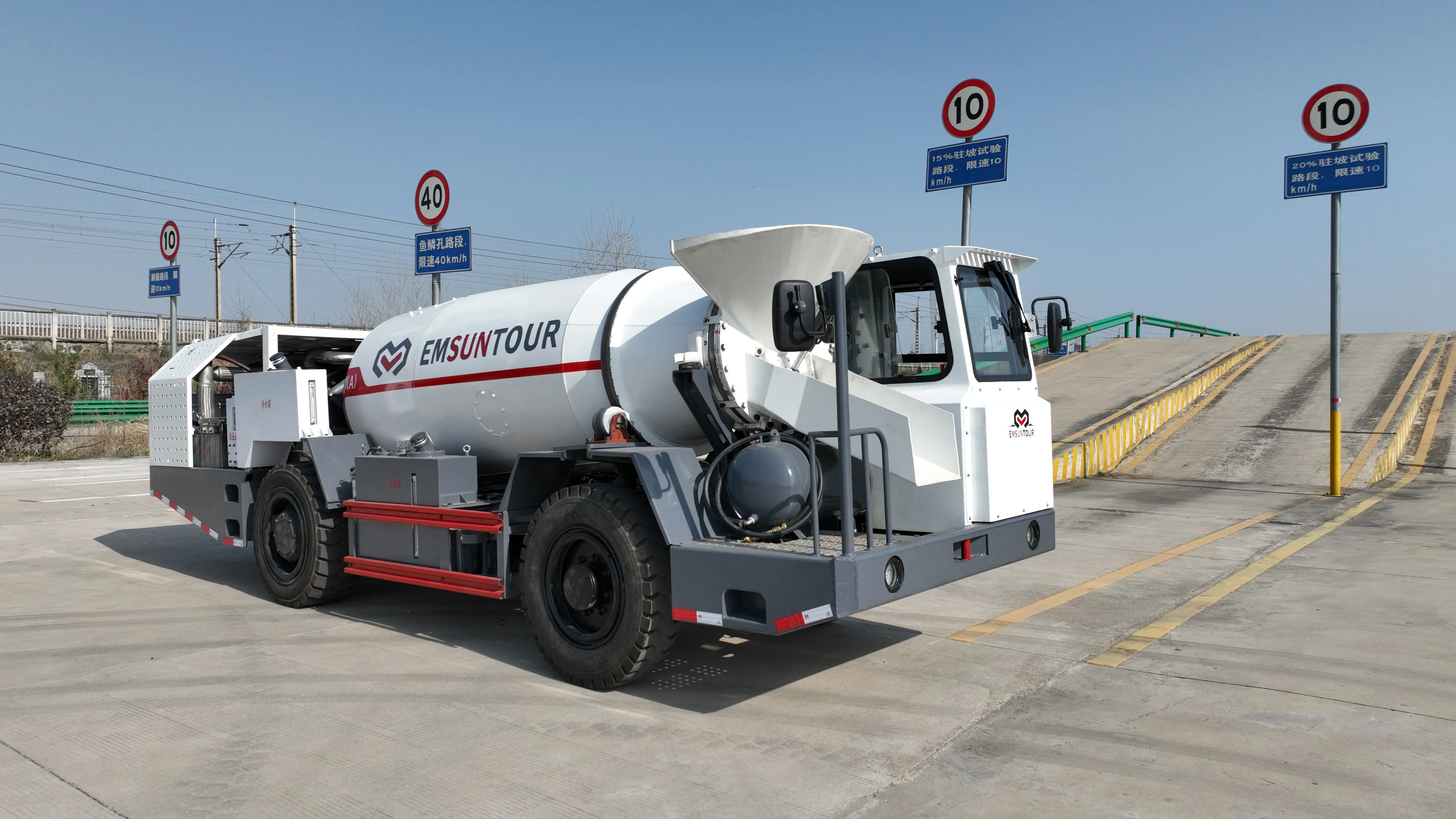

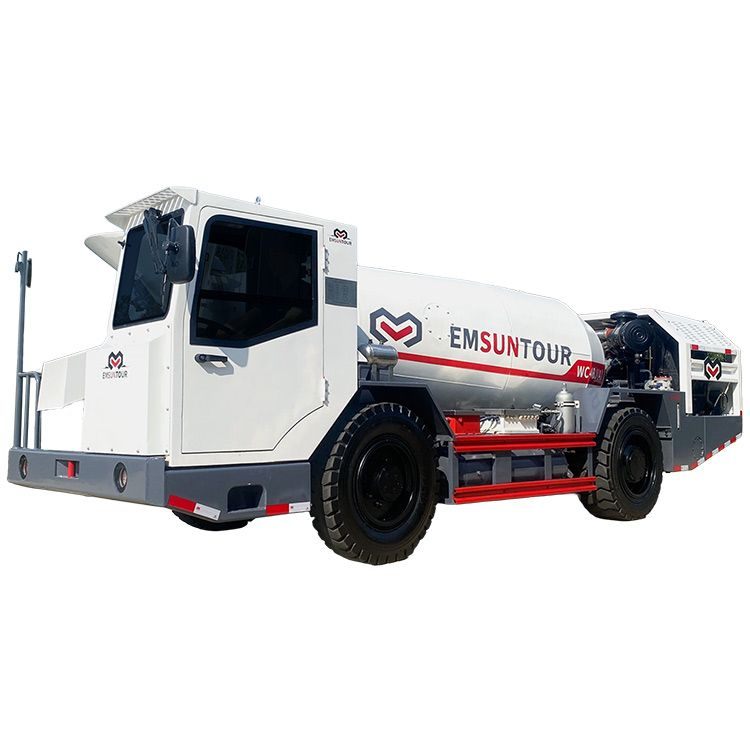

EMSUNTOUR explosion-proof diesel concrete mixer truck WC4BJ(A) is specifically designed for the concrete transportation needs of underground coal mines. It can be directly loaded at ground-level or underground concrete stations and transported directly to the point of use underground, eliminating the need for secondary transfer.

Main Benefits

- The vehicle's core components are sourced from internationally renowned brands, ensuring high-end performance configurations that deliver greater stability and reliability in actual operations.

- WC4BJ (A) has two-wheel drive and four-wheel drive with one-key switching mode, which can easily adapt to the slippery and changeable road conditions underground.

- The front inlet and outlet design facilitates easier single-operator handling.

- The rear-mounted engine placement keeps it distant from concrete contamination, making maintenance more convenient.

- It utilizes a combination of oil and gas springs with leaf springs to enhance driving comfort.

- The continuous rotation of the mixing drum during transportation significantly improves the efficiency and quality of concrete delivery, aiding customers in operating more effectively.

Product	Underground Coal Mine Concrete Mixer Truck WC4BJ(A)
Capacity	4m³
Dimension	6,8902,0002,050mm
Ground Clearence	220mm
Turning Radius	3,250/6,950mm

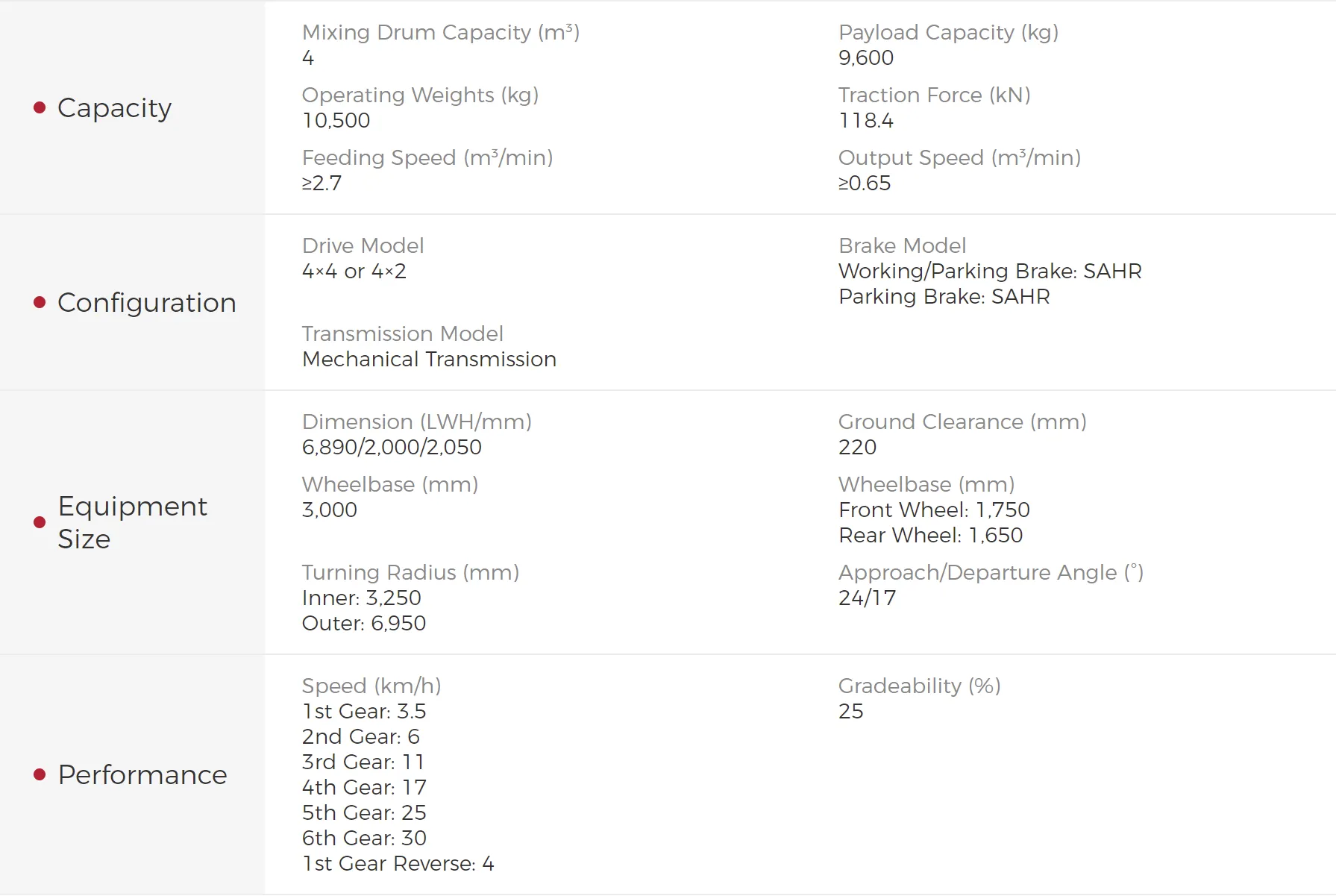

Main Parameters

Company Profile

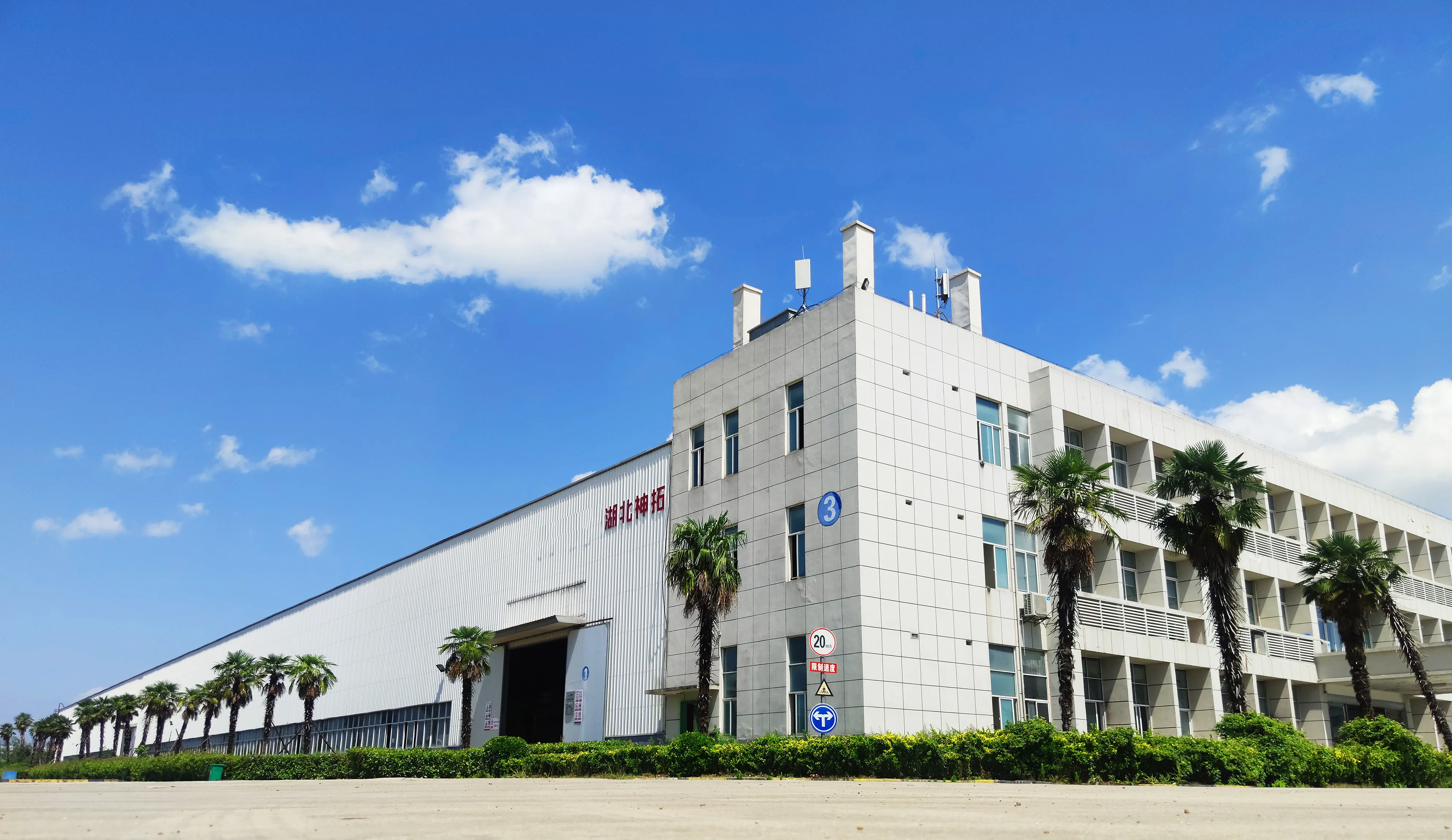

Hubei Shentuo Intelligence Equipment Co., Ltd (referred to as 'EMSUNTOUR')comprises of Hubei Suizhou production factory and Wuhan R&D center. It is a technology-based enterprise focusing on the research and development, production, sales, after-sales, and export of underground equipment for coal mines and metal mines. The products aim at the global market.

EMSUNTOUR is based on scientific and technological innovation, oriented to customer needs, and currently has a new generation of concrete mixer trucks, mining loaders, mine trucks, and other series of diesel and battery models, to adapt to the customer's mining needs in a variety of situations, to enhance the productivity and economic benefits of mining, and strive to improve the security and happiness of workers working underground.

EMSUNTOUR adopts an advanced quality management system to provide top-quality underground equipment; at the same time, EMSUNTOUR adheres to intelligent manufacturing and builds up the manufacturing capacity of underground equipment at the industry-leading level through advanced ERP and informatization system to ensure the delivery cycle. In the future, EMSUNTOUR will continue to be committed to all-around innovation, provide the most intelligent and efficient technology and products for the domestic and international mining industry, and make consistent efforts to promote productivity improvement, industry development, and ESG construction!
